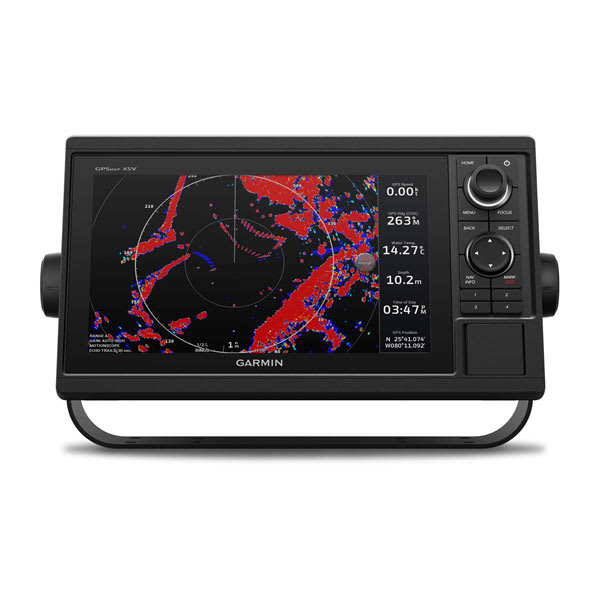

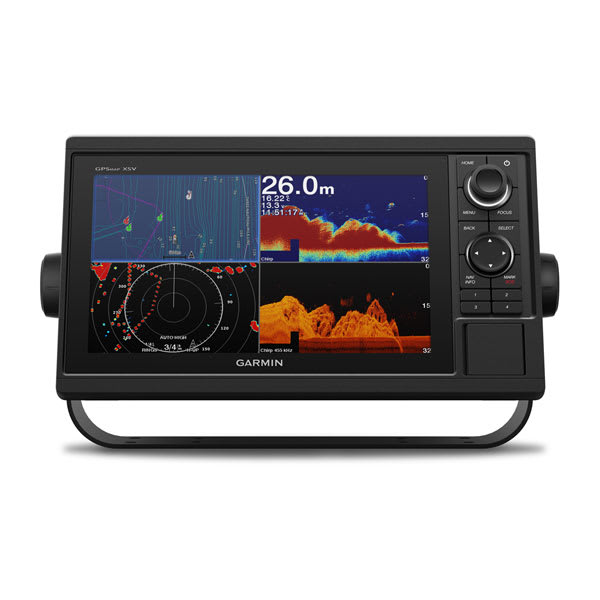

Garmin GPSMAP 1022xsv – Chartplotter without Transducer but with SideVü, ClearVü and Traditional CHIRP Sonar & Worldwide Basemap
Price Match
$2,599.00
Garmin GPSMAP 1022xsv Chartplotter – without Transducer, but with SideVü, ClearVü and Traditional CHIRP Sonar & Worldwide Basemap.
A PREMIUM CHARTPLOTTER FOR THE ADVENTUROUS SPIRIT
These chartplotters feature large, bright screens coupled with quick and easy-to-use keypad interfaces with user-programmable keys and multifunction control knobs to help you navigate with ease.
Get wider viewing angles on a vivid 10″ or 12″ colour display.
These are compatible with our premium maps and charts for the best in Garmin navigation.
Share information among multiple units, thanks to Garmin Marine Network support.
See fluid position and heading changes with update rates of 10 times per second.
Easily transfer waypoints, tracks and routes from your other GPS devices.
See what’s around your boat with built-in sonar capabilities on select models (transducers sold separately).
A feature-rich chartplotter.

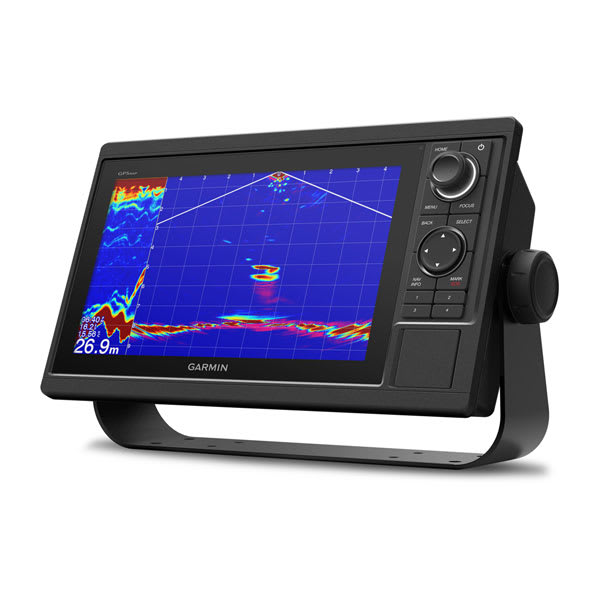

SONAR CAPABLE
The chartplotters include built-in single-channel CHIRP sonar plus CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars with Panoptix™ and LiveScope™ sonar support on select models (transducers sold separately).
BUILT-IN ANT® CONNECTIVITY
Enjoy built-in ANT wireless connectivity directly to your compatible Garmin devices such as quatix® marine watches, gWind™ Wireless 2 transducers , GNX™ Wind marine instruments and wireless remote controls.
CONNECTED ACTIVECAPTAIN® APP
Built in Wi-Fi® technology gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere on your compatible smartphone.
Navigate with ease.
GARMIN SAILASSIST™ FEATURE
Use the polar table to view important data fields to help you trim your sails for maximum speed and efficiency. You can also see laylines, set and drift, true and apparent wind data (sensor sold separately), and more.
CHARTS AND MAPS
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics+™ or premium Garmin Navionics Vision+™ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+™ technology1 and more.
SMOOTH TRACKING
The fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid.
NETWORK CAPABLE
The GPSMAP chartplotters are fully network capable for the Garmin Marine Network and NMEA 2000® networking plus NMEA 0183 technology support.
GPX WAYPOINTS TRANSFER
Easily transfer waypoints, tracks or frequently used routes from other devices via industry standard GPX software formatting.
COMPLETE NETWORK SHARING
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, and Panoptix and LiveScope sonars among multiple units.
ENGINE CONNECTIVITY
Read RPMs, fuel flow, temperature, trim and other important information at a glance. Check with your engine manufacturer for additional hardware needs.
SEND INREACH® DEVICE MESSAGES
Pair your inReach satellite communicator2 to your chartplotter, and type custom messages using your MFD’s on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.
What’s in the box
- GPSMAP 1022xsv chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
View Installation Instructions
View Owner’s Manual
Weight | 1.9 kg |
---|
General |
|
DIMENSION | 12.5″ x 7.3″ x 2.7″ (318 x 185 x 69 mm) |
WEIGHT |
4.1 lbs (1.85 kg) |
WATERPROOF |
IPX7 |
DISPLAY TYPE | WSVGA, NP |
DISPLAY SIZE | 8.8″ x 4.9″; 10.1″ diagonal (22.4 x 12.5 cm; 25.7 cm diagonal) |
DISPLAY RESOLUTION | 1024 x 600 pixels |

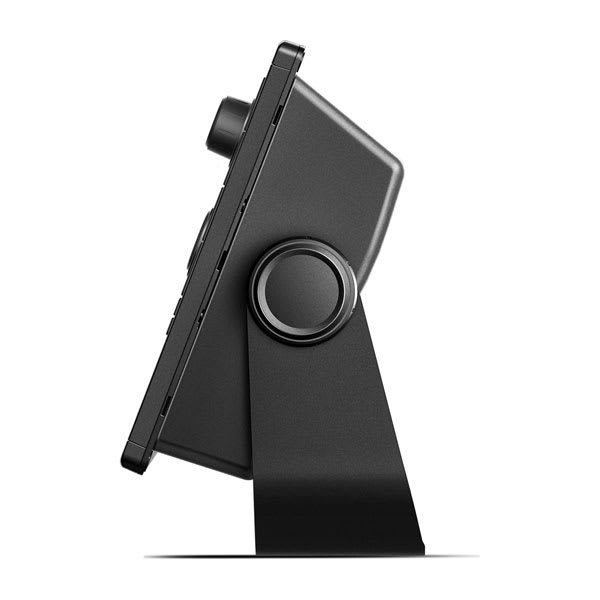

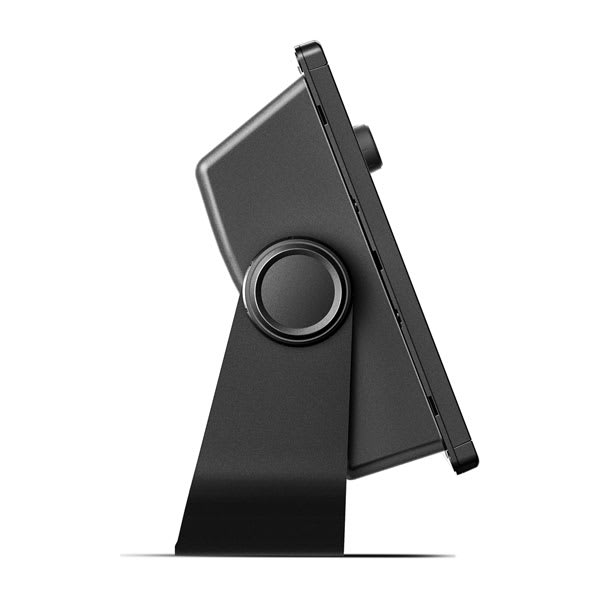

MOUNTING OPTIONS | Bail or flush |
INPUT | Keyed |
Maps & Memory |
|
ACCEPTS DATA CARDS |
2 SD™ cards |
WAYPOINTS |
5000 |
TRACK POINTS | 50,000 |
TRACKS | 50 saved tracks |
NAVIGATION ROUTES | 100 |
Sensors |
|
GPS | ✔ |
GLONASS | ✔ |
HAS BUILT-IN RECEIVER | ✔ |
RECEIVER | ✔ |
NMEA 2000 COMPATIBLE | ✔ |
NMEA 0183 COMPATIBLE | ✔ |
SUPPORTS WAAS | ✔ |
Built-in maps |
|
TIDE TABLES | ✔ |
Optional map support |
|
BLUECHART G3 | ✔ |
BLUECHART G3 VISION | ✔ |
LAKEVÜ G3 | ✔ |
LAKEVÜ G3 ULTRA | ✔ |
GARMIN NAVIONICS+™ | ✔ |
GARMIN NAVIONICS VISION+™ | ✔ |
TOPO | ✔ |
STANDARD MAPPING | ✔ |
GARMIN QUICKDRAW CONTOURS | ✔ |
RASTER CHART SUPPORT | ✔ |
Chartplotter Features |
|
SMART MODE COMPATIBLE | ✔ |
AIS | ✔ |
DSC | ✔ |
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | ✔ |
GSD BLACK BOX SONAR SUPPORT | ✔ |
GCV BLACK BOX SONAR SUPPORT | ✔ |
ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE | ✔ |
GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | ✔ |
WIRELESS REMOTE COMPATIBLE | ✔ |
SAILING FEATURES | ✔ |
Electrical features |
|
POWER INPUT | 10 to 32 Vdc |
TYPICAL CURRENT DRAW AT 12 VDC | 1.9 A |
MAXIMUM CURRENT DRAW AT 12 VDC | 2.7 A |
MAXIMUM POWER USAGE AT 10 VDC | 32.4W |
Sonar Features & Specifications |
|
DISPLAYS SONAR | ✔ |
POWER OUTPUT | 1 kW |
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
CLEARVÜ | Yes with CHIRP (built-in) |
SIDEVÜ | Yes with CHIRP (built-in) |
PANOPTIX™ SONAR | ✔ |
LIVESCOPE | ✔ |

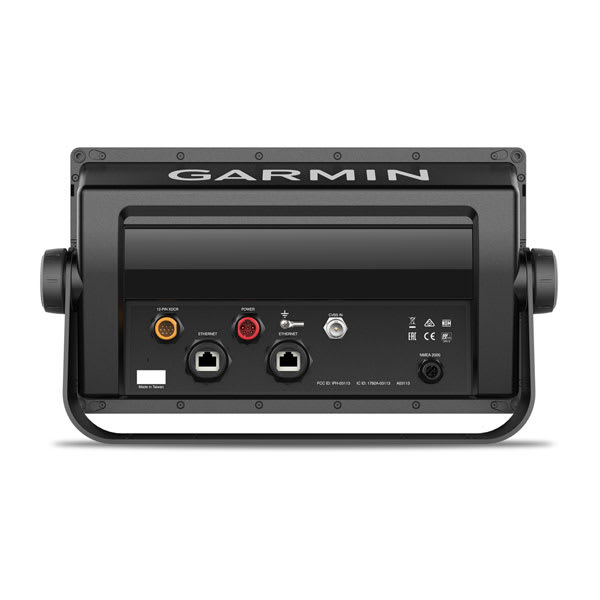

Connections |
|
NMEA 2000® PORTS | 1 |
CONNECTIONS NMEA0183 INPUT PORTS | 1 |
NMEA 0183 INPUT (TX) PORTS | 1 |
VIDEO INPUT PORTS |
1 BNC |
GARMIN MARINE NETWORK PORTS |
2 |
BLUETOOTH® PAIRING | ✔ |
ANT+ (CONNECTIVITY) | ✔ |
GARMIN WI-FI NETWORK (LOCAL CONNECTION) | ✔ |
