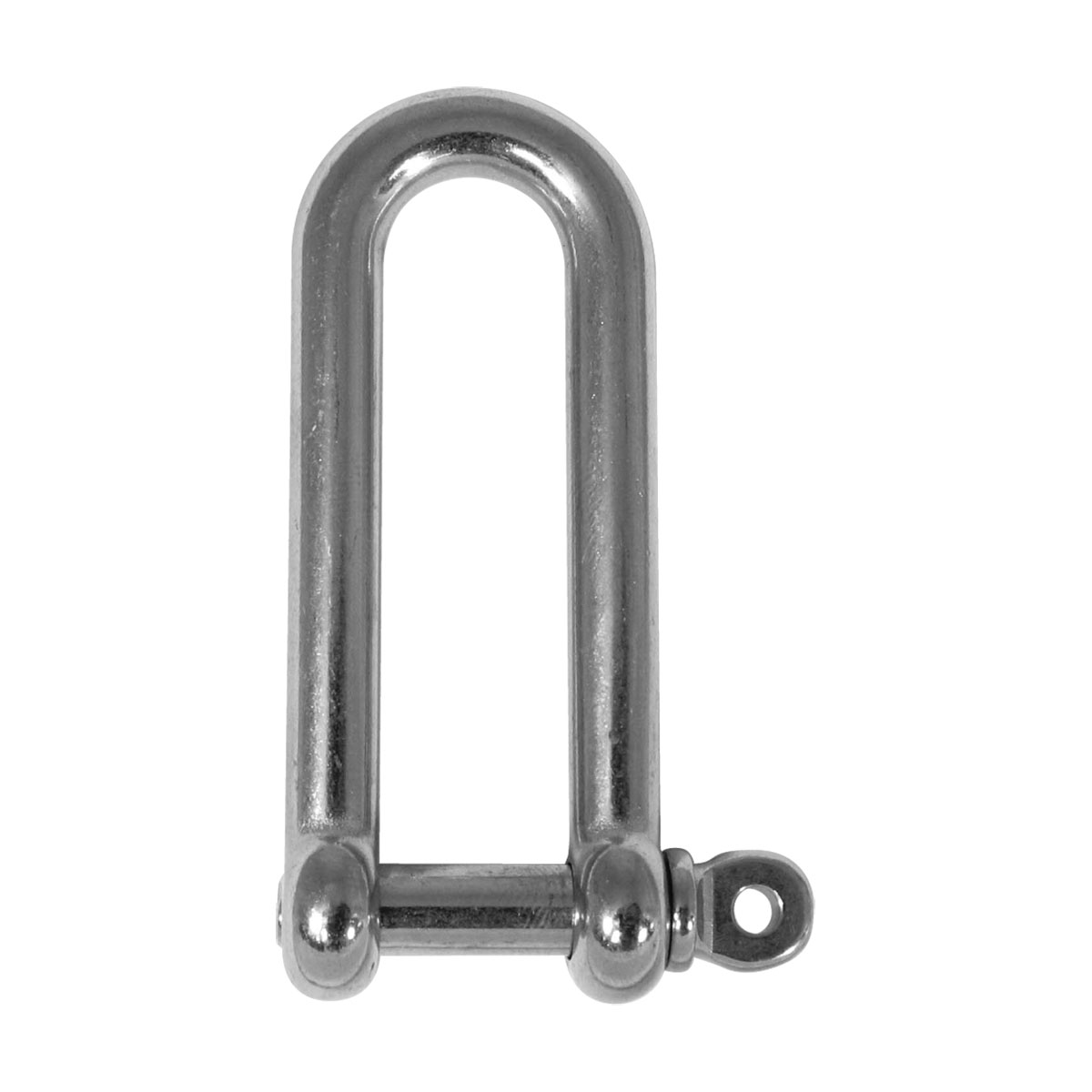

316 grade stainless steel long ‘D’ shackle with stepped, screw in captive pin that prevents loss. Pins drilled for security tie wire. Pin diameter slightly less than bale diameter.
| BLA CODE | PACK QTY | PIN. DIA MM | A MM | B MM | BREAKING LOAD KG |
| BLA-161082 | 1 | 5 | 38 | 10 | 1250 |
| BLA-161084 | 1 | 6 | 45 | 12 | 1800 |
| BLA-161086 | 1 | 8 | 60 | 17 | 2750 |
| BLA-161088 | 1 | 10 | 75 | 20 | 3250 |
| BLA-161090 | 1 | 12 | 90 | 27 | 6400 |
| Pin Dia. | 5mm, 6mm, 8mm, 10mm, 12mm |
|---|
Cast 316 grade stainless steel eye nut (metric thread).
|
BLA CODE
|
A MM
|
B MM
|
C MM
|
THREAD
|
BREAK LOAD KG
|
|---|---|---|---|---|---|
BLA-165382 |
31 | 26 | 16 | M6 | 1100 |
BLA-165384 |
39 | 31 | 20 | M8 | 1300 |
BLA-165386 |
48 | 41 | 25 | M10 | 2600 |
BLA-165388 |
60 | 50 | 30 | M12 | 3400 |
BLA-165392 |
70 | 59 | 34 | M16 | 8000 |
• The Ultimate alternative to conventional shackles.
• Designed to be safe, lightweight & easy to use.
• Made from UHWMPE 12 strand synthetic rope.
• Light weight.
• Maximum strength to weight ratio.
• Easy to attach and remove.
• Floats.
• Soft – No heavy metal parts, less damage.
• No removable pins to drop or lose.
• Natural articulation.
• Will not corrode or rust.
• Low maintenance.
| PART NUMBER | LENGTH | DIAMETER | LOOPED LENGTH | LOOP DIAMETER | BR/ST |
SAW-48500 |
550mm | 6mm | 285mm | 150mm | 4900kg |
SAW-48502 |
600mm | 8mm | 325mm | 150mm | 7900kg |
SAW-48504 |
630mm | 10mm | 325mm | 150mm | 9600kg |
SAW-48506 |
620mm | 12mm | 320mm | 150mm | 14000kg |
SAW-48508 |
680mm | 14mm | 370mm | 150mm | 23750kg |
316 grade stainless steel ‘D’ shackle. Screw in pin with countersunk slotted head.
|
BLA CODE
|
PACK QTY
|
PIN. DIA MM
|
A MM
|
B MM
|
BREAKING LOAD KG
|
|---|---|---|---|---|---|
BLA-161032 |
1 | 4 | 14 | 8 | 550 |
BLA-161032P |
1 | 4 | 14 | 8 | 550 |
BLA-161036 |
1 | 5 | 18 | 10 | 1000 |
BLA-161036P |
1 | 5 | 18 | 10 | 1000 |
BLA-161038 |
1 | 6 | 21 | 12 | 1700 |
BLA-161040 |
1 | 8 | 28 | 16 | 2000 |
BLA-161042 |
1 | 10 | 35 | 20 | 2500 |
Quality heavy duty tested bow shackle. Suitable for a wide range of applications. Features hot dipped galvanising for the body and pin, creating superior corrosion resistance and longevity, plus large tie off hole for pin security making them ideal for use in harsh marine environments. Manufactured to meet or exceed current American standard RR-C-271 Type IV Grade A. These specifications ensure that each shackle performs to the load rated and proof tested weights as stated with a safety factor of 6 to 1. Conveniently stamped with working load limit and bail size.
|
BLA CODE
|
BAIL SIZE MM
|
PIN DIA. MM
|
WORKING LOAD KG
|
BREAKING LOAD KG
|
D1 MM
|
E THREAD MM
|
W MM
|
B MM
|
L MM
|
|---|---|---|---|---|---|---|---|---|---|
143072 |
6 | 8 | 500 | 3000 | 4.8 | 5/16 – 18UNC | 11.9 | 19.8 | 28.7 |
| 143074 |
8 | 10 | 750 | 4500 | 5.6 | 3/8 – 16UNC | 13.5 | 21.3 | 31 |
| 143076 |
10 | 11 | 1000 | 6000 | 6.4 | 7/16 – 14UNC | 16.8 | 26.2 | 36.3 |
| 143078 |
13 | 16 | 2000 | 12000 | 9.7 | 5/8 – 11UNC | 20.6 | 33.3 | 47.8 |
| 143080 |
16 | 19 | 3250 | 19500 | 11.2 | 3/4 – 10UNC | 26.9 | 42.9 | 60.5 |
| 143082 |
19 | 22 | 4750 | 28500 | 12.7 | 7/8 – 9UNC | 31.8 | 50.8 | 71.4 |
| 143084 |
22 | 25 | 6500 | 39000 | 12.7 | 1 – 8UNC | 36.6 | 57.9 | 84.1 |
| 143086 |
25 | 29 | 8500 | 51000 | 14.2 | 1 1/8 – 7UNC | 42.9 | 68.3 | 95.3 |
