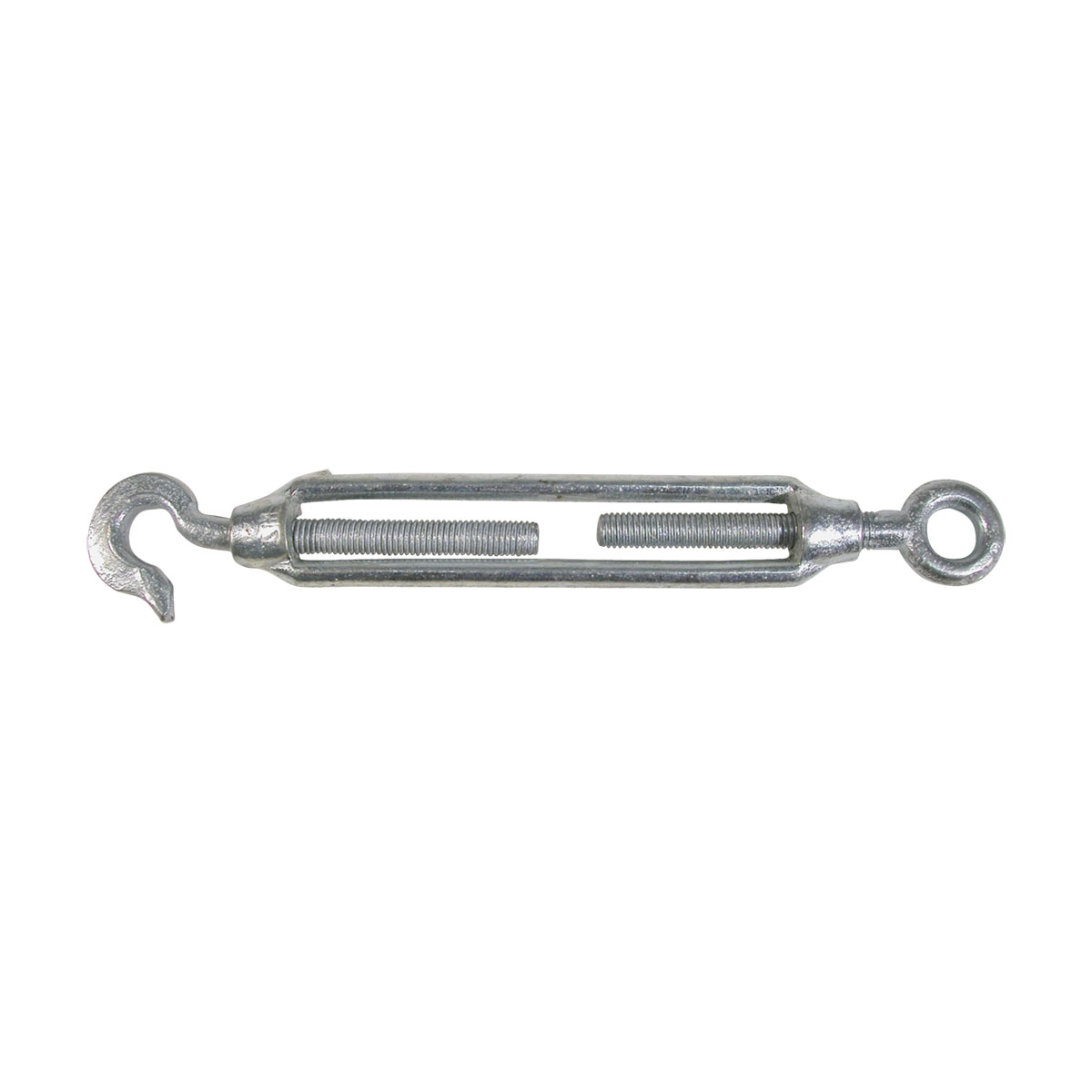

BLA Open Body Turnbuckles – Galvanised Hook and Eye
Hook and eye, die cast electro galvanised open body. Commercial grade. Suitable for light weight applications in tensioning systems.
$2.90 – $15.90
CompareHook and eye, die cast electro galvanised open body. Commercial grade. Suitable for light weight applications in tensioning systems.
BLA CODE
|
THREAD
|
A MM
|
B MM
|
C MM
|
---|---|---|---|---|
BLA-163202 | M5 | 100-150 | 8 | 6 |
BLA-163204 | M6 | 130-205 | 10 | 8 |
BLA-163206 | M8 | 165-250 | 12 | 10 |
BLA-163208 | M10 | 205-320 | 15 | 11 |
BLA-163240 | M12 | 260-425 | 16 | 13 |
Thread Size | M5, M6, M8, M10, M12 |
---|
Quality heavy duty tested ‘D’ shackle. Suitable for a wide range of applications. Features hot dipped galvanising for the body and pin, creating superior corrosion resistance and longevity, plus large tie off hole for pin security making them ideal for use in harsh marine environments. Manufactured to meet or exceed current American standard RR-C-271 Type IV Grade A. These specifications ensure that each shackle performs to the load rated and proof tested weights as stated with a safety factor of 6 to 1. Conveniently stamped with working load limit and bail size.
BLA CODE
|
BAIL SIZE MM
|
PIN DIA. MM
|
WORKING LOAD KG
|
BREAKING LOADK G
|
D1 MM
|
E THREAD MM
|
W MM
|
W1 MM
|
L MM
|
---|---|---|---|---|---|---|---|---|---|
143022 | 6 | 8 | 500 | 3000 | 4.8 | 5/16 – 18UNC | 11.9 | 24.1 | 35.1 |
143024 | 8 | 10 | 750 | 4500 | 5.6 | 3/8 16UNC | 13.5 | 29.5 | 42.2 |
143026 | 10 | 11 | 1000 | 6000 | 6.4 | 7/16 14UNC | 16.8 | 35.8 | 51.6 |
143028 | 13 | 16 | 2000 | 12000 | 9.7 | 5/8 11UNC | 20.6 | 46 | 68.3 |
143030 | 16 | 19 | 3250 | 19500 | 11.2 | 3/4 10UNC | 26.9 | 58.7 | 84.8 |
143032 | 19 | 22 | 4750 | 28500 | 12.7 | 7/8 9UNC | 31.8 | 69.9 | 100.8 |
143036 | 25 | 29 | 8500 | 51000 | 14.2 | 1 1/8 7UNC | 42.9 | 93.7 | 128.8 |
• The Ultimate alternative to conventional shackles.
• Designed to be safe, lightweight & easy to use.
• Made from UHWMPE 12 strand synthetic rope.
• Light weight.
• Maximum strength to weight ratio.
• Easy to attach and remove.
• Floats.
• Soft – No heavy metal parts, less damage.
• No removable pins to drop or lose.
• Natural articulation.
• Will not corrode or rust.
• Low maintenance.
PART NUMBER | LENGTH | DIAMETER | LOOPED LENGTH | LOOP DIAMETER | BR/ST |
SAW-48500 | 550mm | 6mm | 285mm | 150mm | 4900kg |
SAW-48502 | 600mm | 8mm | 325mm | 150mm | 7900kg |
SAW-48504 | 630mm | 10mm | 325mm | 150mm | 9600kg |
SAW-48506 | 620mm | 12mm | 320mm | 150mm | 14000kg |
SAW-48508 | 680mm | 14mm | 370mm | 150mm | 23750kg |
316 grade stainless steel ‘D’ shackle. Screw in pin with countersunk slotted head.
BLA CODE
|
PACK QTY
|
PIN. DIA MM
|
A MM
|
B MM
|
BREAKING LOAD KG
|
---|---|---|---|---|---|
BLA-161032 | 1 | 4 | 14 | 8 | 550 |
BLA-161032P | 1 | 4 | 14 | 8 | 550 |
BLA-161036 | 1 | 5 | 18 | 10 | 1000 |
BLA-161036P | 1 | 5 | 18 | 10 | 1000 |
BLA-161038 | 1 | 6 | 21 | 12 | 1700 |
BLA-161040 | 1 | 8 | 28 | 16 | 2000 |
BLA-161042 | 1 | 10 | 35 | 20 | 2500 |
316 grade stainless steel. Stepped shank provides bearing surface for the curved top plate. Backing plate and nuts included.
BLA CODE
|
A MM
|
B MM
|
C MM
|
D MM
|
THREAD
|
---|---|---|---|---|---|
BLA-165013 | 10 | 76 | 35 | 25 | M8 |
BLA-165014 | 10 | 90 | 50 | 25 | M8 |
BLA-165016 | 10 | 115 | 75 | 25 | M8 |
BLA-165017 | 10 | 140 | 100 | 25 | M8 |
