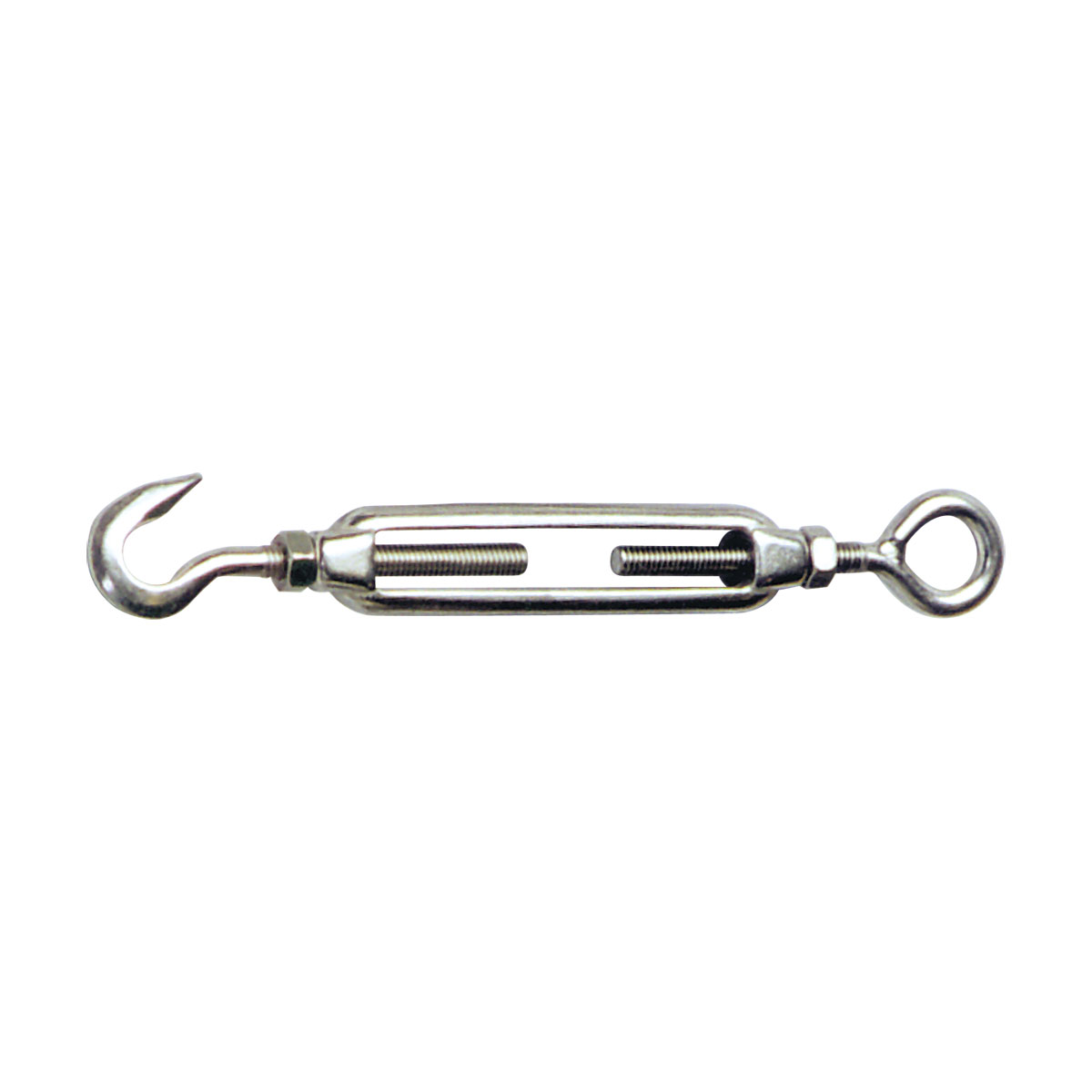

BLA Open Body Turnbuckles – 316 Grade Stainless Steel Hook and Eye
Hook and eye, 316 grade cast stainless steel open body. Forged stainless steel hook one end, rolled and welded stainless steel eye the other end.
|
BLA CODE
|
THREAD
|
A MM
|
B MM
|
C MM
|
BREAKING LOAD KG
|
|---|---|---|---|---|---|
BLA-163082 |
M4 | 100-145 | 8 | 8 | 100 |
BLA-163084 |
M5 | 120-170 | 10 | 9 | 130 |
BLA-163086 |
M6 | 150-220 | 12 | 10 | 350 |
BLA-163088 |
M8 | 200-290 | 13 | 10 | 650 |
BLA-163090 |
M10 | 240-360 | 16 | 12 | 800 |
BLA-163092 |
M12 | 305-475 | 19 | 16 | 1400 |
