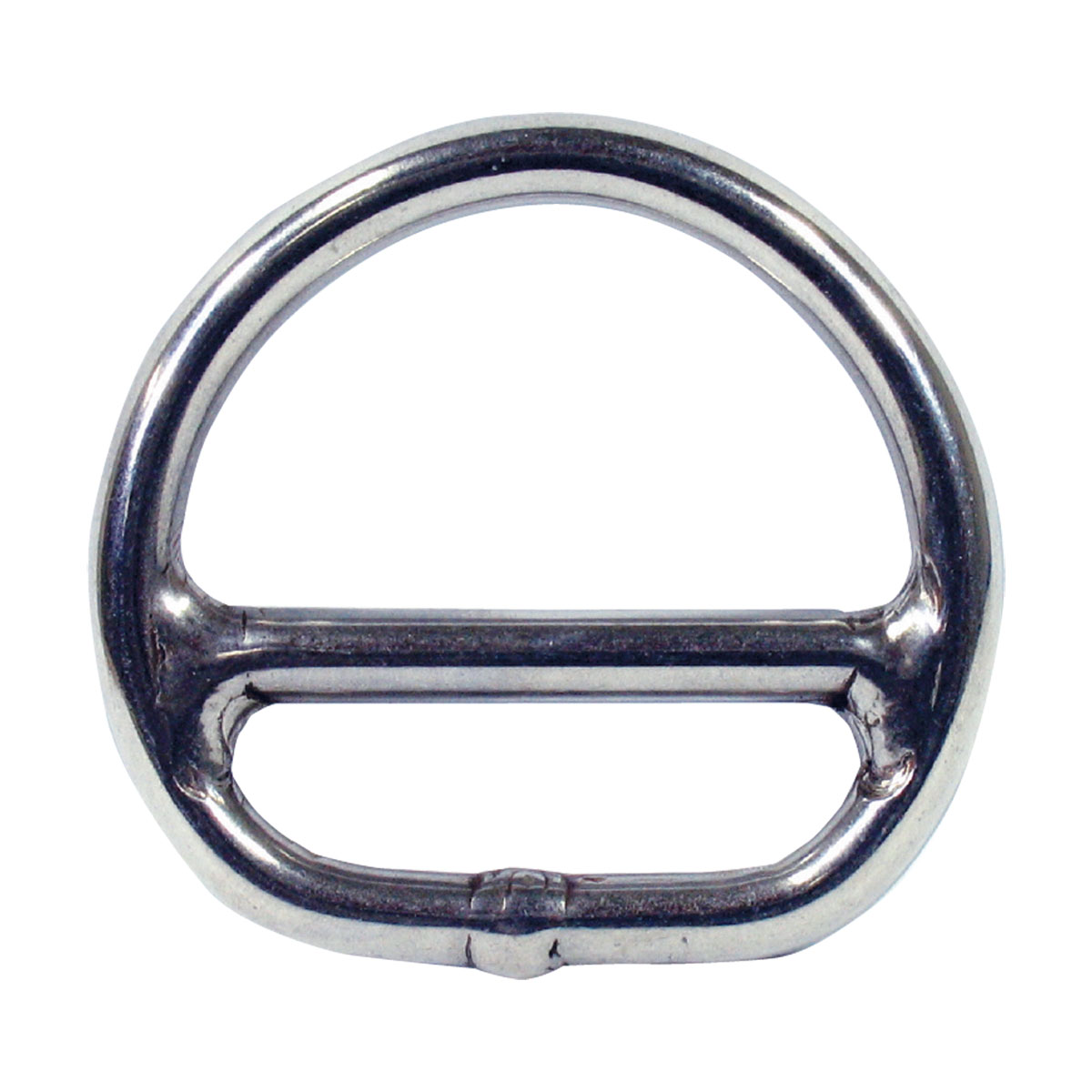

Polished 304 grade stainless steel welded clew ring, primarily for use in sail making, sun shades and for general webbing use.
|
BLA CODE
|
A MM
|
B MM
|
C MM
|
BREAK LOAD KG
|
|---|---|---|---|---|
BLA-165248 |
45 | 6 | 52 | 1800 |
BLA-165250 |
45 | 8 | 58 | 2800 |
| Thickness (b) | 6mm, 8mm |
|---|
Polished 304 grade stainless steel welded ëDí ring. Ideal for use with webbing.
|
BLA CODE
|
A MM
|
B MM
|
C MM
|
|---|---|---|---|
BLA-165224 |
4 | 30 | 25 |
BLA-165225 |
5 | 31 | 25 |
BLA-165226 |
5 | 55 | 50 |
BLA-165228 |
6 | 47 | 40 |
BLA-165232 |
6 | 60 | 50 |
BLA-165240 |
8 | 60 | 50 |
Prevents chains twisting on permanent moorings and other similar applications. Not rated for lifting purposes.
|
BLA CODE
|
QTY
|
NORMAL SIZE MM
|
NORMAL SIZE IN
|
|---|---|---|---|
143106 |
1 | 6 | 1/4 |
| 143106B | 100 | 6 | 1/4 |
143108 |
1 | 8 | 5/16 |
| 143108B | 100 | 8 | 5/16 |
143110 |
1 | 10 | 3/8 |
| 143110B | 50 | 10 | 3/8 |
143113 |
1 | 13 | 1/2 |
| 143113B | 50 | 13 | 1/2 |
143120 |
1 | 19 | 3/4 |
| 143120B | 25 | 19 | 3/4 |
| Part No. | SAW-130082 | SAW-130083 |
| Weight | 2.78kg | 3.75kg |
| Pin Dia. | 29.0mm | 32.0mm |
| Body Dia. | 25.0mm | 29.0mm |
| A | 95.0mm | 108.0mm |
| B | 43.0mm | 46.0mm |
| C | 68.0mm | 74.0mm |
| D | 60.0mm | 67.0mm |
| WLL | 8.5T | 9.5T |
| Pin | Safety Pin | Safety Pin |
| Note | Pin colours may vary. | Pin colours may vary. |
Galvanised bow shackles in a range of sizes. Ideal for anchoring, rigging and other applications.
| PART NUMBER | PIN DIAMETER | INTERNAL LENGTH (A) | OPENING WIDTH (B) | INTERNAL WIDTH (C) | BODY DIAMETER (∅) | |
|---|---|---|---|---|---|---|
SAW-110028 |
5mm | 24.5mm | 11.2mm | 16.9mm | 4.9mm | |
| SAW-110030 | 5.6mm | 26.6mm | 12.8mm | 18.9mm | 5.6mm | |
| SAW-110032 | 7mm | 31.8mm | 17.5mm | 23.1mm | 7.0mm | |
| SAW-110034 | 8.9mm | 36.3mm | 20.0mm | 29.2mm | 8.6mm | |
| SAW-110036 | 11.4mm | 45.0mm | 26.0mm | 34.9mm | 11.2mm | |
| SAW-110038 | 15.5mm | 63.6mm | 32.1mm | 47.7mm | 14.9mm | |
| SAW-110040 | 18.9mm | 74.8mm | 38.1mm | 59.2mm | 18.3mm | |
| SAW-110041 | 21.6mm | 86.4mm | 46.5mm | 67.2mm | 20.3mm | |
| SAW-110042 | 24.2mm | 109.6mm | 52.1mm | 82.4mm | 23.6mm |
