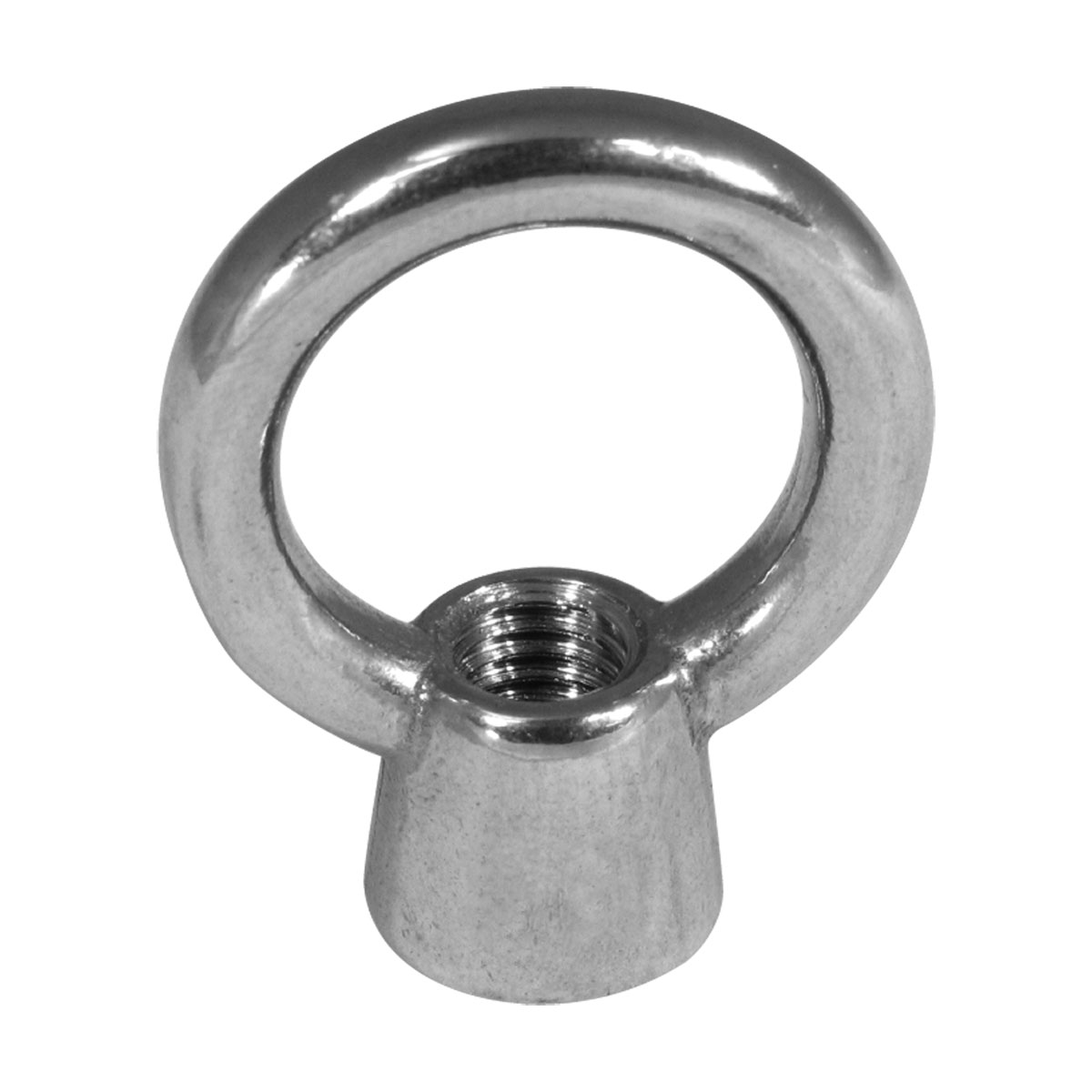

BLA Eye Nuts – 316 Grade Stainless Steel

Related products

• Rigging & Architectural

  BLA Open Body Turnbuckles – Galvanised Hook and Eye



  Rigging & Architectural

  BLA Open Body Turnbuckles – Galvanised Hook and Eye

  0 out of 5

  (0)

  BLA Open Body Turnbuckles – Galvanised Hook and Eye

  Hook and eye, die cast electro galvanised open body. Commercial grade. Suitable for light weight applications in tensioning systems.

  BLA CODE	THREAD	A MM	B MM	C MM
  BLA-163202	M5	100-150	8	6
  BLA-163204	M6	130-205	10	8
  BLA-163206	M8	165-250	12	10
  BLA-163208	M10	205-320	15	11
  BLA-163240	M12	260-425	16	13



  SKU: BLA-163202, BLA-163204, BLA-163206, BLA-163208, BLA-163240

  $2.90 – $15.90

  Select options

  Add to wishlist

  Compare
• Rigging & Architectural

  BLA U Bolts – 304 Grade Stainless Steel



  Rigging & Architectural

  BLA U Bolts – 304 Grade Stainless Steel

  0 out of 5

  (0)

  BLA U Bolts – Stainless Steel

  304 grade stainless steel ‘U’ bolts. Crimped top plate stops. Supplied with top plate, washers and nuts.

  BLA CODE	A MM	B MM	C MM	D MM	THREAD
  BLA-165004	5	90	54	30	M6
  BLA-165006	7	80	47	27	M8
  BLA-165008	7	100	60	28	M8
  BLA-165010	9	130	74	42	M10
  BLA-165011	9	130	85	41	M10
  BLA-165012	11	152	80	50	M12



  SKU: BLA-165004, BLA-165006, BLA-165008, BLA-165010, BLA-165011, BLA-165012

  $4.90 – $26.90

  Select options

  Add to wishlist

  Compare
• Rigging & Architectural

  BLA Eye Bolts – 304 Grade Stainless Steel



  Rigging & Architectural

  BLA Eye Bolts – 304 Grade Stainless Steel

  0 out of 5

  (0)

  BLA Eye Bolts – 304 Grade Stainless Steel

  304 grade stainless steel eye bolt with rolled, welded eye. One piece construction, supplied with nut and two washers.

  BLA CODE	A THREAD	B MM	C MM	D MM	BREAK LOAD KG
  BLA-165062	M6	70	45	13	1000
  BLA-165064	M6	90	65	13	1000
  BLA-165066	M6	110	85	13	1000
  BLA-165068	M8	118	85	17	1800
  BLA-165070	M8	137	105	17	1800
  BLA-165071	M10	130	90	21	2400
  BLA-165072	M10	150	110	21	2400
  BLA-165074	M12	135	85	25	3500
  BLA-165075	M12	175	125	25	3500



  SKU: BLA-165062, BLA-165064, BLA-165066, BLA-165068, BLA-165070, BLA-165071, BLA-165072, BLA-165074, BLA-165075

  $2.90 – $15.90

  Select options

  Add to wishlist

  Compare
• Rigging & Architectural

  BLA Bow Shackle – Galvanised



  Rigging & Architectural

  BLA Bow Shackle – Galvanised

  0 out of 5

  (0)

  BLA Bow Shackle – Galvanised

  Galvanised for general applications. Screw collared pin with hole for security tie wire. Not rated for lifting purposes.

  BLA CODE	QTY	PIN DIA MM	PIN DIA. IN
  BLA-143052B10	10	5	3/16
  BLA-143052B	200	5	3/16
  BLA-143054	1	6	1/4
  BLA-143054P2	2	6	1/4
  BLA-143054B10	10	6	1/4
  BLA-143054B50	50	6	1/4
  BLA-143054B	200	6	1/4
  BLA-143056	1	8	5/16
  BLA-143056P2	2	8	5/16
  BLA-143056B10	10	8	5/16
  BLA-143056B50	50	8	5/16
  BLA-143056B	200	8	5/16
  BLA-143058	1	10	3/8
  BLA-143058P	1	10	3/8
  BLA-143058B10	10	10	3/8
  BLA-143058B50	50	10	3/8
  BLA-143058B	200	10	3/8
  BLA-143060	1	13	1/2
  BLA-143060B	100	13	1/2

  ‘B’ – Denotes bulk packed item
  ‘P’ – Denotes packaged item

  SKU: BLA-143052B10, BLA-143052B, BLA-143054, BLA-143054P2, BLA-143054B10, BLA-143054B50, BLA-143054B, BLA-143056, BLA-143056P2, BLA-143056B10, BLA-143056B50, BLA-143056B, BLA-143058, BLA-143058P2, BLA-143058B10, BLA-143058B50, BLA-143058B, BLA-143060, BLA-143060B

  $1.90 – $349.90

  Select options

  Add to wishlist

  Compare
