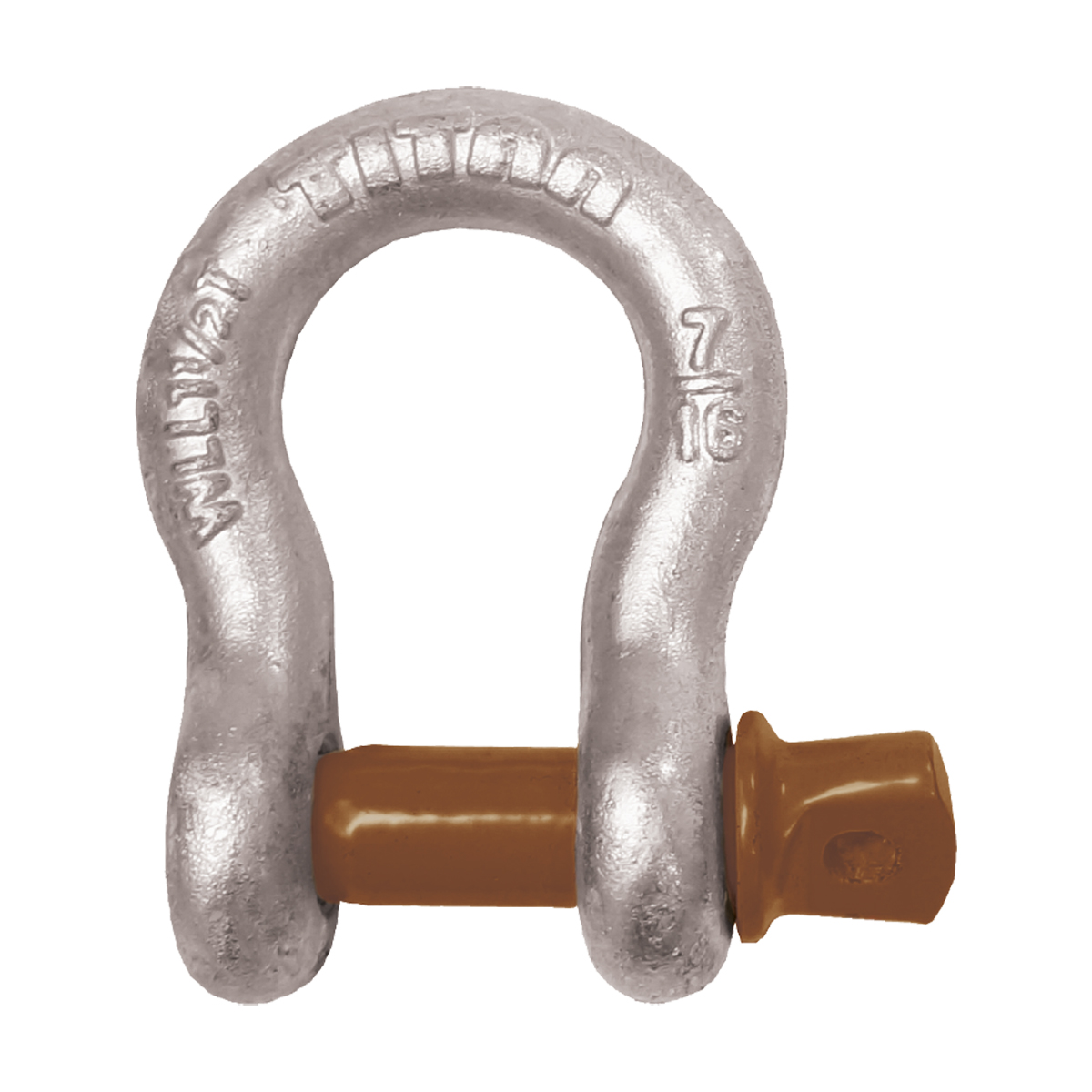

Titan Tested Bow Shackle – Galvanised
Quality heavy duty tested bow shackle. Suitable for a wide range of applications. Features hot dipped galvanising for the body and pin, creating superior corrosion resistance and longevity, plus large tie off hole for pin security making them ideal for use in harsh marine environments. Manufactured to meet or exceed current American standard RR-C-271 Type IV Grade A. These specifications ensure that each shackle performs to the load rated and proof tested weights as stated with a safety factor of 6 to 1. Conveniently stamped with working load limit and bail size.
|
BLA CODE
|
BAIL SIZE MM
|
PIN DIA. MM
|
WORKING LOAD KG
|
BREAKING LOAD KG
|
D1 MM
|
E THREAD MM
|
W MM
|
B MM
|
L MM
|
|---|---|---|---|---|---|---|---|---|---|
143072 |
6 | 8 | 500 | 3000 | 4.8 | 5/16 – 18UNC | 11.9 | 19.8 | 28.7 |
| 143074 |
8 | 10 | 750 | 4500 | 5.6 | 3/8 – 16UNC | 13.5 | 21.3 | 31 |
| 143076 |
10 | 11 | 1000 | 6000 | 6.4 | 7/16 – 14UNC | 16.8 | 26.2 | 36.3 |
| 143078 |
13 | 16 | 2000 | 12000 | 9.7 | 5/8 – 11UNC | 20.6 | 33.3 | 47.8 |
| 143080 |
16 | 19 | 3250 | 19500 | 11.2 | 3/4 – 10UNC | 26.9 | 42.9 | 60.5 |
| 143082 |
19 | 22 | 4750 | 28500 | 12.7 | 7/8 – 9UNC | 31.8 | 50.8 | 71.4 |
| 143084 |
22 | 25 | 6500 | 39000 | 12.7 | 1 – 8UNC | 36.6 | 57.9 | 84.1 |
| 143086 |
25 | 29 | 8500 | 51000 | 14.2 | 1 1/8 – 7UNC | 42.9 | 68.3 | 95.3 |
