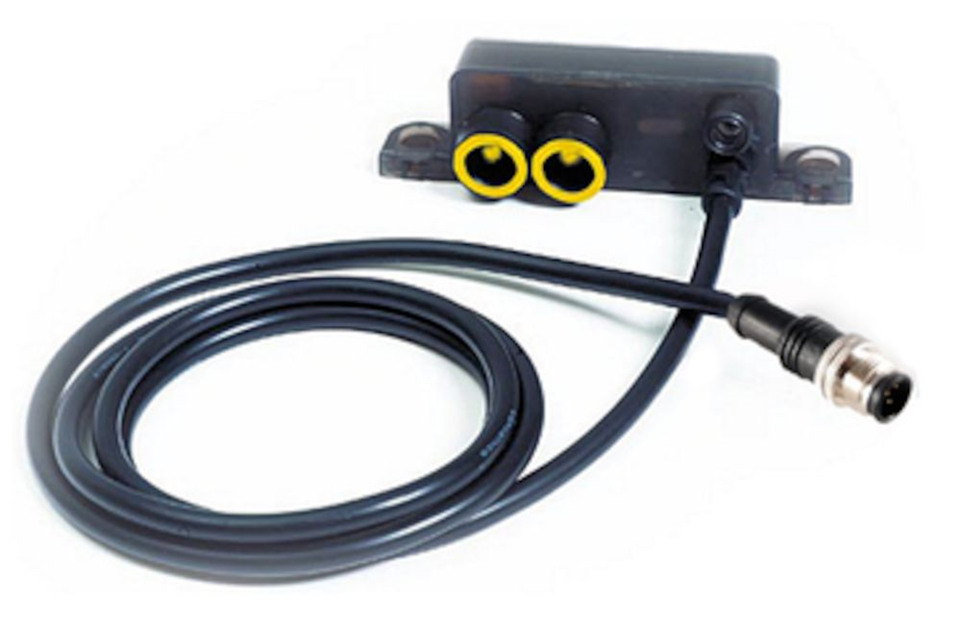

Simrad SG05 Autopilot – Optimus Steering Integration
Price Match
$1,599.00
The Simrad SG05 Autopilot with Optimus Steering integration allows boaters with Optimus EPS power steering or Optimus 360 joystick docking control systems to benefit from the unique features and performance of an award-winning Simrad autopilot. Thanks to the unique integration of the Simrad SG05 with Optimus steering, there is no requirement for an additional hydraulic pump to be installed, saving boaters’ time and money. The Simrad SG05 can be installed in minutes, whether for use on a new boat, or as a retrofit solution.
Approved control system interface that is simple to install, whether retrofitting or equipping a new boat
Control via Simrad AP24, AP28 or OP10 display units for quick and easy use.
No need to install an additional autopilot pump, can be installed in minutes saving costly labour fees.
Make the most of time on the water by using turn patterns such as a U turn, Spiral turn and many more – the SG05 can even initiate a zigzag turn.

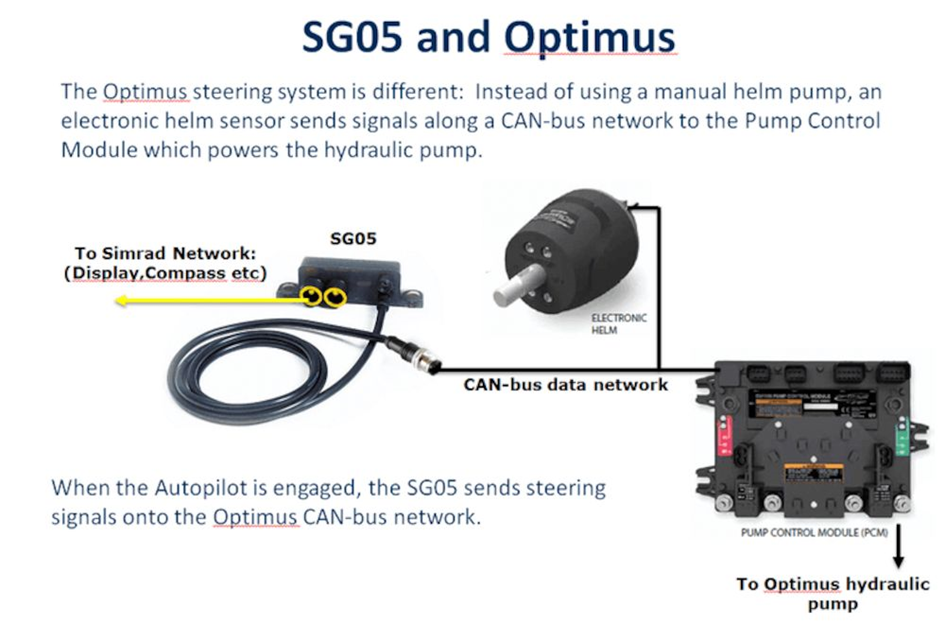

The SG05’s connection to Optimus steering systems via the CAN-bus data network requires no additional hydraulic pump

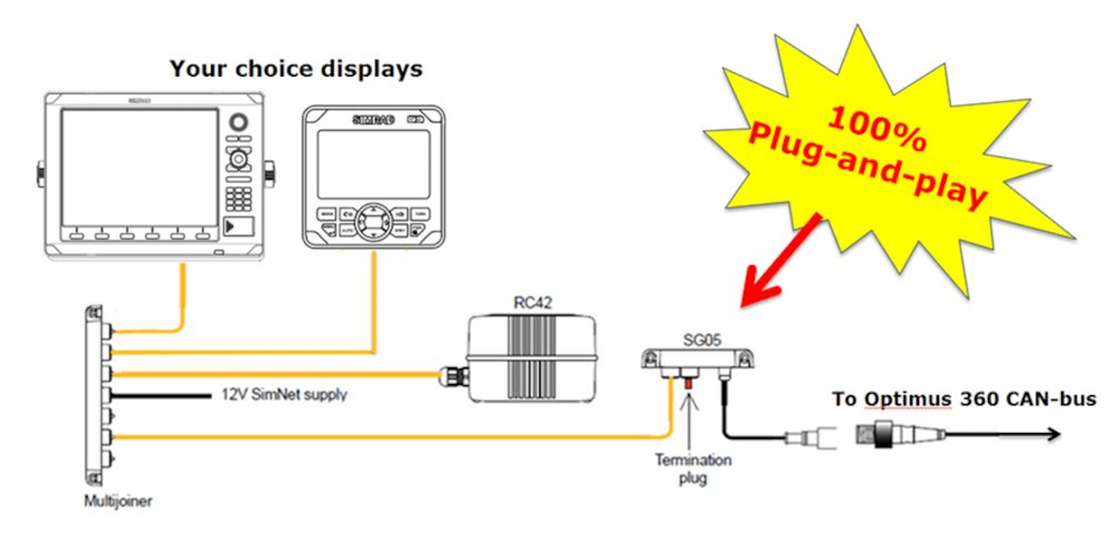

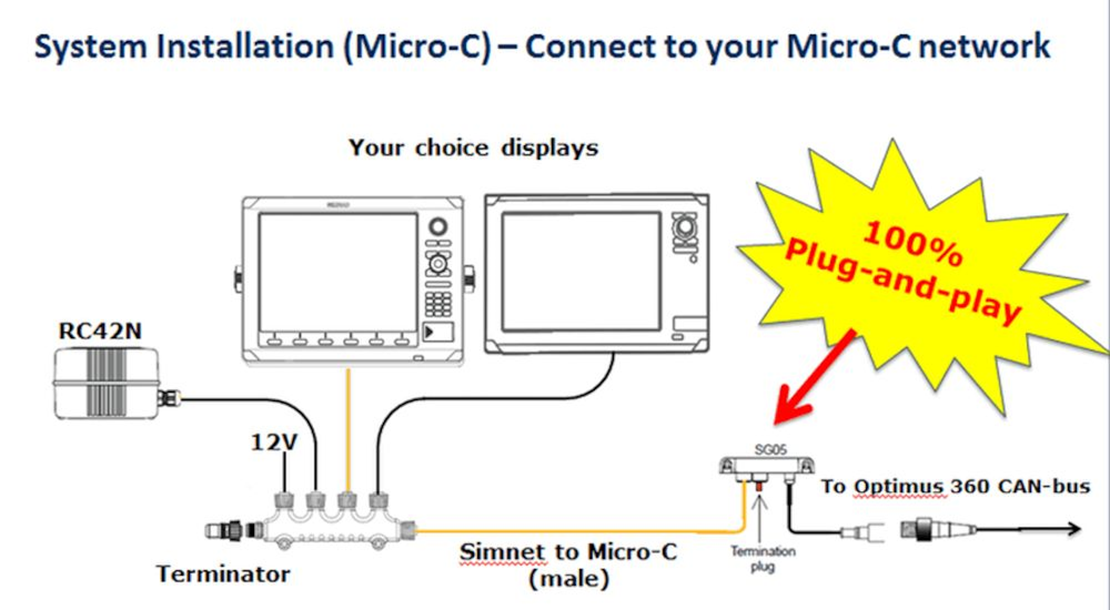

The Simrad SG05 fully integrates with Simrad navigation systems via NSS, NSE and NSO multifunction display ranges.
Weight | 0.1 kg |
---|
Physical |
|
Compass Safe | 0,5m (19,7″) |
Dimensions W x H x D | 94,5 x 26 x 33,2mm (3,72 x 1,02 x 1,31″) |
Mounting Type | Bulkhead |
Weight | 0,1kg (0,2 lbs) |
Electrical |
|
Power Consumption max | 75mA |
Power Consumption typical | 75mA |
Supply Voltage | 12-16V via CAN |
Environment |
|
Operating Temperature Range | 0C to +55C (+32F to +131F) |
Storage Temperature Range | -30C to +70C (-22F to +131F) |
Waterproof Rating | IP44 |
Connectivity |
|
NMEA 2000 Connectivity | 2x SimNet ports, 2 LEN. |
Autopilot |
|
Engine Drive systems integration | CAN |
Other |
|
Warranty Period | 2 years |
