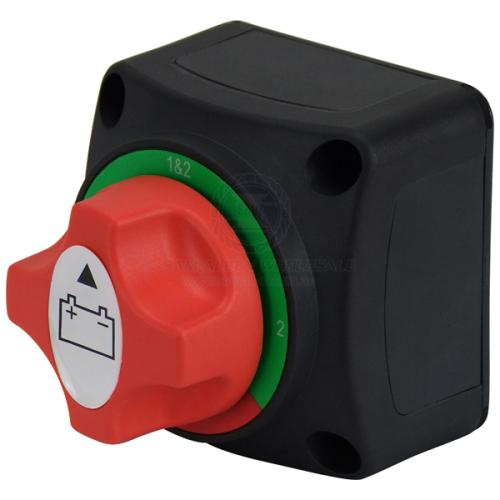

Relaxn Compact Battery Isolator Switch – 4 Position
• Compact battery isolator switch 4 position for dual batteries.
• Surface mounted with slide-out cable entry panels.
• Switching positions (off / 1 / 1&2 / 2).
1000A @ 12V for 30 seconds.
500A @ 24V for 30 seconds.
250A @ 50V for 30 seconds.
300A @ 12V continuous load maximum.
150A @ 24V continuous load maximum.
75A @ 50V continuous load maximum.
• Mounting screws supplied.
PART NUMBER | PACK SIZE | CRANKING RATING | TERMINAL STUD SIZE | MOUNTING HOLES | VOLTS | MAX. CONTINUOUS LOAD | L X W X D |
SAW-530786![]() |

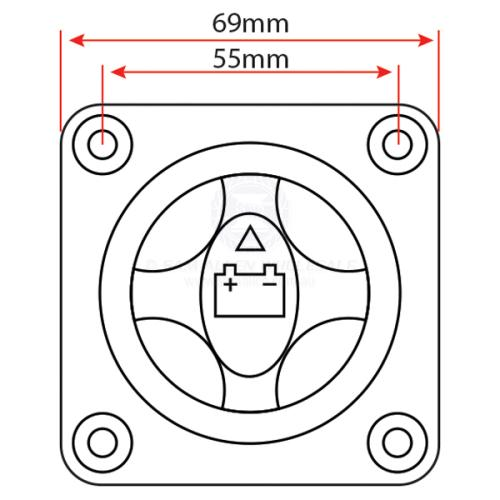

Single Switch | 1000Amps | 5/16″-18UNC | 5mm r/h | 12V/24V | 300Amps | 69mm x 69mm x 74mm |
SAW-530786-10 | 10 Pack Switches | 1000Amps | 5/16″-18UNC | 5mm r/h | 12V/24V | 300Amps | 69mm x 69mm x 74mm |
SAW-530790![]() |
Single Spare Red Actuator | — | — | — | — | — | — |
