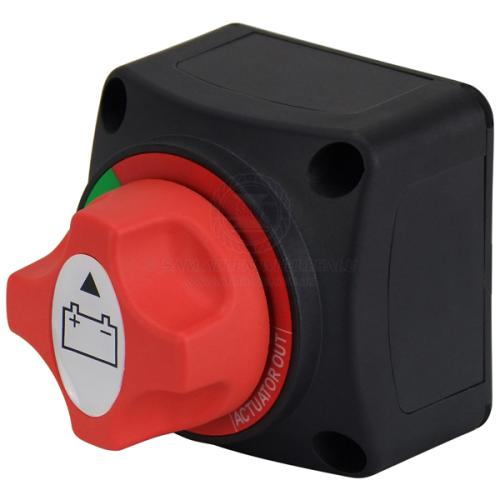

Relaxn Compact Battery Isolator Switch – 2 Position
Price Match
Price range: $4.15 through $374.55
Relaxn Compact Battery Isolator Switch – 2 Position
• Compact battery isolator switch 2 position for single battery.
• Robust weather resistant battery switch, features brass terminals and heavy-duty plastic construction making it ideal for marine and automotive applications.
• Suitable for applications up to 50VDC.
1000A @ 12V for 30 seconds.
500A @ 24V for 30 seconds.
250A @ 50V for 30 seconds.
300A @ 12V continuous load maximum.
150A @ 24V continuous load maximum.
75A @ 50V continuous load maximum.
• Mounting screws supplied.
• 2 position features – On / Off.
| PART NUMBER | PACK SIZE | CRANKING RATING | TERMINAL STUD SIZE | MOUNTING HOLES | VOLTS | MAX. CONTINUOUS LOAD | L X W X D |
SAW-530781 |
Single Switch | 1000Amps | M10 x 19mm | 5mm r/h | 12V/24V | 300Amps | 69mm x 69mm x 74mm |
| SAW-530781-10 | 10 Pack Switches | 1000Amps | M10 x 19mm | 5mm r/h | 12V/24V | 300Amps | 69mm x 69mm x 74mm |
SAW-530790 |
Single Spare Red Actuator | — | — | — | — | — | — |
| Options | Single Battery Isolator Switch, pack of 10 Battery Isolator Switches, Single Spare Red Actuator |
|---|
