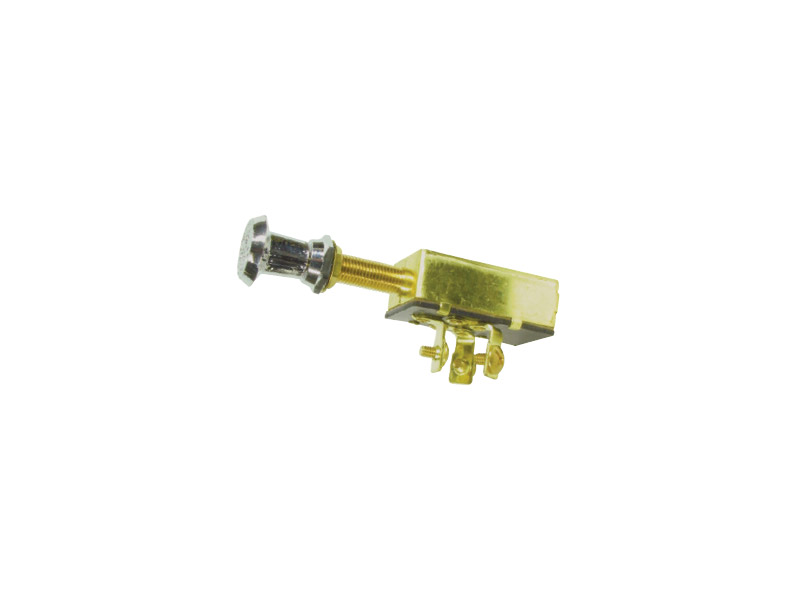

Push-Pull Switch (114206)
Three position push-pull switch with Off/on1/on1&2 positions. Brass with chrome plastic knob. 12 volt, 20 amp.
Features:
BLA Code: 114206
Dash Thickness mm: 20
Stem Dia. mm: 9
Overall Length mm: 98
Width mm: 27
Intrusion mm: 72
You must be logged in to post a review.
Battery Box Large Pre-Wired ‘Power Centre’ (23663)
• Vented battery box made from hi-density reinforced polyethylene which is impervious to battery acids.
• Pre wired “Power Centre” provides lit display of battery charge.
• Moulded carry handle.
• Includes webbing strap and stainless steel fastenings.
• External positive and negative connection terminals, PVC coated.
• 2 x cig socket power outlets.
Features:
Part No.: 23663
Description: Powered Battery Box
Outer Diamensions (mm): 410 x 230 x 300
Inner Diamensions (mm): 340 x 190 x 225
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113152)
Features:
BLA Code: 113152
Circuits: 12
Overall Size wxh mm: 239×200
Cut Out Size wxh mm: 219×180
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 3
10 amp – 4
15 amp – 4
25 amp – 1
• Black UV stabilised PVC housing.
• Supplied with water resistant rubber cap and gasket.
• Flush mounting, can be mounted with or without rectangle housing.
• Relaxn blister packaging for maximum showroom appeal.
• Supplied with water resistant rubber cap.
• Accessory Cig power socket – 12V @ 20A, 24V @ 10A.
• USB – Fast charging at full speed (2.1A for iPad and 1A for iPhone/iPod).
• Compatible with all other smartphones.
• LED power indication.
• Short circuit / overheat protection.
• Supplied with two heat shrinkable spade connectors.
| PART NUMBER | DESCRIPTION | LENGTH | HEIGHT | Width |
SAW-53047 |
Flush Mount Dual Cigarette Lighter | 105mm | 43mm | 60mm |
| SAW-53047-10 | Flush Mount Dual Cigarette Lighter | 105mm | 43mm | 60mm |
SAW-53051 |
Flush Mount Cigarette Lighter + Voltmeter | 105mm | 43mm | 60mm |
| SAW-53051-10 | Flush Mount Cigarette Lighter + Voltmeter | 105mm | 43mm | 60mm |
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113142)
Features:
BLA Code: 113142
Circuits: 8
Overall Size wxh mm: 127×200
Cut Out Size wxh mm: 107×180
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 2
10 amp – 2
15 amp – 3
20 amp – 1
There are no reviews yet.
