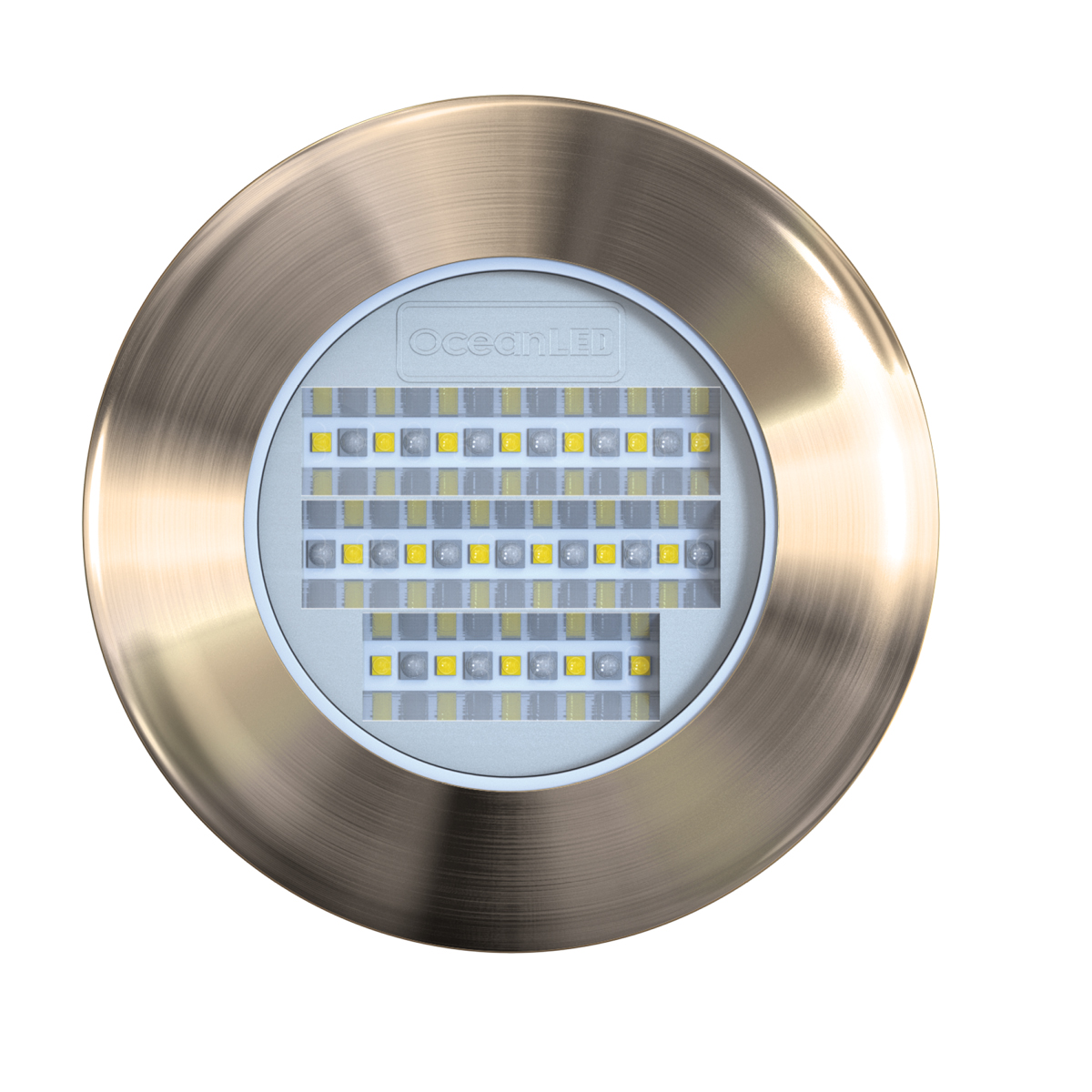

OceanLED Underwater Lights – Explore E6

OceanLED Explore E6 is the ultimate choice flush mount underwater LED light for fishing and cruising in medium & large sized boats. Outputting 11,000 fixture lumens in an exchangeable flush mount, compact design with Dual Blue/White and RGBW light options. Advanced optics, designed exclusively by OceanLED, delivers a genuinely striking 90˚ surface beam angle with a focused 20˚ side beam angle providing greater water penetration and illuminating a greater area in the water.

Features

• 11,000 Fixture Lumens – Best-in-class performance from this ultra-bright light makes it the obvious choice for those who want to be seen
• 90˚ / 20˚ Beam Angle – A true wide-angled, focused beam produces a blade of light under the water that penetrates further
• Compact Design – Less room required inside the vessel
• Plug and Play – Deutsch connectors make installation simpler
• Internal Driver – Quicker to install
• 240V AC Option (100V – 240V AC 50/60Hz)
• Upgrade path from Allure Series – Same hole sizes as Allure 150 / 250
• Easy to clean – Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours of scraping each time you use it
• Fish-Strobe Mode – Exceptionally bright, randomised strobing of the light is proven to attract more fish and catch more bait

BLA CODE	COLOUR	VOLTS	FIXTURE LUMENS	LUMENS	AMPS 12/24	LENGTH MM	WIDTH MM	BOAT SIZE MM
125184	Dual Blue / White	9-32DC 100v-240v AC	11000	19000	7.8A / 4.7A	105	4	Up to 20
125185	Colour Scroll	9-32DC 100v-240v AC	6000	10000	6.75A / 3.2A	105	4	Up to 20

Choose power choice. Chooce either DC or AC power kits

125187 Explore DC power kit
125186 Explore AC power kit

Choose control choice. Choose the method of control for the lights.

(each controller option comes with a control cable and terminator kit)
125189 Control Cable and Terminator Kit (For standard switch control)
125190 Explore E6 OceanDMX Controller Kit (Colours DMX only)
125191 Explore E6 DMX Touch Panel Controller Kit (Colours DMX)
125192 Explore E6 DMX Touch Panel Controller Kit (Dual Blue/White)
125193 Explore E6 DMX Wifi Touch Panel Controller Kit (Colours DMX)
125194 Explore E6 DMX Wifi Touch Panel Controller Kit (Dual Blue/White)

Accessories

125195 Explore E6 Link Cable (3m)
125196 Explore E6 Link Cable (5m)
125197 Explore E6 Link Cable (10m)
125188 Mounting Tube Extension Kit (For thicker hull types 93mm – 152mm)
125370 Delrin Sleeve
125198 Explore Removal Tool for Extended Explore
125360 4 Way V DC Power Junction Box
