OceanLED Underwater Lights – X-Series

The X-Series is a combination of the current OceanLED XT and XP product ranges. It consists of five lights in three sizes (four, eight or sixteen LED’s) in either a choice of Ultra White, Midnight Blue or RGBW (X8 and X16 only). The X-Series outputs up to 4,500 fixture lumens and benefits from bespoke optics which focus the beam and increase penetration in the water illuminating a larger area.

The new X8 and X16 Colours now combine the standard colour change and the DMX control into the one light. You can toggle between the RGBW colours with a standard DC switch, or for full control and customisation, add an OceanDMX App controller kit and download the free iOS/Android App for smartphones or tablets. The easy to use App allows you to choose from an almost limitless number of colours and pick from a selection of modes like Single colour, Cycle, Strobe, Music or Wave.

The fish-strobe mode gives an exceptionally bright, randomised strobing effect that is proven to catch more bait and attract more fish.

Installation is simple with only a small 12.5mm hole needed to run the cable through the hull and four screws to fix it in place. Maintenance is virtually zero thanks to the special Tritonium lens coating with just a quick wipe removing any marine growth.

Features

• 60° Beam Angle – A wide-angled, focused beam lights up a large area of the water
• Compact and simple design – Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light
• Simple to install – Installation needs only a small, 12.5mm hole in the hull to feed the cable through and 4 screws in place. No bonding required
• Easy to clean – Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours of scrubbing each time you use it
• Fish-Strobe Mode – Exceptionally bright, randomised strobing of the light is proven to attract more fish and catch more bait
• Active Thermal Control – ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn o the fixture completely.
• Colours Control – Colours models are compatible with OceanDMX for full control, interactivity and colour customisation. Alternatively, cycle smoothly between red, green, blue and white with a standard DC switch

BLA CODE	DESCRIPTION	LUMENS	FIXTURES	VOLTS	CURRENT 12V	CURRENT 24V	APPROX. LIGHT PENETRATION (AVG. WATER QUALITY)	APPROX. LIGHT PENETRATION (PERFECT WATER QUALITY)	DRIVER TYPE

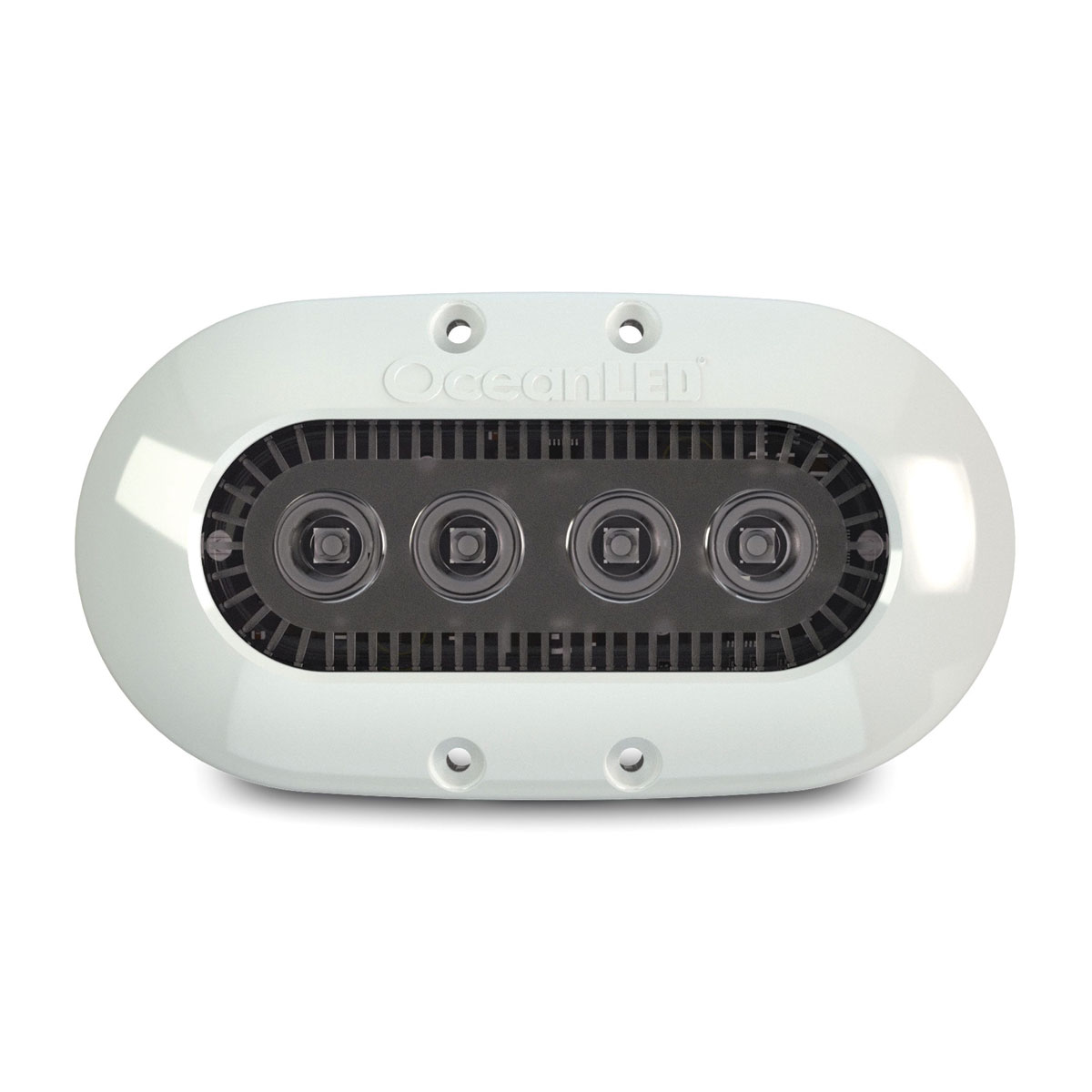

125331	X4 Midnight Blue	1450	1150	9-32V	0.8A	0.4A	6m (20ft)	up to 13m + (40ft)	Internal

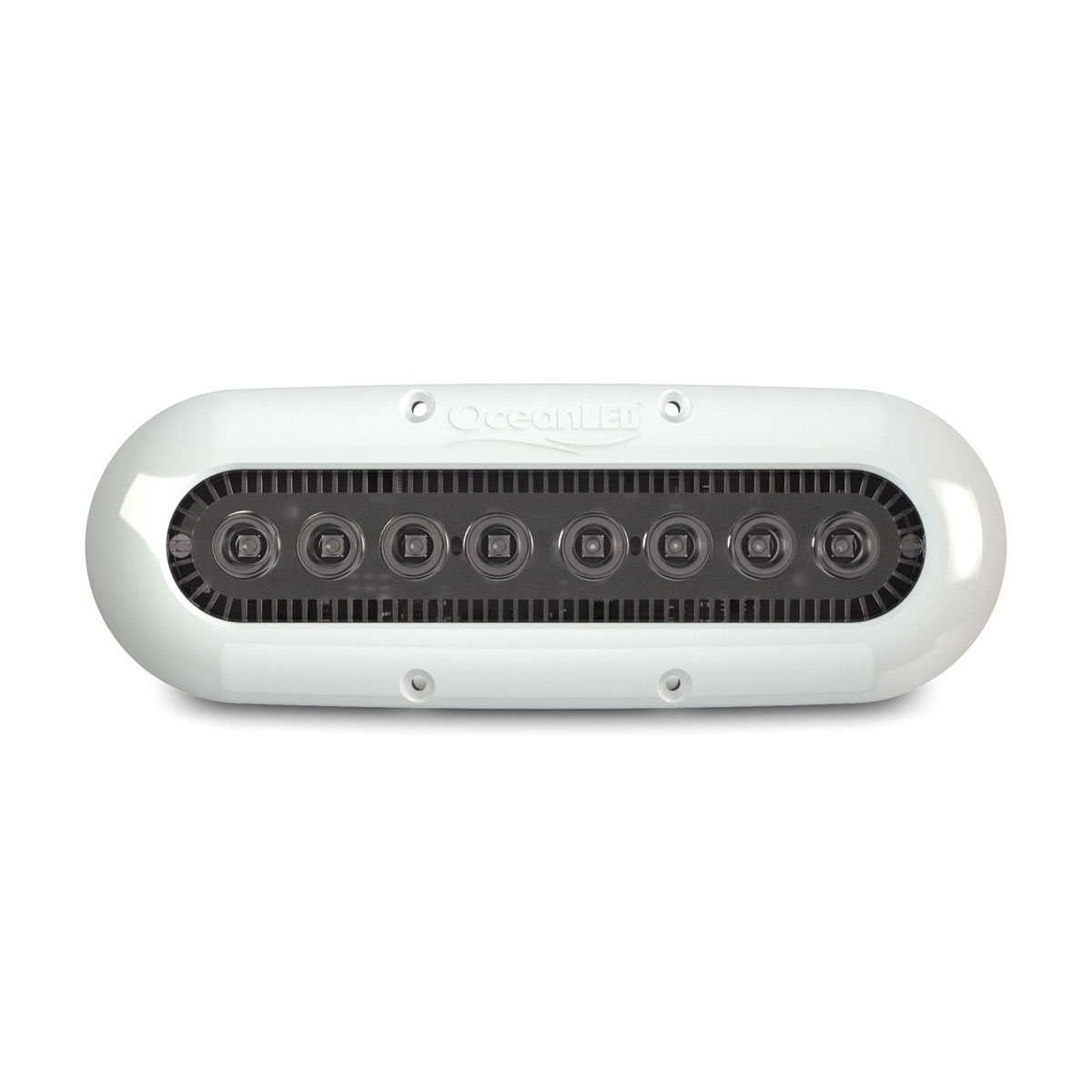

125332	X8 Ultra White	2900	2300	9-32V	1.65A	0.75A	8m (26ft)	Up to 21m + (72ft)	Internal
125333	X8 Midnight Blue	2900	2300	9-32V	1.65A	0.75A	8m (26ft)	Up to 21m + (72ft)	Internal

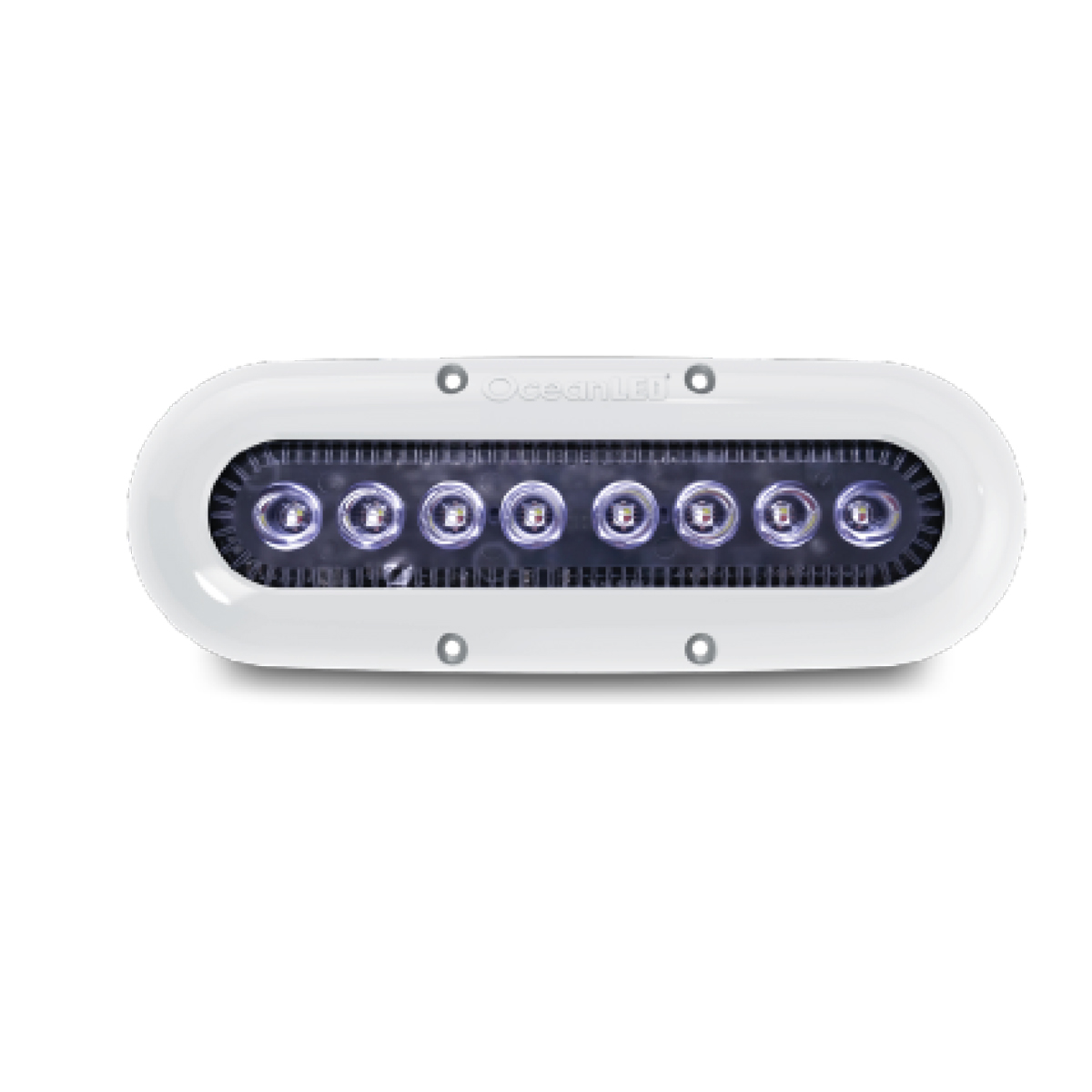

125334	X8 Colours	2900	2300	9-32V	1.65A	0.75A	8m (26ft)	Up to 21m + (72ft)	Internal
125335	X16 Ultra White	5800	4500	9-32V	3.2A	1.5A	12m (40ft)	Up to 30m + (100ft)	Internal
125336	X16 Midnight Blue	5800	4500	9-32V	3.2A	1.5A	12m (40ft)	Up to 30m + (100ft)	Internal

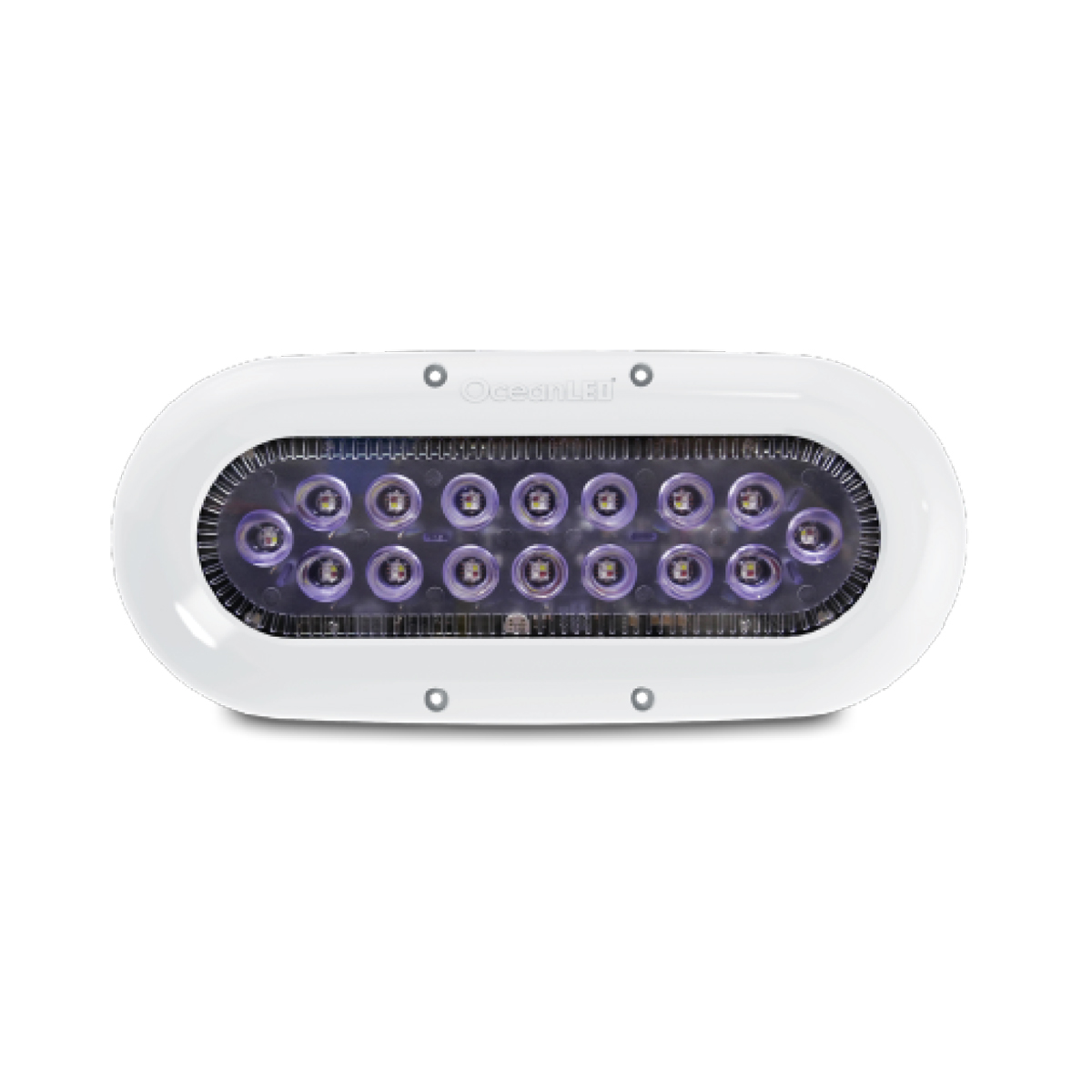

125337	X16 Colours	5800	4500	9-32V	3.2A	1.5A	12m (40ft)	Up to 30m + (100ft)	Internal

*(Amperage draw for Colours models vary by the colour selected, this is the maximum)

Accessories

125362 Bezel 316 S/Steel Suit Xt/Xp4
125364 Bezel 316 S/Steel Suit Xt/Xp8
125366 Bezel 316 S/Steel Suit Xt/Xp16
123420 Oceanled Dmx Mobile App Controller
123421 Dmx Junction Box
123422 Dmx App Cable 2 Metre
123423 X-Series Dmx App Controller Kit
123424 Pro Series Dmx App Controller Kit
123425 Dmx Control Cable 5M
123426 Dmx Control Cable 10M
123427 Dmx Control Cable 15M
123428 Dmx Control Cable 20M
123429 Dmx Control Cable 25M

Please Note: Fixture Lumens rating is a measurement of total light output from a finished lighting fixture. This measurement can only be obtained from either a Goniophotometer or an integrating sphere. Fixture Lumens is the most reliable, professional measurement of light output. OceanLED has heavily invested in these measurement apparatus and has had all its data verified by the Lighting Association of Great Britain.
