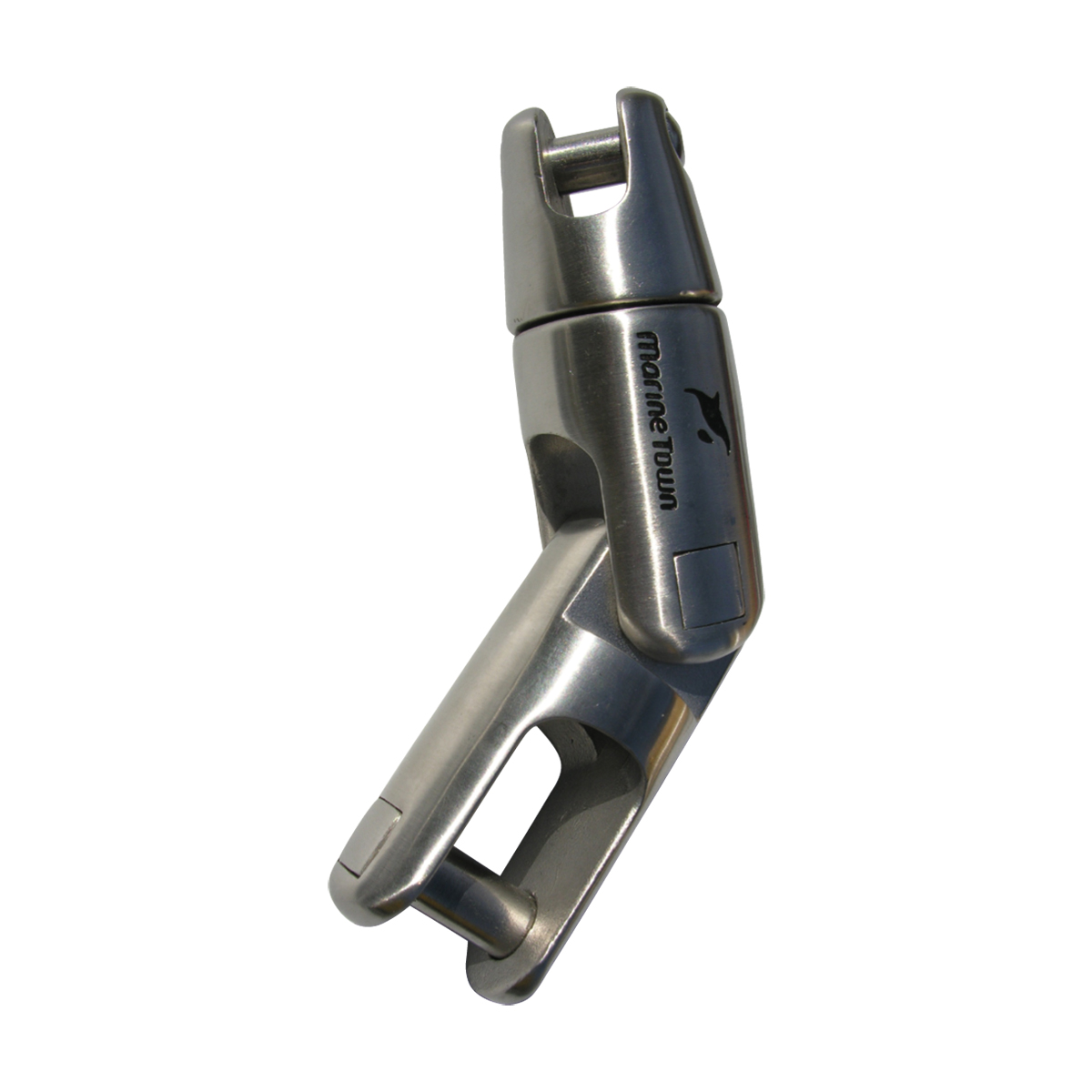

Marine Town Anchor Connector Swivels – Stainless Steel

High quality cast and polished 316 grade stainless steel anchor connector swivels designed for use between anchor shaft and chain (143132, 143134) or rope (143138). When setting the anchor the swivel prevents the chain from becoming twisted allowing for easy deployment and retrieval. A smooth overall snag free finish helps the swivel slide freely over bow rollers and deck. The captured pin can be easily removed via an allen key (included) and ensures the fastening pin will not loosen when under load. Designed specially for use with rope, the 143138 incorporates wider, smooth rounded jaws to accommodate up to 12mm rope and 10mm thimbles.

BLA CODE	APPLICATION	A MM	B MM	C MM	D MM	E MM	S.W.L. KG
143132	Chain	134	15	9	40	25	850
143134	Chain	154	22	13	44	25	1350
143138	Rope	100	16	16	37	37	1300
