$82.90

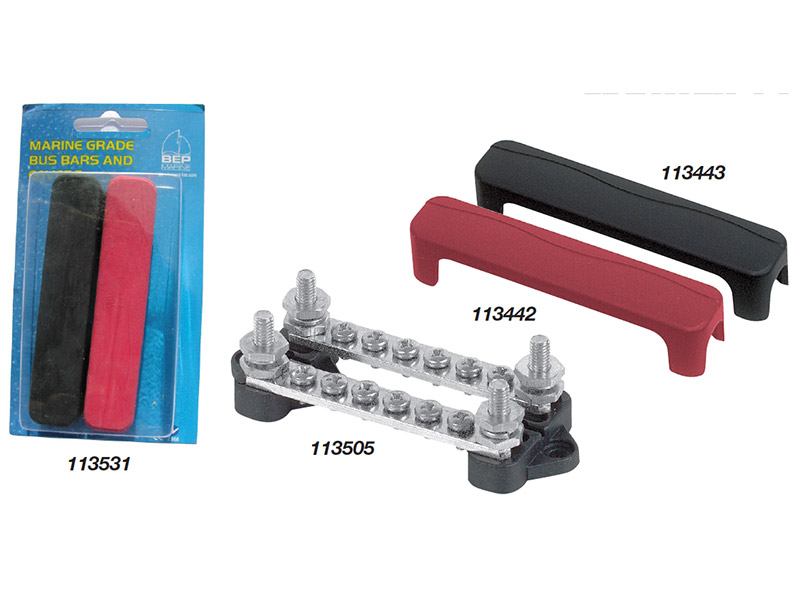

Marinco® BEP Twin Busbars with Cover – Packaged (113531)
Tin plated brass busbars with twin rows of six terminals each and insulated mounting bases to enable both positive and negative DC, or earth and neutral buses on one block. Alternatively the rows may be bridged to increase capacity. Push fit colour coded covers are included for each single row of busbars.
Features:
BLA Code: 113531
Description: Busbar 2 x 6 way with red/black cover
Includes: 1 x 113505 + 1 x 113442+ 1 x 113443
You must be logged in to post a review.
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113144)
Features:
BLA Code: 113144
Circuits: 8
Overall Size wxh mm: 239×115
Cut Out Size wxh mm: 219×95
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 2
10 amp – 2
15 amp – 3
20 amp – 1
Battery Boxes – Small (23661)
• Vented battery box made from hi-density reinforced polyethylene which is impervious to battery acids.
• Moulded carry handle.
• Moulded lid to provide easy cable setup.
• Includes webbing strap and stainless steel fastenings.
Features:
Part No.: 23661
Description: Standard Battery Box
Outer Diamensions (mm): 335 x 220 x 250
Inside Dimensions (WxH) mm: 290 x 195 x 195
Battery Box Large Pre-Wired ‘Power Centre’ (23663)
• Vented battery box made from hi-density reinforced polyethylene which is impervious to battery acids.
• Pre wired “Power Centre” provides lit display of battery charge.
• Moulded carry handle.
• Includes webbing strap and stainless steel fastenings.
• External positive and negative connection terminals, PVC coated.
• 2 x cig socket power outlets.
Features:
Part No.: 23663
Description: Powered Battery Box
Outer Diamensions (mm): 410 x 230 x 300
Inner Diamensions (mm): 340 x 190 x 225
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113153)
Features:
BLA Code: 113153
Circuits: 12
Overall Size wxh mm: 127×285
Cut Out Size wxh mm: 107×265
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 3
10 amp – 4
15 amp – 4
25 amp – 1
There are no reviews yet.
