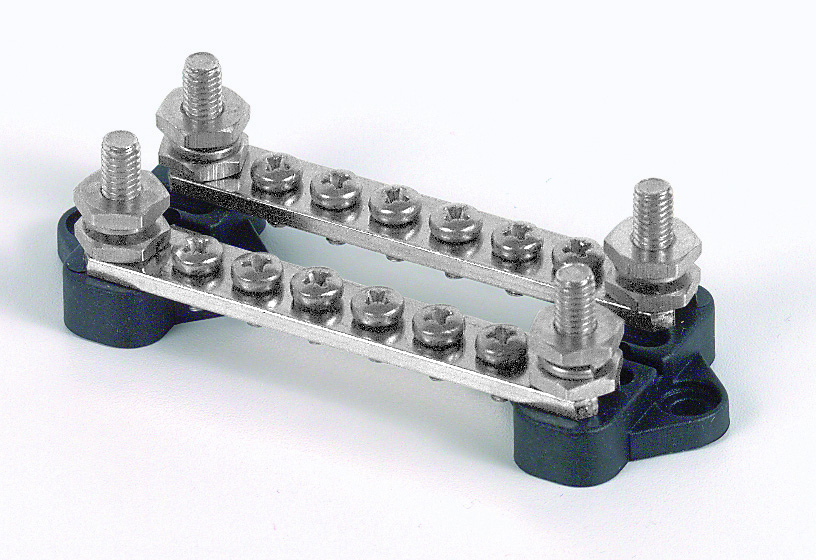

Marinco® BEP Twin Busbars (113505)
Tin plated brass busbars with twin rows of terminals and insulated mounting bases to enable both positive and negative DC, or earth and neutral buses on one block. Alternatively the rows may be bridged to increase capacity. Twin busbars accept the same colour coded covers on each row as the single busbars. Meets ABYC standards.
Features:
BLA Code: 113505
Take Offs: 2×6
Base mm: 100
Height mm: 42
Current Rating: 100
Output Screws mm: 4
Input Studs mm: 6
You must be logged in to post a review.
Battery Boxes – Large (23662)
• Vented battery box made from hi-density reinforced polyethylene which is impervious to battery acids.
• Moulded carry handle.
• Moulded lid to provide easy cable setup.
• Includes webbing strap and stainless steel fastenings.
Features:
Part No.: 23662
Description: Large Battery Box
Outer Diamensions (mm): 410 x 225 x 280
Inside Dimensions (WxH) mm: 345 x 195 x 220
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113144)
Features:
BLA Code: 113144
Circuits: 8
Overall Size wxh mm: 239×115
Cut Out Size wxh mm: 219×95
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 2
10 amp – 2
15 amp – 3
20 amp – 1
IN STORE PICK UP ONLY
SuperCharge SeaMaster Gold – MFM70 Marine Battery 720CCA (THESE ARE A STOCKED LINE – FOR FREIGHT PLEASE CONTACT US PRIOR TO ORDERING)
• Black UV stabilised PVC housing.
• Supplied with water resistant rubber cap and gasket.
• Flush mounting, can be mounted with or without rectangle housing.
• Relaxn blister packaging for maximum showroom appeal.
• Supplied with water resistant rubber cap.
• Accessory Cig power socket – 12V @ 20A, 24V @ 10A.
• USB – Fast charging at full speed (2.1A for iPad and 1A for iPhone/iPod).
• Compatible with all other smartphones.
• LED power indication.
• Short circuit / overheat protection.
• Supplied with two heat shrinkable spade connectors.
| PART NUMBER | DESCRIPTION | LENGTH | HEIGHT | Width |
SAW-53047 |
Flush Mount Dual Cigarette Lighter | 105mm | 43mm | 60mm |
| SAW-53047-10 | Flush Mount Dual Cigarette Lighter | 105mm | 43mm | 60mm |
SAW-53051 |
Flush Mount Cigarette Lighter + Voltmeter | 105mm | 43mm | 60mm |
| SAW-53051-10 | Flush Mount Cigarette Lighter + Voltmeter | 105mm | 43mm | 60mm |
