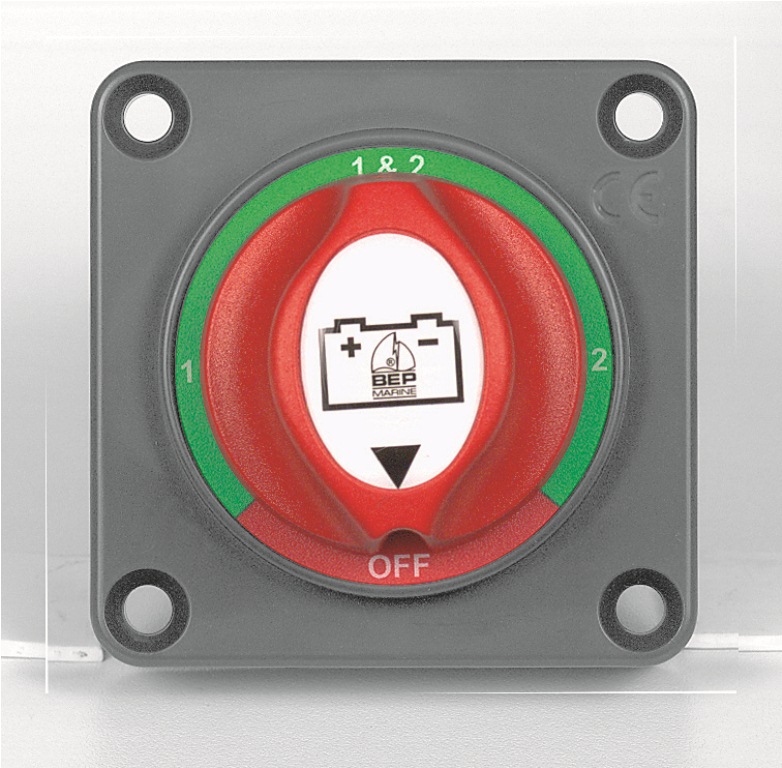

Marinco® BEP Mini Four Position Battery Switch (113553)
The 701-S is the smallest selector switch on the market. This battery switch offers a simple and economical way of separating two batteries. Four position rotating switch provides off, Battery 1, Both and Battery 2 alternatives. Removable rear cover insulates the rear terminals against any short circuits. Removable side plates on four sides provide access for heavy duty battery cables. Surface mount or recess mount in a 52mm hole. Mount holes 5mm roundhead. The 7015-PM is designed specifically for panel mounting with the option of full recess or shallow intrusion. This flush mounting version accepts 5mm countersunk screws. Please note this switch will not protect electronics from harmful engine starting spikes.
Features:
BLA Code: 113553
Mounting Type: Panel
Continuous rating: 200 amps DC
Intermittent rating: 300 amps DC
Cranking rating: 1000 amps DC for 10 seconds
Voltage rating: 48 volts DC maximum
Terminal stud size: 3 x 8mm
Moulded in high temperature, fibre-reinforced plastics
