$13.90

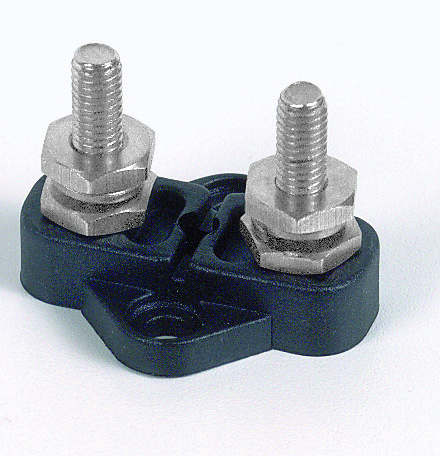

Marinco® BEP Insulated Dual Power Studs (113520)
High temperature moulded plastic base with tinned copper studs in 8 to 10mm and tinned brass in 6mm version. Commonly used for isolated positive and negative connections. A version with 10mm stud for the positive cable and 8mm stud for the negative is also available. Push fit covers, colour coded for polarity are available.
Features:
BLA Code: 113520
Stud Size mm: 6
Base Size mm: 48×43
Height mm: 38
You must be logged in to post a review.
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113144)
Features:
BLA Code: 113144
Circuits: 8
Overall Size wxh mm: 239×115
Cut Out Size wxh mm: 219×95
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 2
10 amp – 2
15 amp – 3
20 amp – 1
• Colour coded Red+ / Black-.
• Heavey duty dual terminal studs with connecting link.
• Base made from glass fibre reinforced nylon for strength and durability.
| PART NUMBER | STUD TYPE | COLOUR | Max current | mounting screws | L X W X H |
SAW-30220 |
Dual M6 Negative with Link | Black | 12V 100Amp / 48V 25Amp | M4 x 12mm S/S Round Head | 43mm x 45mm x 32.5mm |
| SAW-30220-10 | Dual M6 Negative with Link – Pack of 10 | Black | 12V 100Amp / 48V 25Amp | M4 x 12mm S/S Round Head | 43mm x 45mm x 32.5mm |
SAW-30221  |
Dual M8 Positive with Link | Red | 12V 150Amp / 48V 35Amp | M4 x 12mm S/S Round Head | 43mm x 45mm x 32.5mm |
| SAW-30221-10 | Dual M8 Positive with Link – Pack of 10 | Red | 12V 150Amp / 48V 35Amp | M4 x 12mm S/S Round Head | 43mm x 45mm x 32.5mm |
There are no reviews yet.
