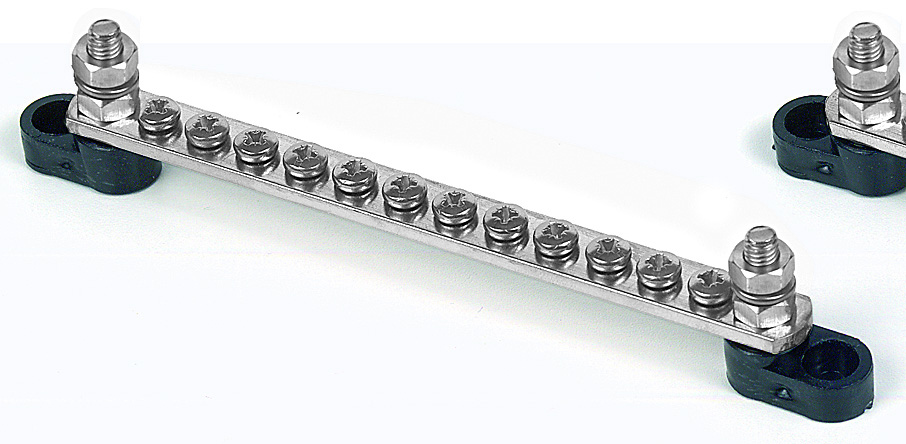

Marinco® BEP Busbars (113506)
Tin plated brass busbars with insulated mounting bases. Mounting holes are recessed to avoid accidental shorts. Polarity colour coded covers are available to meet ABYC standards.
Features:
BLA Code: 113506
Take Offs: 12
Base mm: 177
Height mm: 15
Current Rating: 100
Output Screws mm: 4
Input Studs mm: 6
You must be logged in to post a review.
Battery Boxes – Large (23662)
• Vented battery box made from hi-density reinforced polyethylene which is impervious to battery acids.
• Moulded carry handle.
• Moulded lid to provide easy cable setup.
• Includes webbing strap and stainless steel fastenings.
Features:
Part No.: 23662
Description: Large Battery Box
Outer Diamensions (mm): 410 x 225 x 280
Inside Dimensions (WxH) mm: 345 x 195 x 220
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113151)
Features:
BLA Code: 113151
Circuits: 12
Overall Size wxh mm: 351×115
Cut Out Size wxh mm: 331×95
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 3
10 amp – 4
15 amp – 4
25 amp – 1
• Black UV stabilised PVC housing.
• Supplied with water resistant rubber cap and gasket.
• Flush mounting, can be mounted with or without rectangle housing.
• Relaxn blister packaging for maximum showroom appeal.
• Supplied with water resistant rubber cap.
• Accessory Cig power socket – 12V @ 20A, 24V @ 10A.
• USB – Fast charging at full speed (2.1A for iPad and 1A for iPhone/iPod).
• Compatible with all other smartphones.
• LED power indication.
• Short circuit / overheat protection.
• Supplied with two heat shrinkable spade connectors.
