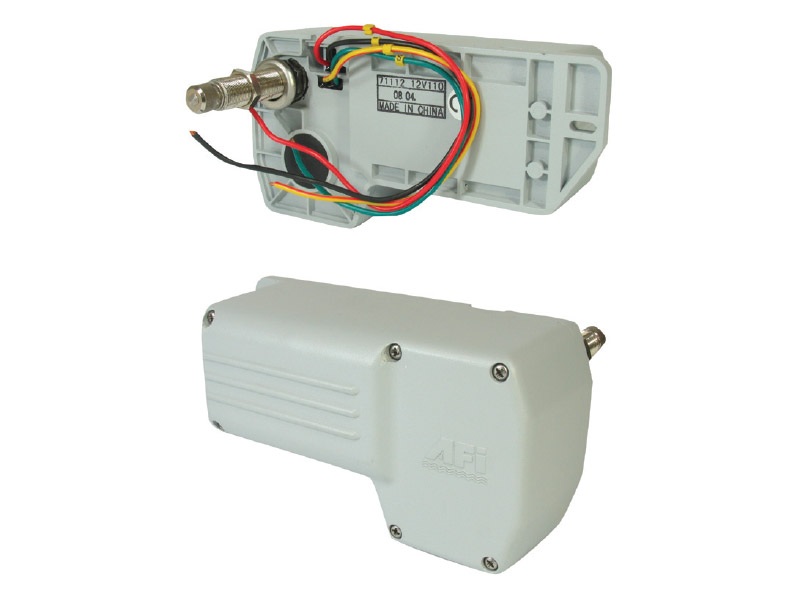

Marinco® BEP AFI 1.5 Waterproof Wiper Motors (116088)
- Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
- Factory pre set sweep angles of 110°, with easy adjustment to 45°, 60° or 80°
- Coast to park with adjustable right or left self parking
- M16 mm diameter shaft (5/8”)
- Two speed motor
- Sealed 150mm, 16AWG wire leads, with RF shielded circuitry
- Stall torque: 125 kgf/cm; 12.3 Nm (109 in – lbs)
- Stall current: 11.5-13 amps at 12V
- No load current: 0.5-1.2 amps at 12V
- Available in 23mm (12V only) and 50mm effective shaft lengths
- 3 year warranty
Features:
BLA Code: 116088
Volts: 12
Motor Length mm: 197
Motor Depth mm: 70.28
Motor Width mm: 101
Thread Shaft Length mm: 50×16
Overall Shaft Length mm: 65
