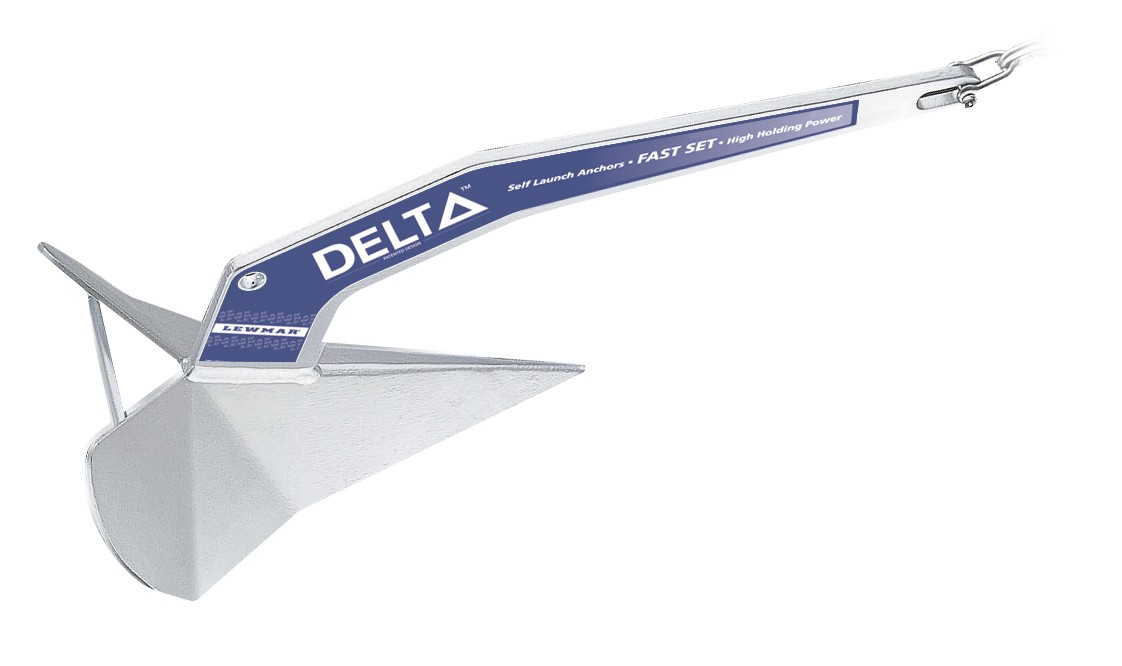

Lewmar Anchor – Delta Manganese Steel

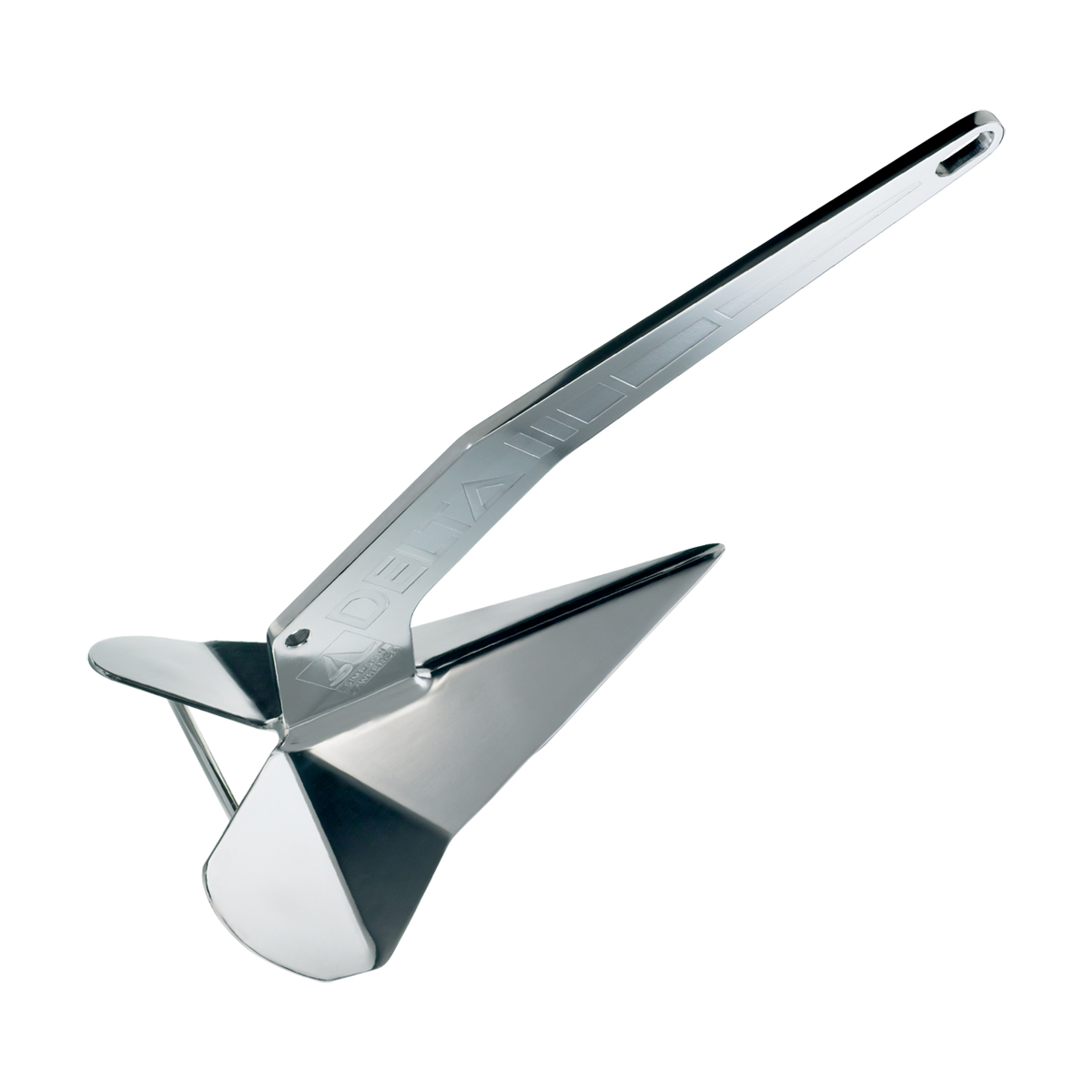

The original Delta® design from Lewmar® is recognised the world over as an outstanding anchor with exceptional holding power. Manufactured to exacting standards the Delta® is constructed from high grade manganese steel giving it maximum tensile strength. The unique shank profile and ballasted tip plus low centre of gravity and self-righting geometry ensure that the Delta anchor will set immediately. The design profile and ballasted tip also means that the anchor self launches with ease. The Delta’s consistent and reliable performance is backed by a lifetime guarantee against breakage, has Lloyd’s Approval as a High Holding Power anchor and is specified as the primary anchor used by numerous national organisations worldwide. The Delta® anchor is also made available in premium grade Duplex/High Tensile stainless steel.

BLA CODE GAL	BLA CODE S/STEEL	WEIGHT KG	WEIGHT LB	SUGGESTED CHAIN SIZE MM	A MM	B MM	C MM	D MM	E MM
146220		4	9	6-7	514	228	8	387	210
146222	146240	6	14	6-7	595	263	10	450	241
146224	146242	10	22	8	695	308	12	526	283
146226	146244	16	35	8	812	360	12	614	334
146228	146246	20	44	10	877	389	16	663	361
146230	146248	25	55	10	945	417	16	713	384
146233	146250	32	70	10	1026	455	26	774	417
146234		40	88	10	1099	489	20	885	446

1 Damage by deformation or bending is not covered by this guarantee.
2 Lloyd’s Test Certificate is available for individual anchors by arrangement.
