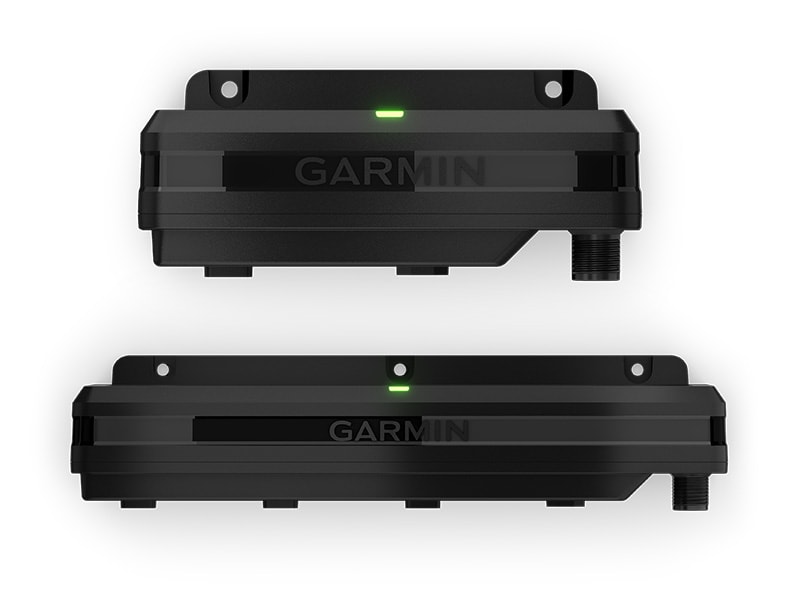

Garmin LC102 LED Control Module
Price Match
$215.00 $239.00
SET THE VIBE FOR YOUR RIDE
Control LED lights on your boat from your compatible chartplotter or smartphone with the Garmin Spectra light control module (lights not included). Assign and control different light groups for cup holders, speakers, strip or courtesy lights, and more to create your own vibe.
Seamless integrated
lighting control
system.
BE THE LIGHT DJ

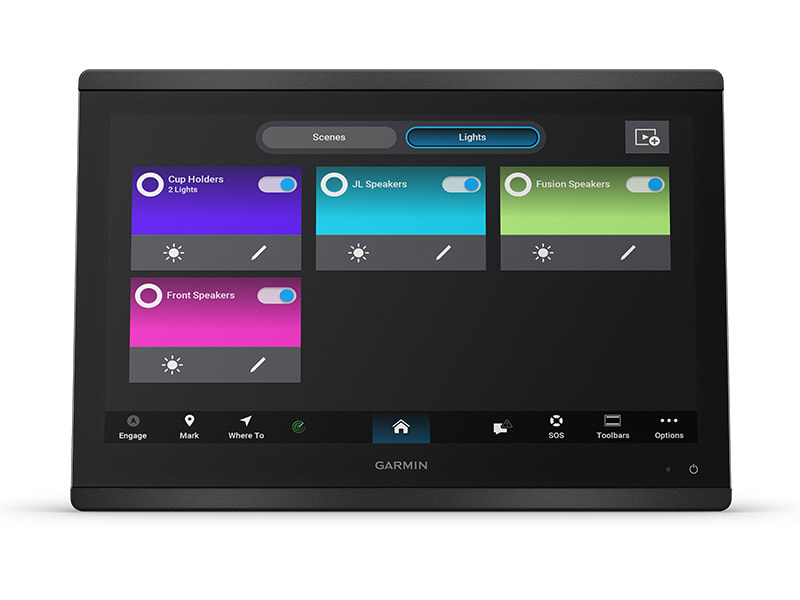

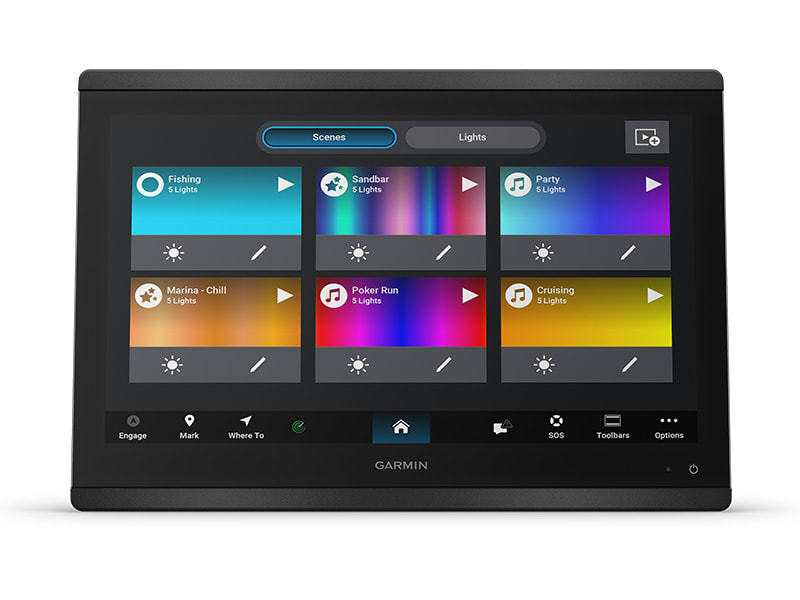

From bow to stern and everything in between, this module lets you control and set up different light groups and scenes.
IN YOUR CONTROL
Control lights over the NMEA 2000® network with your compatible chartplotter or with the ActiveCaptain® App on your compatible smartphone.
MATCH THE BEAT

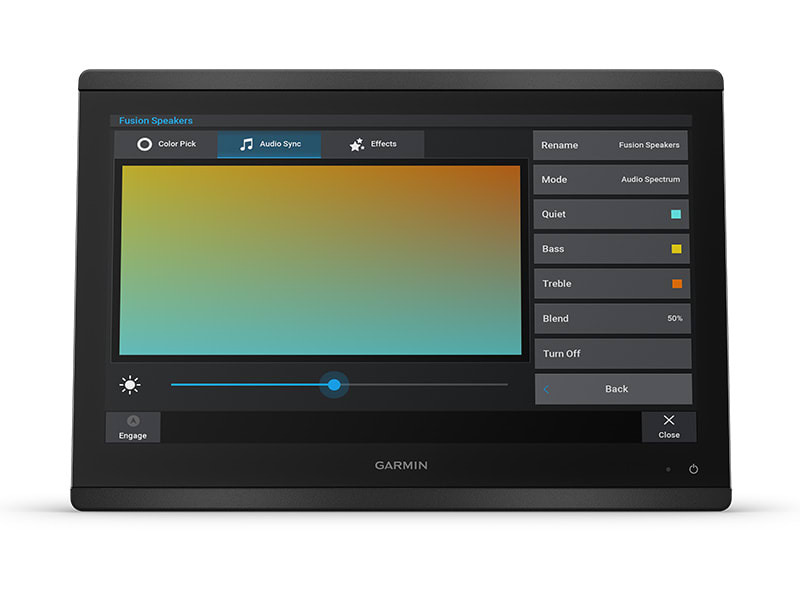

See the beat by syncing the LED lights to the music track with the audio sync feature.
FUSION® AND JL AUDIO COMPATIBLE

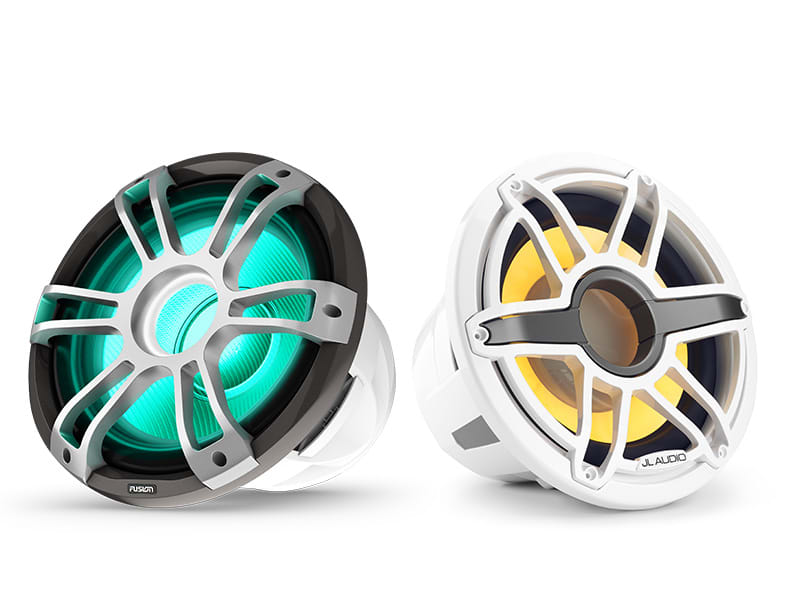

Control LED lighting on Fusion and JL Audio boat speakers and subwoofers plus wake tower speakers (sold separately).
GROW THE SYSTEM
Add more lights after the initial install with a scalable system.
RUGGED DESIGN
Built to withstand the abuse of life on the water (in accordance with IP66/IP67 ratings)
| Weight | 0.2 kg |
|---|
General
Unit dimensions (WxHxD): 113 x 52 x 47 mm LC102: (4.45″ x 2.05″ x 1.85″)
Weight: LC102: 83 g (2.93 oz)
Water ratingIP66/IP67
OPERATING TEMPERATURE RANGE: 0° to 50° C (32° to 122° F)
Compass-safe distance: 20 cm (7.87″)
WARRANTY: 2 years
Cable construction: Multistrand tinned copper with white PVC outer jacket
WARRANTY: 1 year
Electrical
Input voltage: 10.8 to 16 V (12 V system), 21.6 to 32 V (24 V system)
Input current (max): LC102: 2 A
Output current (max): 2 A (per output connector)
NMEA 2000® LEN: 2 (≤ 70 mA)
Over voltage protection: Yes
Over current protection: Yes
Lighting Features

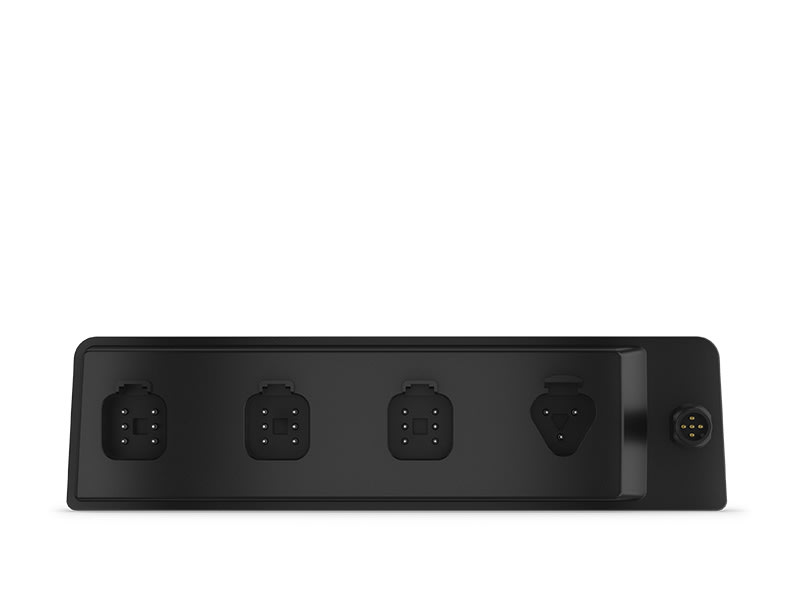

LED connection types: RGB, RGBW, CRGBW, single channel
Lighting modes: Colour pick, audio sync (colour blend/audio spectrum), effects
Premium control and setup via: MFD or ActiveCaptain® app
Control via: Fusion Apollo™ Stereo
