$5,399.00

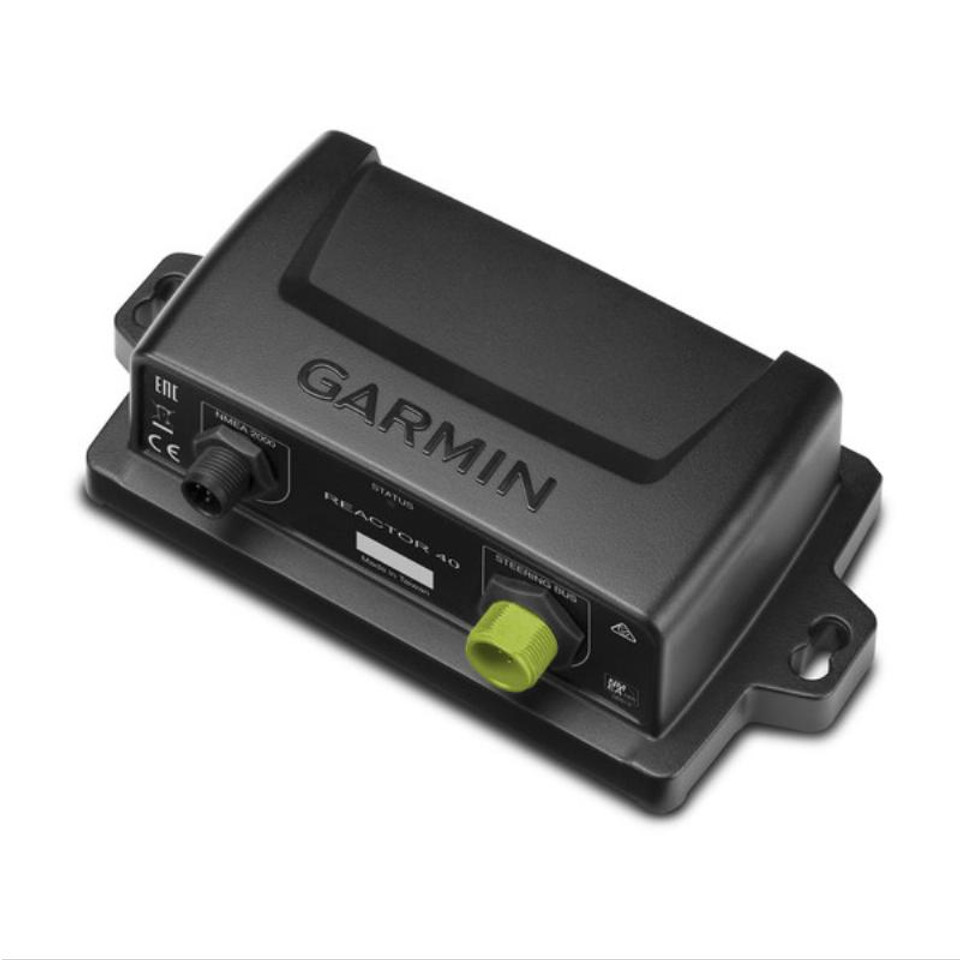

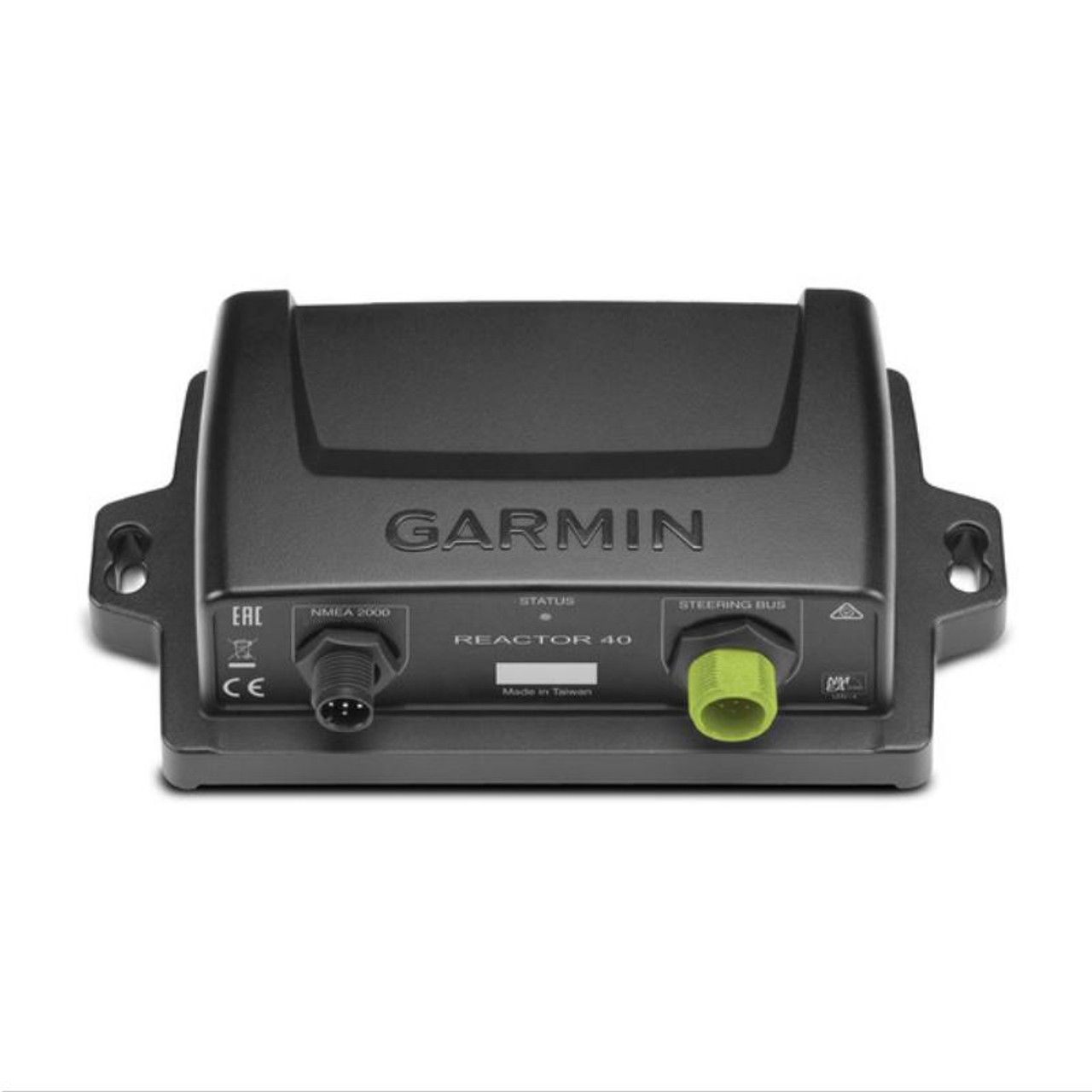

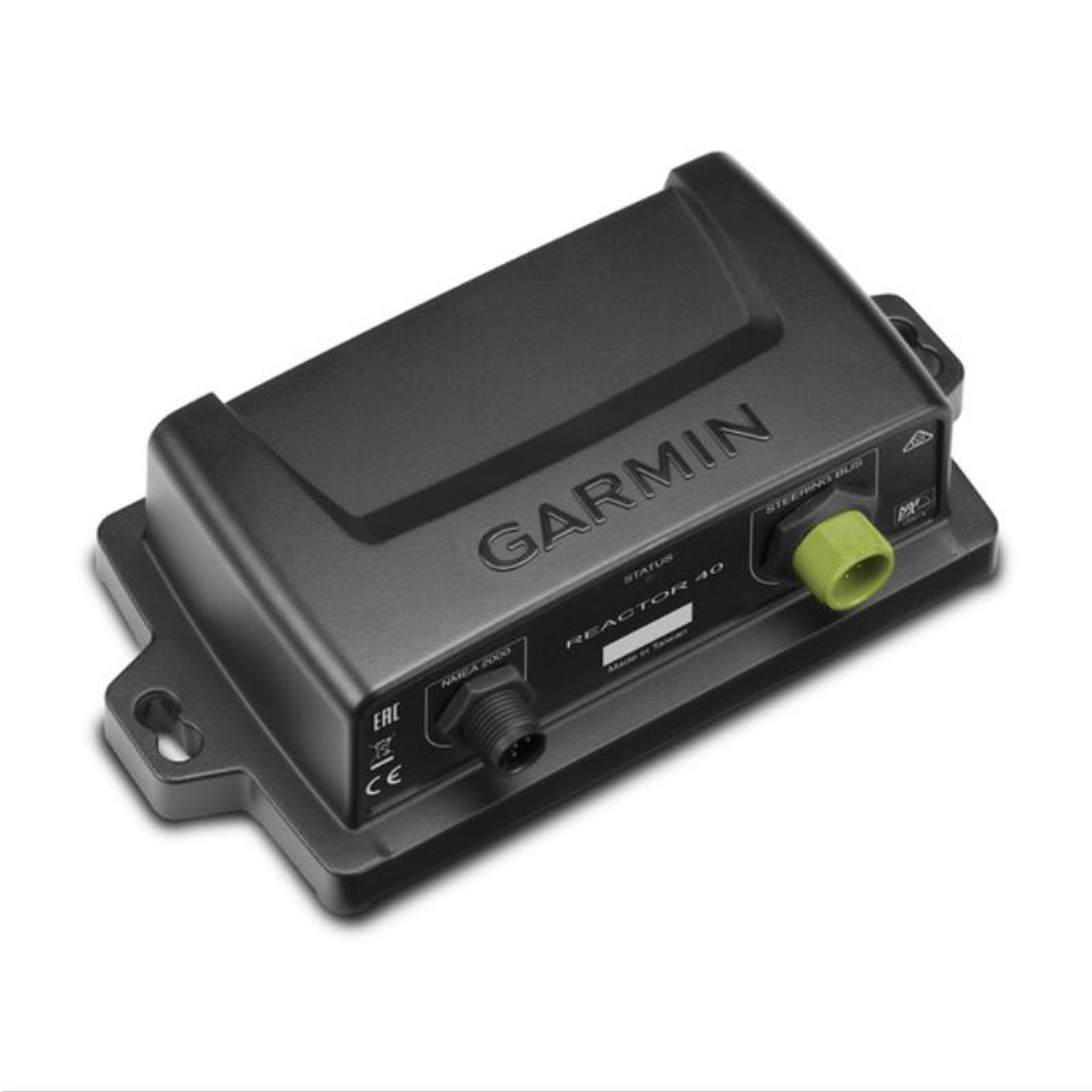

Our CCU is the brain of the Reactor 40 autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to the NMEA 2000® network to communicate with your GHC™ 20 and an optional NMEA 2000-compatible devices.
| Weight | 0.4 kg |
|---|
Garmin GLO Remote GPS Sensor with Bluetooth [Garmin Part Number: 010-01055-00] – RRP $149
Navigate with Garmin-caliber GPS data on the mobile device of your choice. GLO brings you the best of both worlds by combining GPS/GLONASS receivers with Bluetooth® technology so you can enjoy precise position information on your iPad, iPhone or Android device.
The Accuracy of GPS + GLONASS
GLO can receive position information from both the GPS and GLONASS satellite constellations, allowing it to connect to up to 24 more satellites than devices that rely on GPS alone. This allows GLO to lock on to satellites approximately 20 percent faster and remain connected even at high speed. What’s more, GLO updates its position information at 10 times per second — that’s up to 10 times more often than the GPS receivers in many mobile devices.
Set It Up and Go
Using Bluetooth technology, GLO wirelessly pairs to your mobile device. Just set GLO within range of your mobile device, and in moments you’ll be receiving GLO’s position data. It has up to 12 hours of battery life to keep your position on long trips, and charging GLO between uses is easy with the included USB cable or optional 12/24 volt cigarette lighter adapter. The optional friction mount keeps the receiver safe on your dashboard and in full view of satellites.
SPECIFICATIONS:
Physical & Performance
* Unit size, WxHxD: .70″ x 1.65″ x 3.04″ (1.78 x 4.19 x 7.72 cm)
* Weight: 2.12 oz (60.1 g)
* Receiver Technology: GPS+GLONASS
* WAAS: Yes
* Update Rate: 10 Hz
* Accuracy: 3 meters
* Battery Capacity: 1100mAh
* Battery Life: 12 hours
* Hot Start Time: 3–5s
* Warm Start Time: 35s
* Cold Start Time: 60s
WHAT’S IN THE BOX:
* GLO receiver
* USB cable
* Documentation
WARRANTY:
We are an authorised Australian Garmin retailer, as such Full Australian Manufacturers Warranty is applicable for this item. Please note if a Garmin unit is purchased overseas or from a non-authorised Garmin retailer you may not receive warranty coverage in Australia.
*Specifications from suppliers’ information. Actual depth capabilities depend on transducer installation, bottom type & water conditions. All sonars typically read deeper in freshwater than in saltwater. Images for display purposes only.
The GT54UHD-TM transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.
Ultra High-Definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.
¹For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combos
Garmin Marine Heading Sensor for Radar [Garmin Part Number: 010-11417-00] – RRP $1200
When interfacing this 3-axis compass heading sensor to our marine lineup of MFDs and radars, mariners can expect unparalleled radar overlay performance and accuracy along with excellent MARPA capabilities.
This heading sensor (based on Airmar H2183) uses a rate gyro, so it can maintain an exceptional 2 degree heading accuracy under heavy dynamic conditions, with up to 30 degrees of pitch and roll. In addition, it supports either NMEA 0183 or NMEA 2000® data output to fit any installation.
Installation is a snap thanks to the heading sensor’s innovative design, allowing it to mount to any angled bulkhead. Mariners can expect this heading sensor to provide trouble-free service in the harshest conditions and will learn to appreciate its reliability and excellent performance.
* Note: NMEA 0183 and NMEA 2000 cables sold separately (to connect to a NMEA 2000 Network a dedicated NMEA 2000 Marine Heading Sensor Cable is required Garmin Part Number: 010-11419-00 – optional, please see related products).
THIS IS SUITABLE FOR CURRENT MODEL GARMIN GMR 18 xHD RADOME & GMR 24 xHD RADOME.
FEATURES:
* Better than 1 degree static heading accuracy
* Industry leading 2 degree dynamic accuracy up to 30 degree pitch and roll
* Three-axis solid-state compass provides accurate heading data
* Three-axis accelerometer improves heading, pitch and roll in static conditions
* Three-axis rate gyro improves heading, pitch and roll in dynamic conditions
* Temperature compensated across the entire operating range to ensure optimum accuracy
* Easy installation to any angled bulkhead
* Auto-calibration feature
SPECIFICATIONS:
* Dimensions (HxLxD): 2″ (5.08 cm) x 4.4″ (11.18 cm) x 4.5″ (11.43 cm)
* Default heading output: 10 Hz for both NMEA 0183 and NMEA 2000 (NMEA 2000 can be output up to 20 Hz)
* Waterproof housing: IPX6
* Operating voltage: 9 VDC to 16 VDC
WHAT’S IN THE BOX:
* Garmin Marine Heading Sensor
* Documentation
WARRANTY:
We are an authorised Australian Garmin retailer, as such Full Australian Manufacturers Warranty is applicable for this item. Please note if a Garmin unit is purchased overseas or from a non-authorised Garmin retailer you may not receive warranty coverage in Australia.
*Specifications from suppliers’ information.
