BLA Standard D Shackle – 316 Grade Stainless Steel Captive Pin
Price Match
Price range: $3.90 through $74.90
BLA Standard D Shackle – 316 Grade Stainless Steel Captive Pin

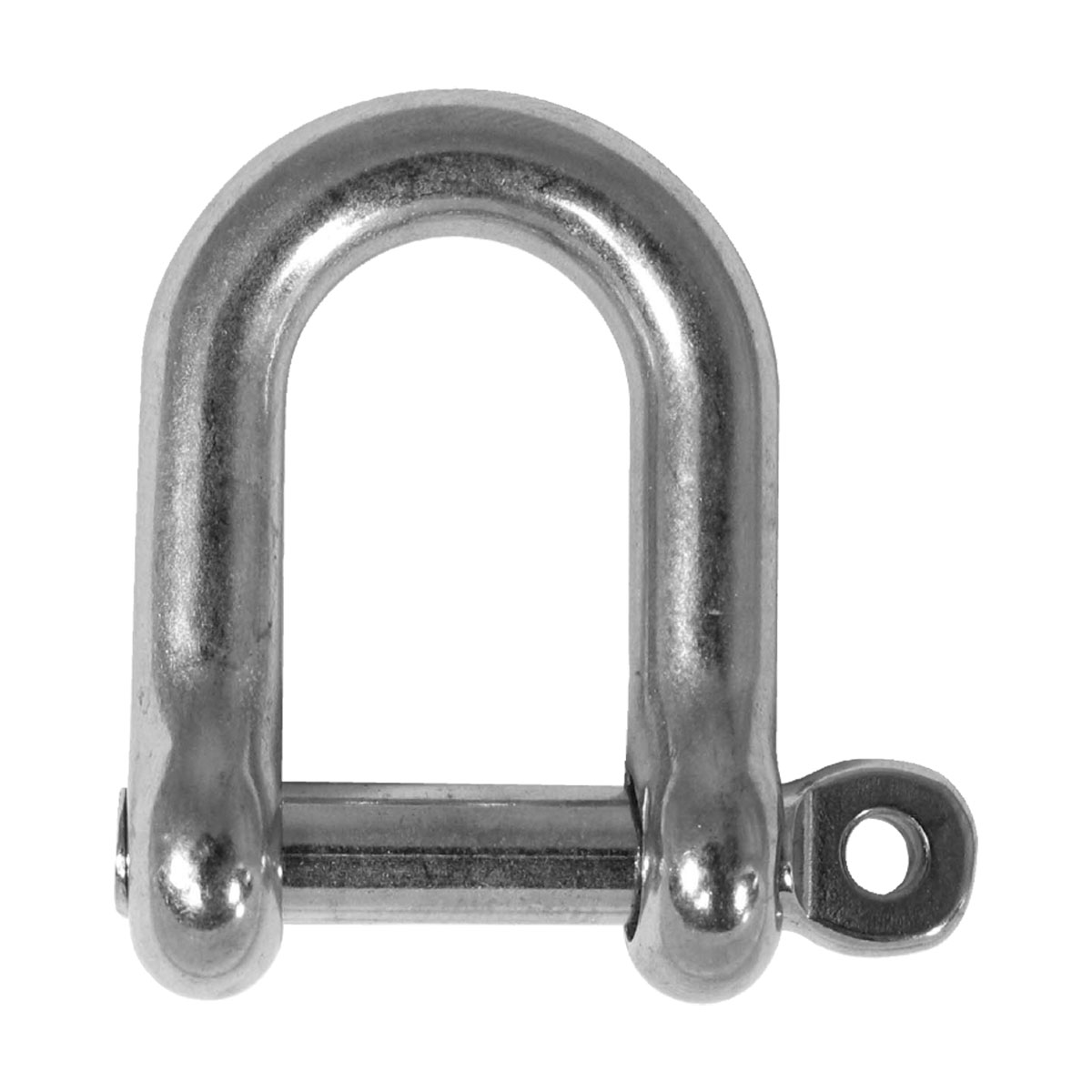

316 grade stainless steel ‘D’ shackle with stepped, screw in captive pin that prevents loss. Pins are drilled for security tie wire. Pin diameter is slightly less than bale diameter.
|
BLA CODE
|
PACK QTY
|
PIN. DIA MM
|
A MM
|
B MM
|
BREAKING LOAD KG
|
|---|---|---|---|---|---|
BLA-161062 |
1 | 5 | 18 | 10 | 1000 |
BLA-161062P |
1 | 5 | 18 | 10 | 1000 |
BLA-161064 |
1 | 6 | 21 | 13 | 1400 |
BLA-161064P |
1 | 6 | 21 | 13 | 1400 |
BLA-161066 |
1 | 8 | 27 | 18 | 2500 |
BLA-161066P |
1 | 8 | 27 | 18 | 2500 |
BLA-161066B10 |
10 | 8 | 27 | 18 | 2500 |
| BLA-161068 |
1 | 10 | 35 | 20 | 4000 |

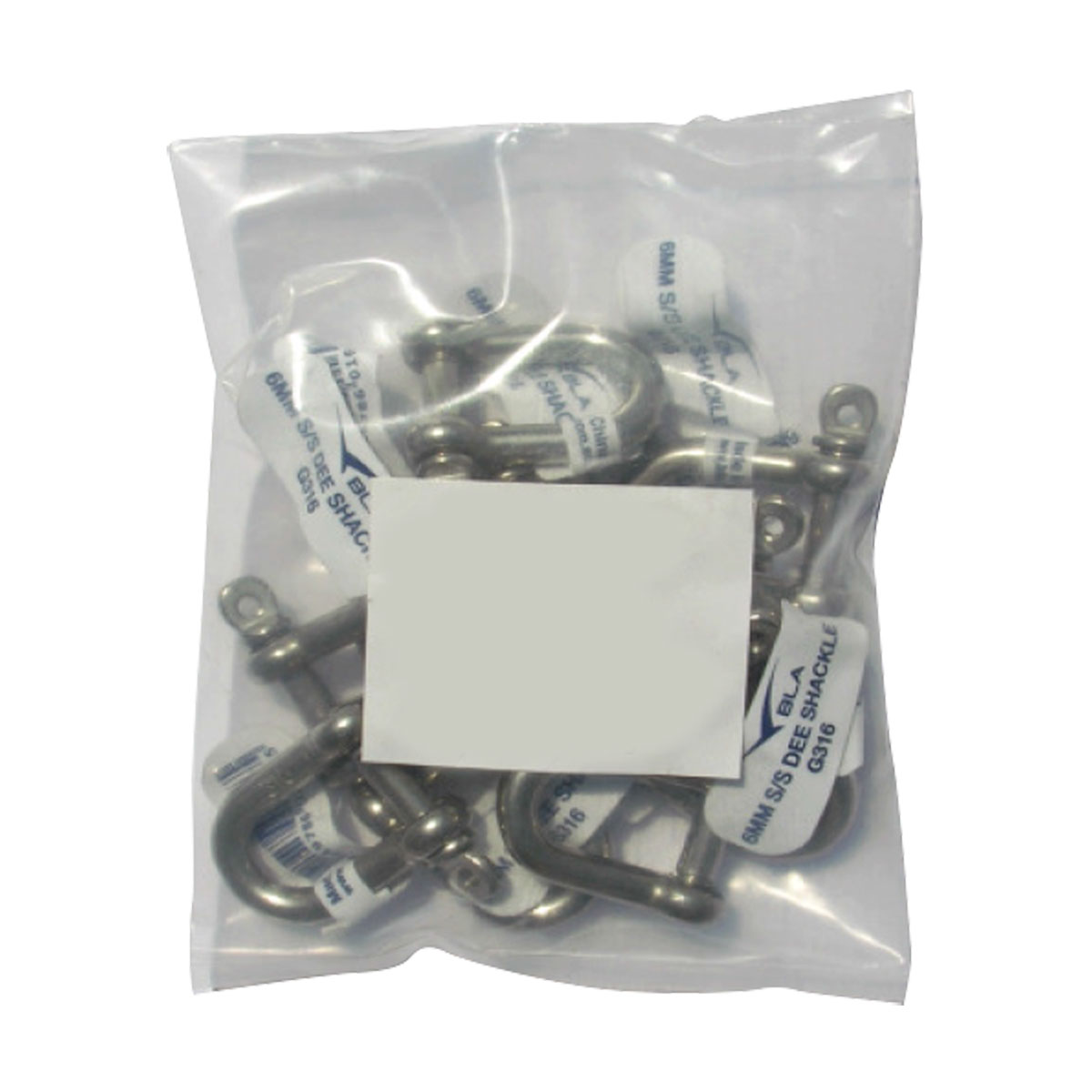

‘B’ – Denotes bulk packed item

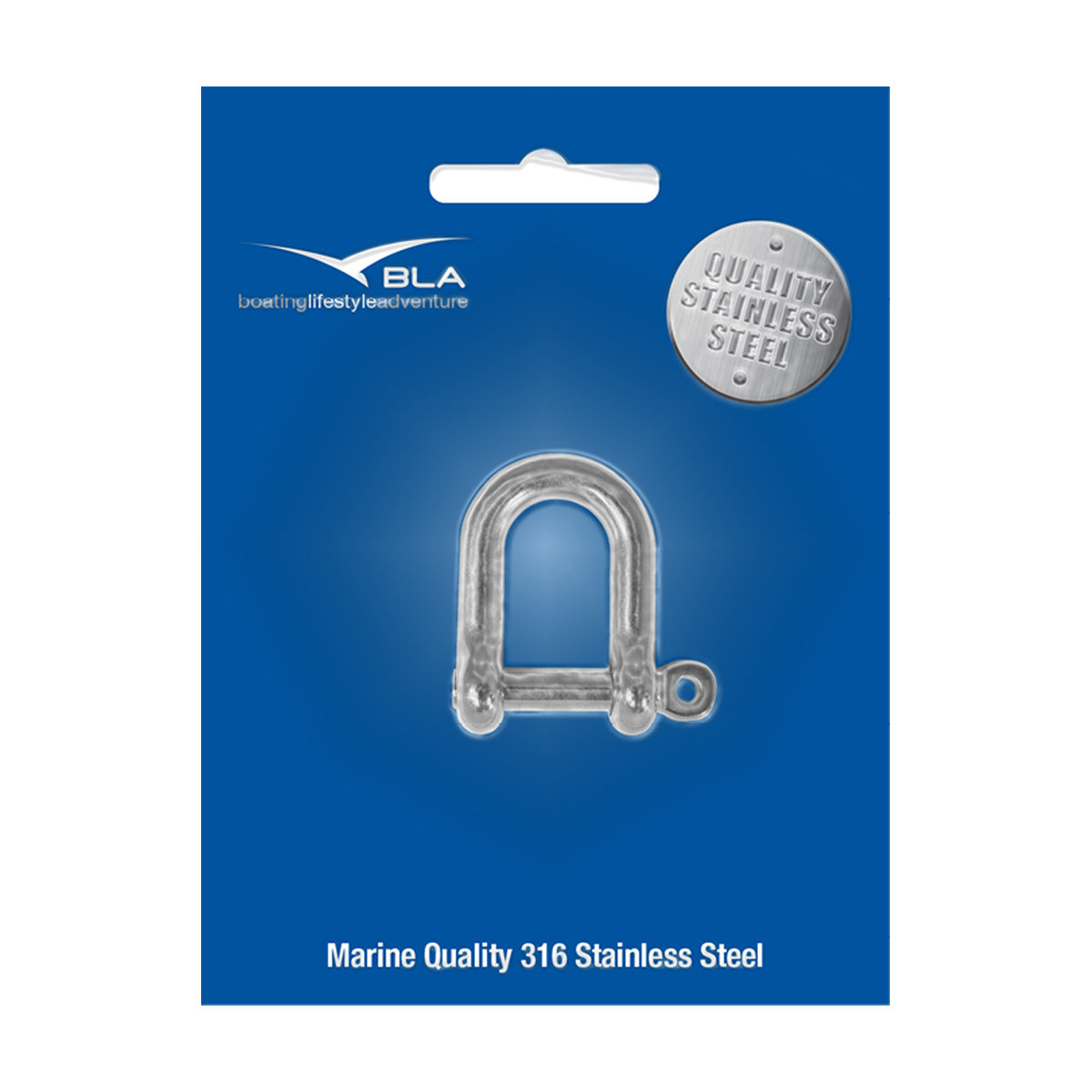

‘P’ – Denotes packaged item
| Pin Dia. | 5mm, 6mm, 8mm, 10mm |
|---|---|
| Pack | 1, 1 Packed, 10 |
