$1,839.00 – $3,649.00

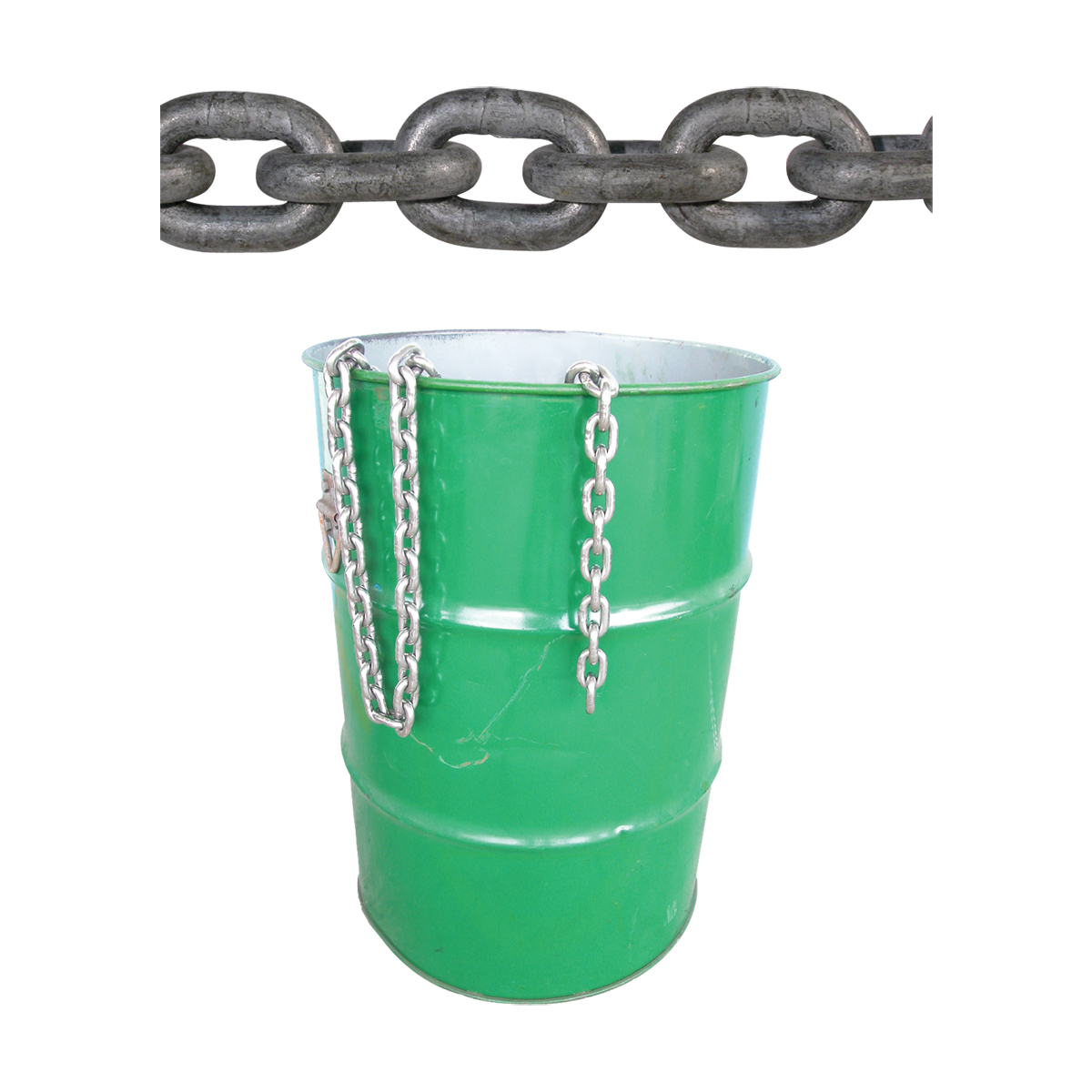

European Standard 13mm DIN766, hot dipped galvanised, short link chain. Recommended for use on a Lewmar 13mm gypsy. DIN 766 chain is the common chain standard for European made gypsies. Sold by the drum (sold by weight, lengths are approximate).
|
BLA CODE
|
QTY APPROX KG / M
|
DIA. MM
|
LENGTH MM
|
WIDTH MM
|
PITCH MM
|
|---|---|---|---|---|---|
145078 |
250 / 63 | 13 | 62 | 47 | 36 |
145079 |
500 / 125 | 13 | 62 | 47 | 36 |
| QTY | 250kg 63m, 500kg 125m |
|---|
You must be logged in to post a review.
Heavy duty 316G stainless steel cross bollards with a centre split for securing anchor chain into the bollard.
In addition, this cross bollard features a captive spring pin for locking in general link chain.
| PART NUMBER | BASE DIMENSIONS | WIDTH | HEIGHT | CHAIN LINK SIZE | MOUNTING HOLES |
|---|---|---|---|---|---|
SAW-29100 |
62mm x 62mm | 122mm | 84mm | 8-10mm Long Link | 4 x 7mm holes with 41mm centres |
| SAW-29102 |
86mm x 86mm | 140mm | 115mm | 10-13mm | 4 x 8mm holes with 57mm centres |
Heavy duty pressed 304G stainless steel bow rollers with 50mm black nylon poly rollers. 29435 – Quick release captive pin retains rope or chain on rollers.
| PART NUMBER | DESCRIPTION | LENGTH | WIDTH |
|---|---|---|---|
SAW-29435 |
Bow roller G304 SS 230mm with pin | 195mm | 55mm |
| SAW-29436 |
Bow roller G304 SS 230mm with pin | 230mm | 55mm |
BLA Sand Anchor – GalvanisedThe most popular of all anchors. Suitable for use in mud or sand. Fitted with retrieval eye for ease of removal if snagged. Stows flat. Heavy duty hot dipped galvanised finish. Anchor size refers to approximate weight in pounds.
Most suitable for use with inflatable boats, canoes, kayaks or small dinghies where space is at a premium. Assembled in seconds. Hot dipped galvanised cast iron construction.
|
BLA CODE
|
WEIGHT KG
|
A MM
|
B MM
|
|---|---|---|---|
146470 |
0.7 | 185 | 165 |
146472 |
1.5 | 310 | 290 |
146474 |
2.5 | 360 | 320 |
146476 |
3.2 | 400 | 360 |
146478 |
4 | 450 | 410 |
