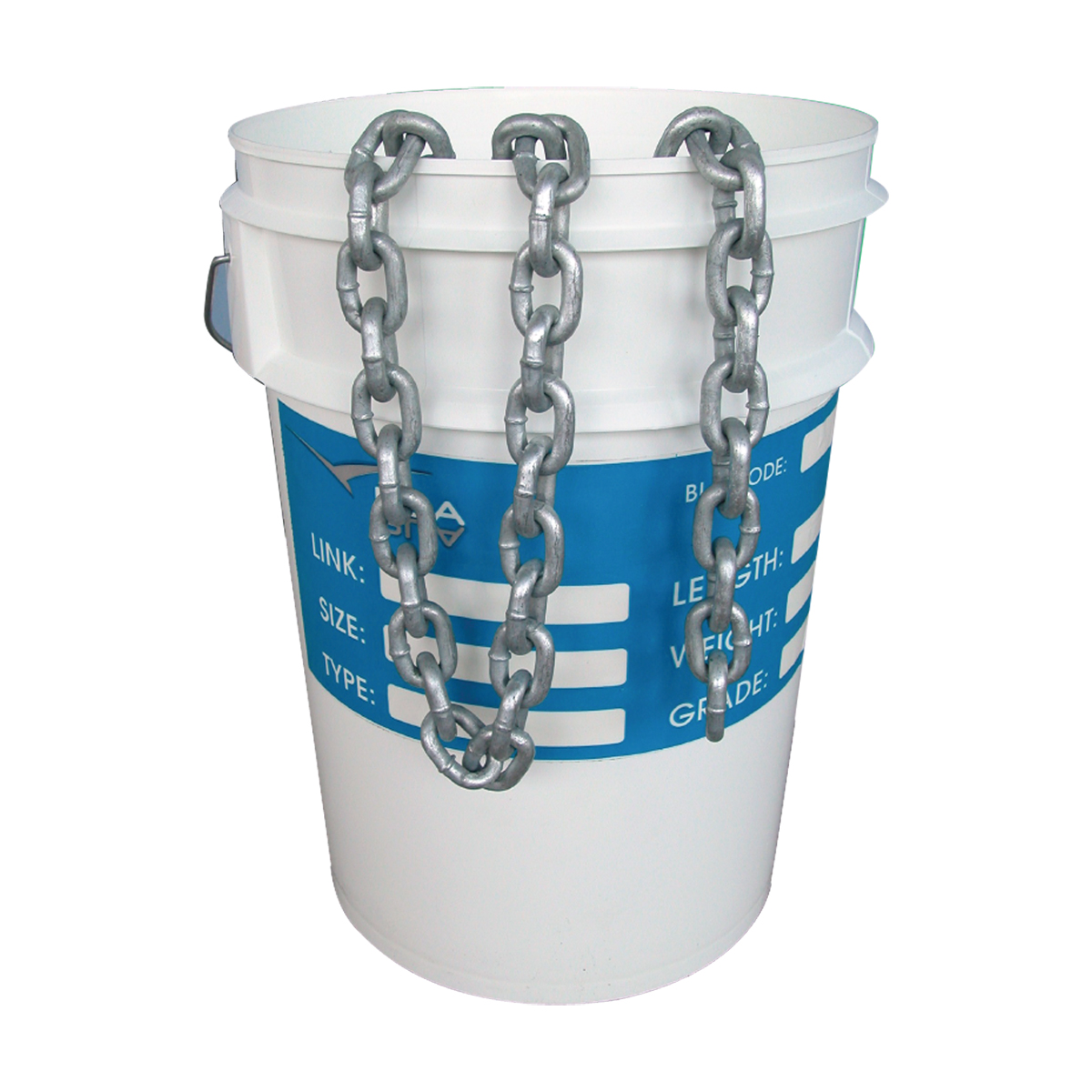

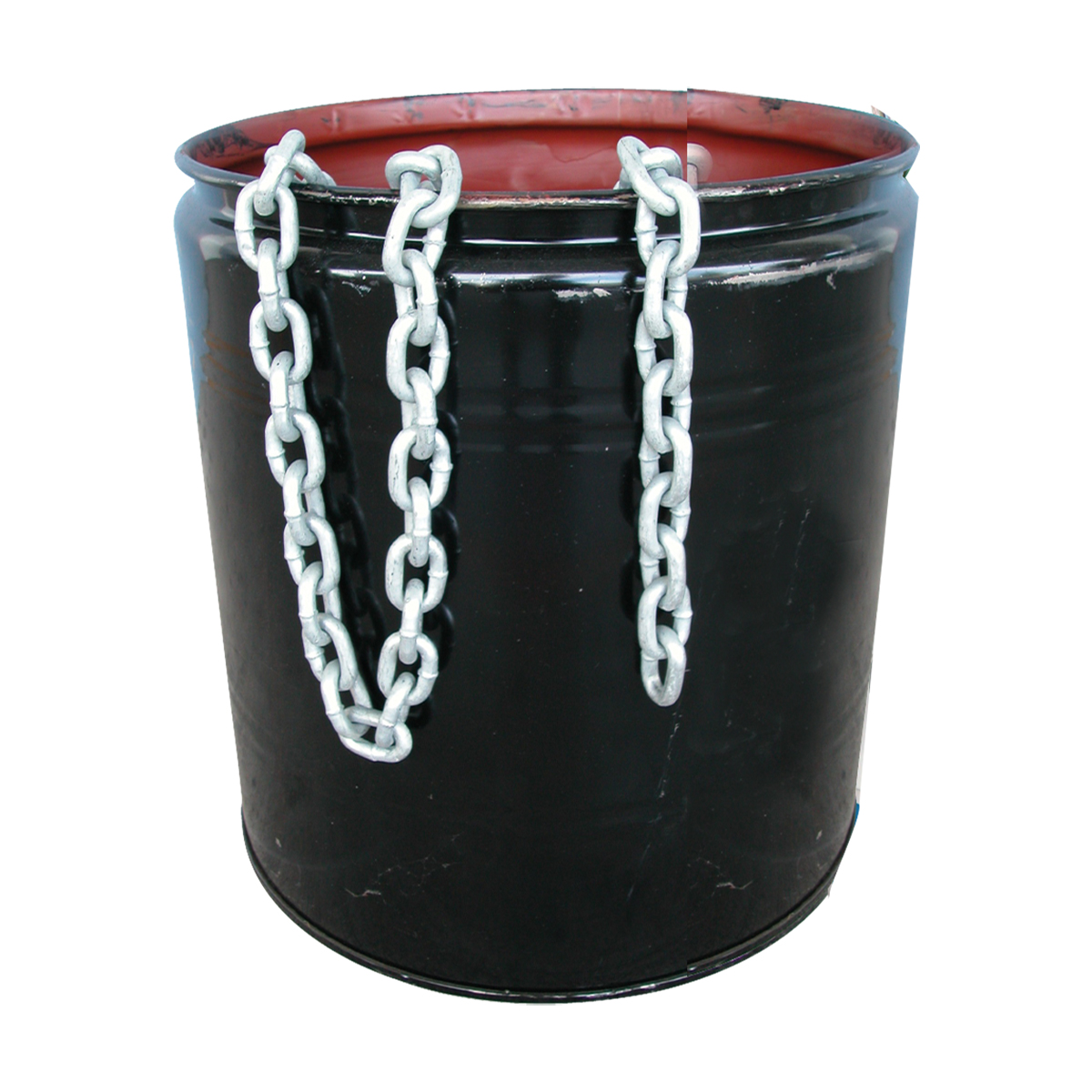

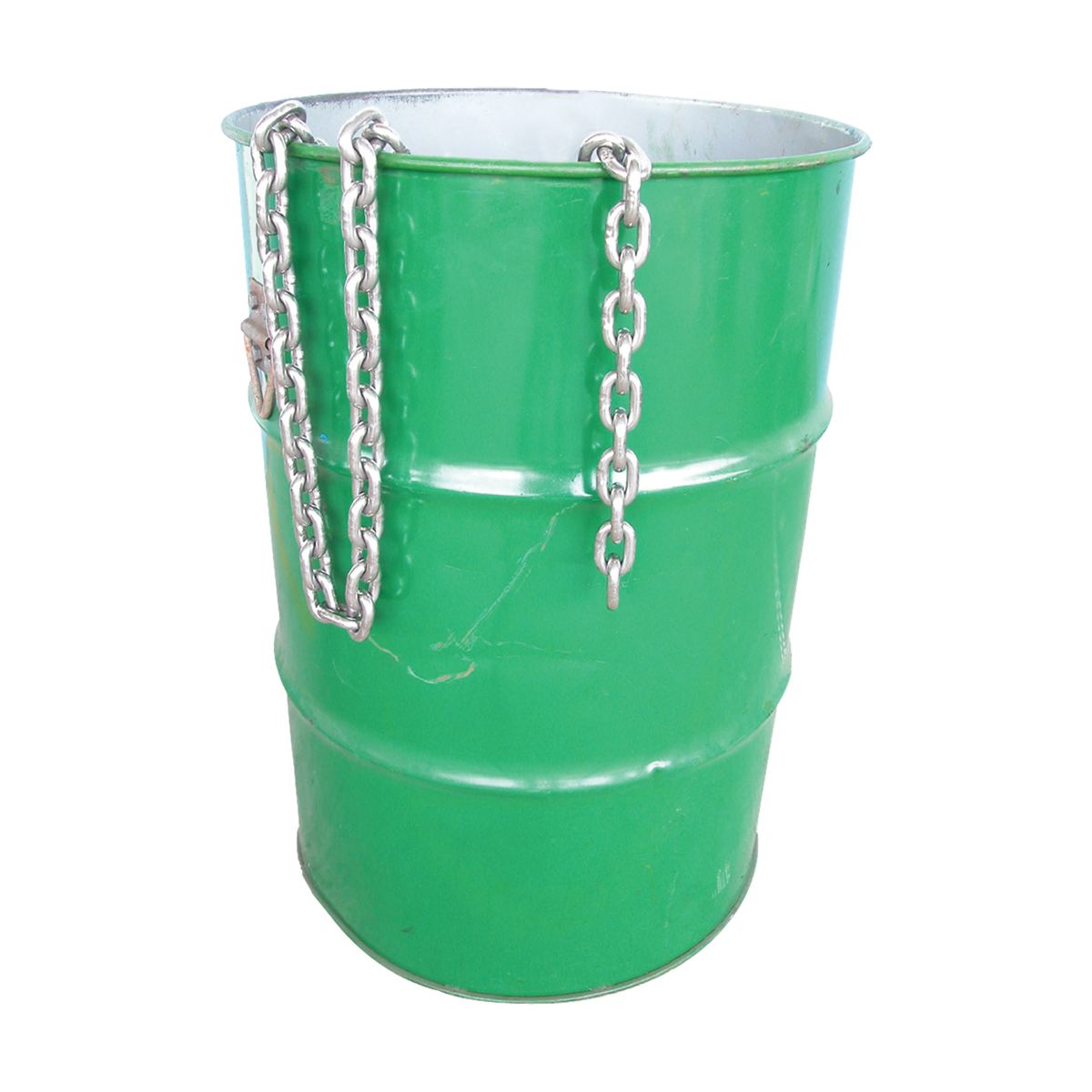

BLA Galvanised Chain – Grade ‘L’ Short Link Full Drums

BLA Galvanised Chain – Grade ‘L’ Short Link Full Drums

Australian Standard 2321 sized Grade ‘L’, hot dipped galvanised, short link chain. Suitable for use with most anchor winches and all chain anchor lines. Sold per metre and by the drum (sold by weight, lengths are approximate). Manufacturers grade ‘L’ certificate available upon request.

BLA CODE	QTY APPROX. KG / M	DIA. MM	LENGTH MM	WIDTH MM	PITCH MM
145054	50 / 54	54	6	30.9	21.5
145056	500 / 540	540	6	30.9	21.5
145059	50 / 33.5	33.5	8	40	27.5
145070	100 / 67	67	8	40	27.5
145064	500 / 335	335	8	40	27.5
145068	100 / 43	43	10	49.5	33.5
145072	500 / 214.5	214.5	10	49.5	33.5
145080	500 / 125	125	13	65	45.5
145062	250 / 62.5	62.5	13	65	45.5
145084	500 / 84	84	16	80	54
