$5.90 – $6.90

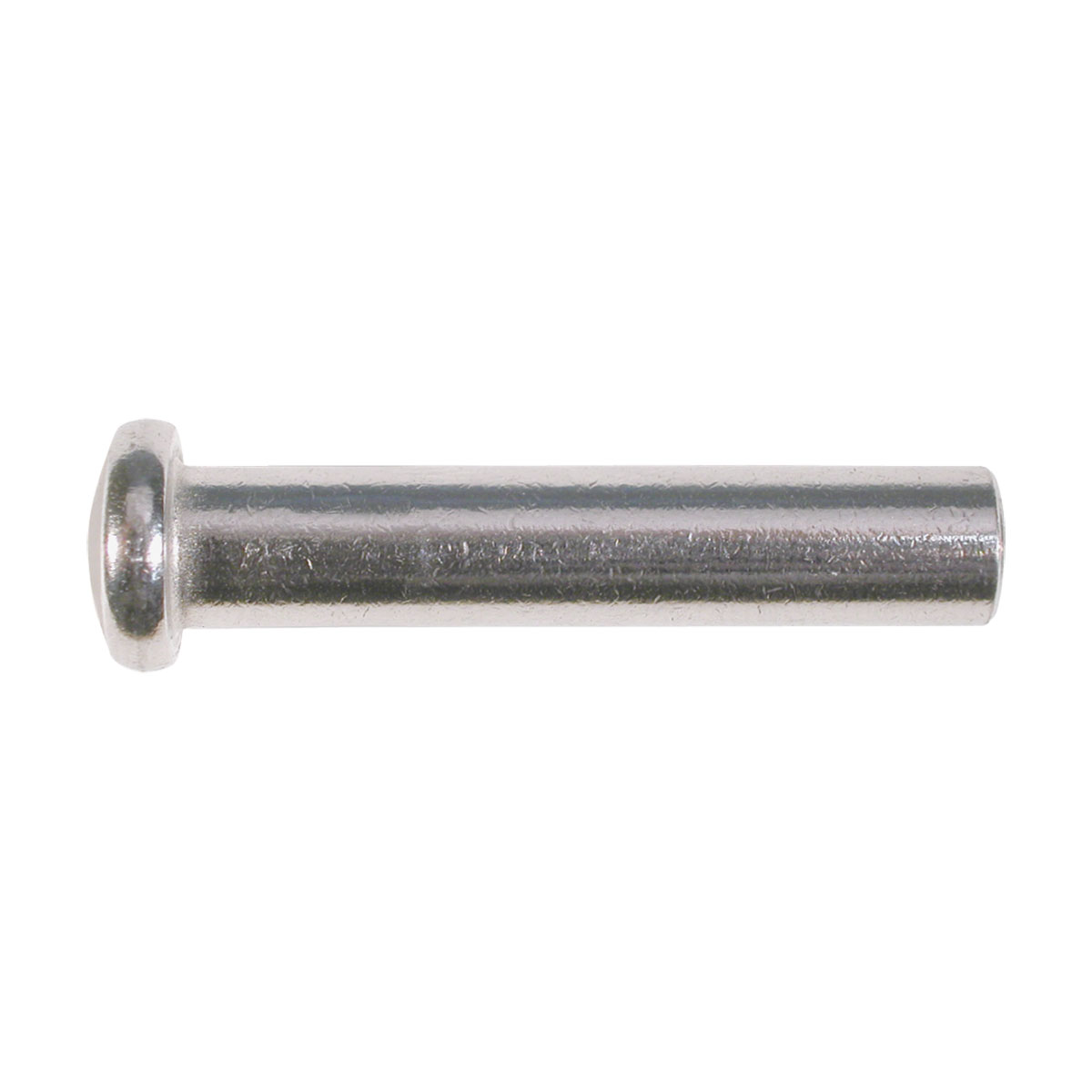

316 grade stainless steel button terminal specifically designed for industrial balustrade work in wire. Simple yet effective termination of one end of the wire that can be exposed or recessed into a support.
|
BLA CODE
|
WIRE DIA. MM
|
WIRE DIA. IN
|
A MM
|
B MM
|
C MM
|
|---|---|---|---|---|---|
BLA-162358 |
3 | – | 5.5 | 8 | 32 |
BLA-162360 |
– | 1/8 | 6.35 | 10 | 45 |
| Length (c) | 32mm, 45mm |
|---|
Stainless steel two piece chain joining links to suit standard link chain type only. Easy to install by simply hammering over the four pins and finish by dollying over for a smooth solid join. Available in two common sizes to suit 8mm and 10mm standard link chain.
|
BLA CODE
|
SUIT CHAIN SIZE MM
|
A MM
|
B MM
|
C MM
|
D MM
|
E MM
|
F MM
|
|---|---|---|---|---|---|---|---|
| BLA-143332 | 8 | 39 | 27 | 7.4 | 24 | 13 | 6 |
BLA-143334 |
10 | 47 | 33 | 9.10 | 28 | 15 | 9 |
316 grade stainless steel. Stepped shank provides bearing surface for the curved top plate. Backing plate and nuts included.
|
BLA CODE
|
A MM
|
B MM
|
C MM
|
D MM
|
THREAD
|
|---|---|---|---|---|---|
BLA-165013 |
10 | 76 | 35 | 25 | M8 |
BLA-165014 |
10 | 90 | 50 | 25 | M8 |
BLA-165016 |
10 | 115 | 75 | 25 | M8 |
BLA-165017 |
10 | 140 | 100 | 25 | M8 |
Polished 304 grade stainless steel welded ëDí ring. Ideal for use with webbing.
|
BLA CODE
|
A MM
|
B MM
|
C MM
|
|---|---|---|---|
BLA-165224 |
4 | 30 | 25 |
BLA-165225 |
5 | 31 | 25 |
BLA-165226 |
5 | 55 | 50 |
BLA-165228 |
6 | 47 | 40 |
BLA-165232 |
6 | 60 | 50 |
BLA-165240 |
8 | 60 | 50 |
