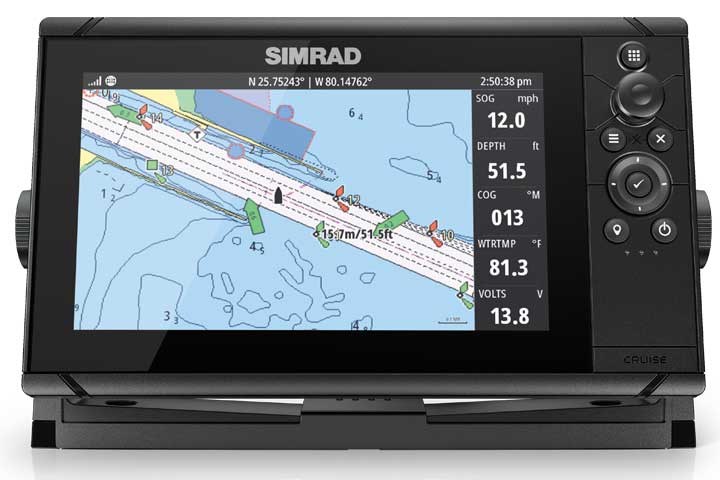

Simrad Cruise 5 with Aus/NZ C-MAP chart and 83/200 Transducer


Price Match

$769.00

Compare

Simrad Cruise 5 with Aus/NZ C-MAP chart and 83/200 Transducer – Smooth Navigation Between Menus

Cruise

Simrad Cruise is the most intuitive, easy-to-use chartplotter available. Everything you need for simple and straightforward GPS navigation is right inside the box – sunlight viewable display with US coastal charts, mounting bracket and a sonar transducer. Simrad Cruise can display charts, navigation and sonar in split-screen view, or separately in full screen. Rotary dial and keypad controls make navigating through menus, creating routes and accessing temperature, speed, depth readings and battery voltage effortless.

Smooth Navigation Between Menus

Simrad Cruise features intuitive menus, so you can quickly find the information you need, when you need it, and rotary dial and keypad controls make navigating from screen to screen effortless. Put away the instruction manual; with Simrad Cruise, you simply turn on your display and go!


Always on course

Know where you are and where you are going! Simrad Cruise comes complete with all the charts you need to enjoy your day on the water. Want more detail? Choose from a wide range of enhanced charts from C-MAP® and Navionics®, and enjoy advanced features like C-MAP® Easy Routing for a true navigation experience.


Everything in view

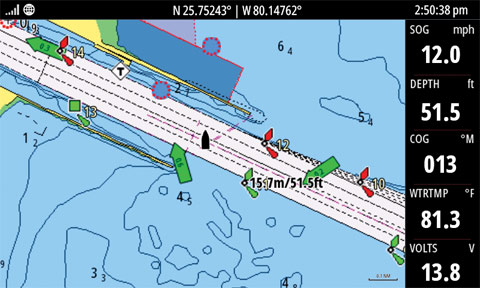

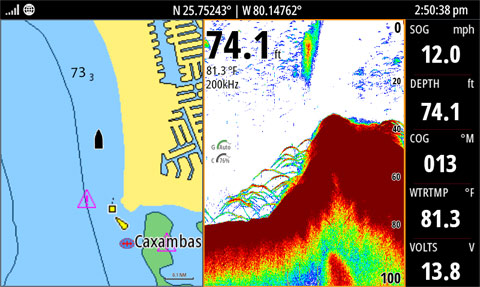

See the details you want the way you want them! Simrad Cruise offers both full and split-screen views, so you can easily display the information you need. Plotting your course? Select full screen charts for a maximum view of your surroundings. Not sure what’s underneath you? Choose full screen sonar for a clear view of the bottom and automatic depth tracking. Want to see it all? Use the split-screen option for the perfect combination of chart and sonar data.


Stay informed

Simrad Cruise gives you access to the information you need for a safe and enjoyable time on the water. Depth readings, position, battery voltage and other critical boat information, can all be monitored on your screen for quick reference and situational awareness.


Key Features

  • Cruise confidently with simple menus plus easy-to-use rotary dial and keypad controls
  • Pre-selected split screens to keep important data in view
  • Display depth, position, battery voltage and more
  • Bundled with C-MAP chart of Australia & New Zealand
  • Supports a wide range of enhanced charts from C-MAP® and Navionics®

What’s in the box?

  • HOOK² 4 & 5 / HOOK Reveal 5 / Cruise 5 Bracket
  • HOOK² / Reveal & Cruise Power Cable (5/7/9/12)
  • Cruise / Hook² 83/200 Skimmer Transducer
  • C-MAP® DISCOVER™ – Australia & New Zealand Continental

Installation Guide

Operator Manual

SKU: 000-15718-001 Categories: , Tag:
Weight 1.8 kg

Display


Backlight Color White
Display Resolution 800×480
Screen Brightness 800 nits
Viewing Angles 70° top/bottom, 70° left/right

Physical


Dimensions W x H x D 184.5 mm x 142.3 x 117.9 mm (7.26″ x 5.6″ x 4.64″) (with bracket)
Mounting Type Bracket or Panel

Electrical


Power Consumption max 12.2 W
Recommended Fuse Rating 3 A
Supply Voltage 10 – 17 V DC

Environment


Operating Temperature Range -15°C to +55°C (5°F to 131°F)
Waterproof Rating IPX6 and 7

Connectivity


Bluetooth None
Ethernet Ports None
Connectivity Wi Fi None
N2K PG Ns None
NMEA 0183 Sentences supported No
NMEA 2000 Connectivity None
PC Connectivity None
SD Card Storage 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
Video None

MFD


AIS N/A
Autopilot N/A
Cartography included C-MAP chart of Australia & New Zealand
Digital Switching N/A
GPS Internal, 1Hz, WAAS, MSAS, EGNOS
Multimedia N/A
Sonar Compatibility Integrated CHIRP. 8 Pin push fit connector
Weather N/A

Other


Interface Directional cursor button and rotary dial
Languages Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishOther languages supported by Unlock:Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic,Farsi
Warranty Period 2 Years
