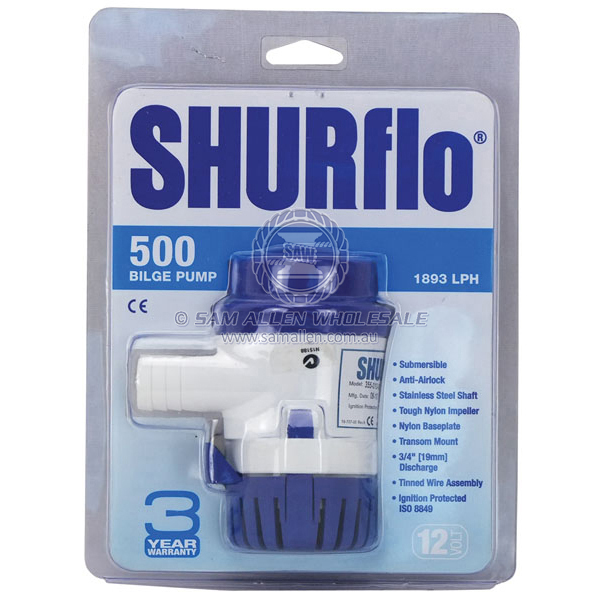

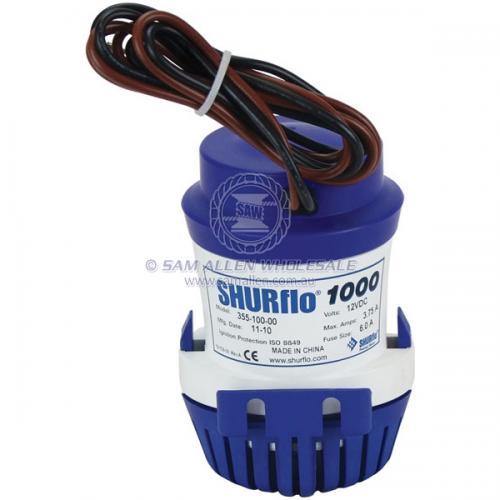

SHURflo Bilge Pumps
• Fully submersible with anti-airlock protection.
• Stainless steel shaft.
• Tough nylon impeller and baseplate construction.
• Transom mount with 1.8m (6ft) tinned wire for easy installation.
• Mounting clip suits 23224 SHURflo Bilge Pump Float Switch*.
• Built in mounting.
• CE Certified, Ignition Protected ISO 8846.
• RCM Certified to Australian Standards.
| Part No. | SAW-232100 | SAW-232101 | SAW-232102 |
| Length | – | – | – |

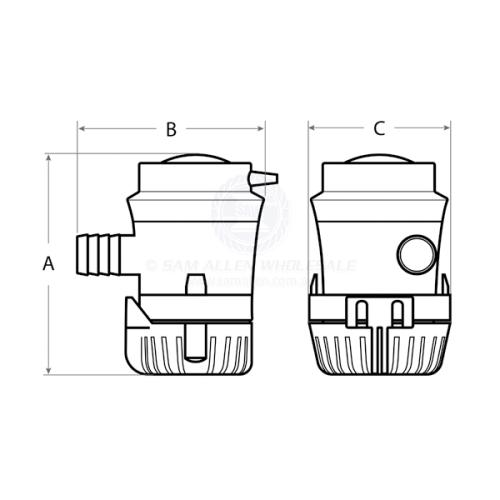

| Width | 74mm (C) | 74mm (C) | 74mm (C) |
| Height | 112mm (A) | 112mm (A) | 112mm (A) |
| Depth | 96mm (B) | 96mm (B) | 96mm (B) |
| Volts | 12V | 12V | 12V |
| Amps (Max) | 1.8 Amp | 3.2 Amp | 3.2 Amp |
| Series | 500 | 700 | 1000 |
| Max. Head | 7.5ft | 10ft | 11ft |
| Outlet Dia. | 3/4 inch | 3/4 inch | 1 ⅛ inch |
| Head 0ft | 500 GPH (1893 LPH) | 700 GPH (2650 LPH) | 1000 GPH (3785 LPH) |
| Head 3ft | 430 GPH (1628 LPH) | 600 GPH (2271 LPH) | 840 GPH (3180 LPH) |
