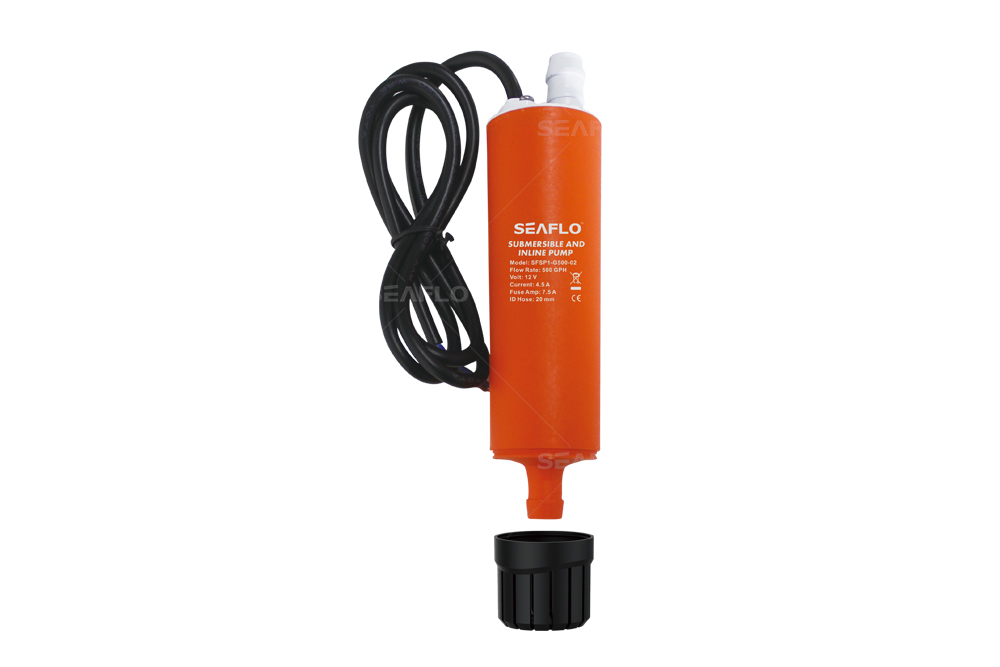

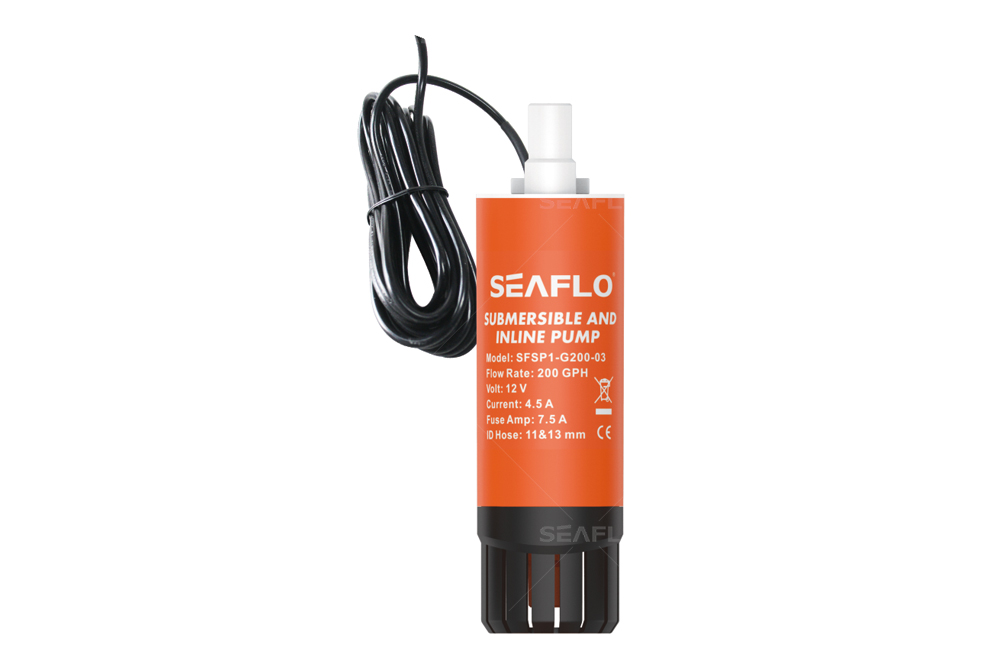

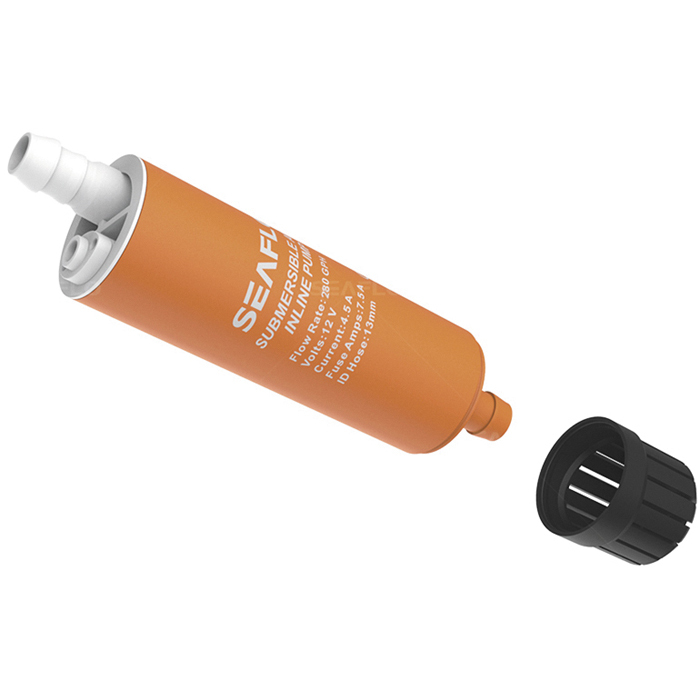

SEAFLO Submersible In Line Pump 200GPH
SEAFLO DC 12 voltage inline submersible and inline pump is easy to install and carry. Also, the pump is able to pump fresh water and sea water. With long life and quiet perform motor, allows it to work in an quiet environment. The food grade material allows it to work with wide range of application.
BENEFITS & FEATURES
|
– Able to pump 80°C sea water – Able to run about 20 minutes – Portable to carry on |
– Easy installation – Intermittent duty – 1m long Leads |
TYPICAL APPLICATIONS
Marine 20ft, RV, Medical, Water Research, High pressure washing, etc.
DIMENSIONS
APPLICATION
PERFORMANCE
.jpg)
STANDARD PUMP CONFIGURATIONS
Model |
Flow Rate |
Voltage |
Max Draw |
Fuse Amps |
Head |
Wire Lead |
Outlet Dia |
N.W. / G.W. |
SFSP1-G200-03B |
187 GPH |
12 V |
4.0 A |
7.5 A |
16.4′ (5 m) |
3′ (1 m) |
1/2″ |
0.3KG/0.36 KG |
PERFORMANCE
|
 |
| Key | Description | Quantity |
| 1 | Strainer | 1 |
| 2 | Pump Cover | 1 |
| 3 | Impeller | 1 |
| 4 | Impeller Cover | 1 |
| 5 | Seal | 1 |
| 6 | Oil Seal | 1 |
| 7 | Washer | 1 |
| 8 | Motor | 1 |
| 9 | Motor Cover | 1 |
| 10 | Motor Base | 1 |
| 11 | Seal | 1 |
| 12 | Seal | 1 |
| 13 | Seal | 1 |
| 14 | Output | 1 |
| 15 | Seal | 1 |
| 16 | Wire Buckle | 1 |
