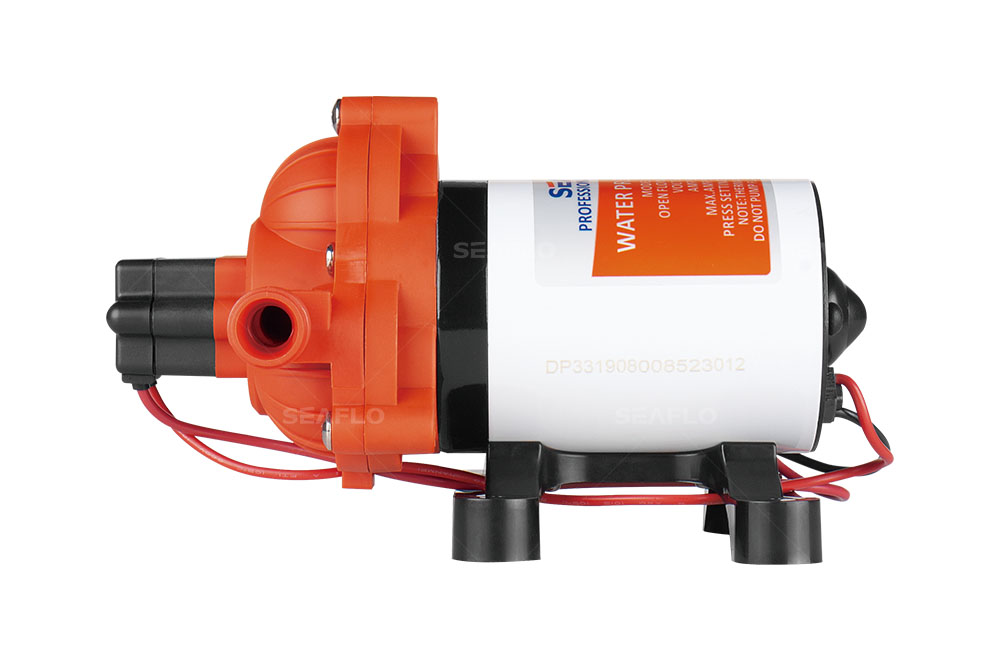

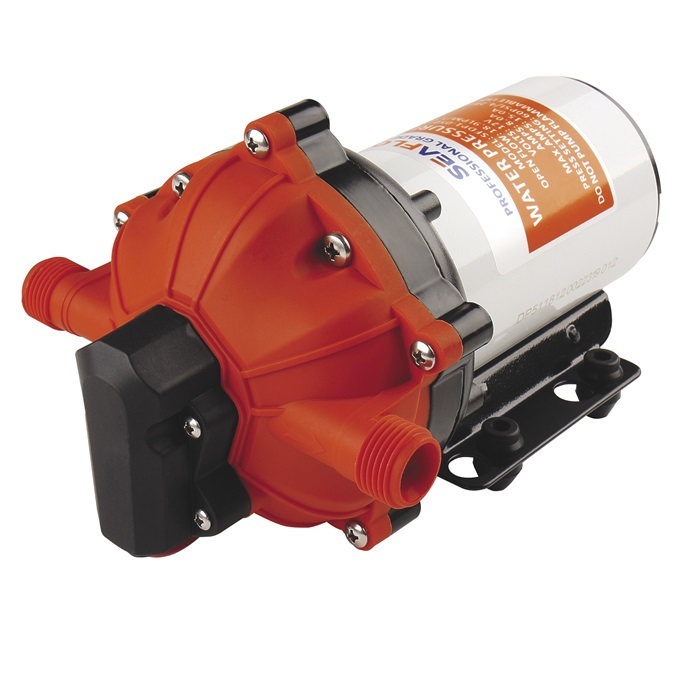

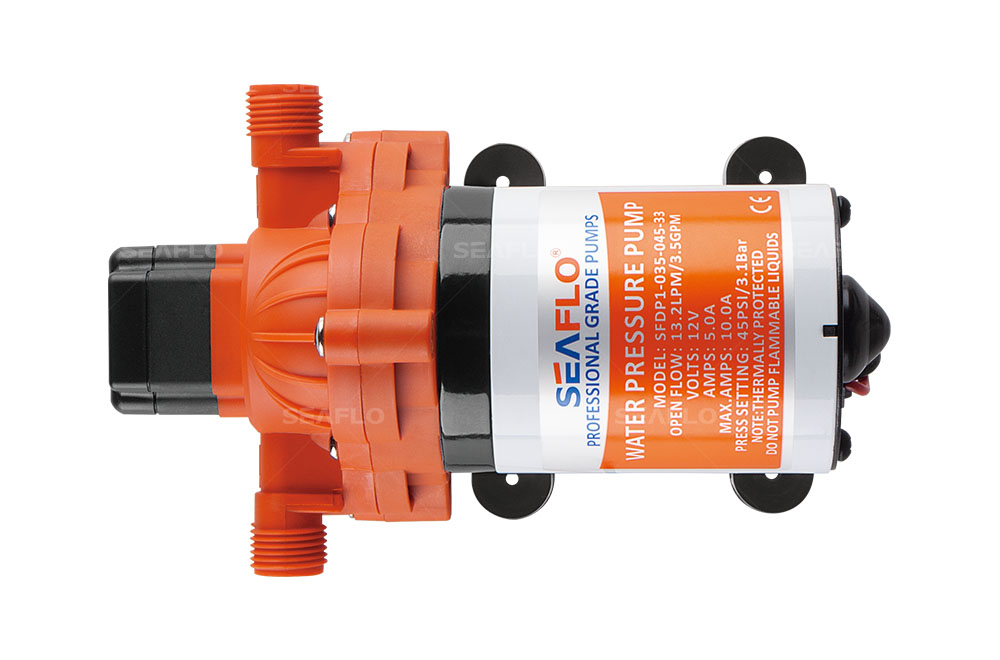

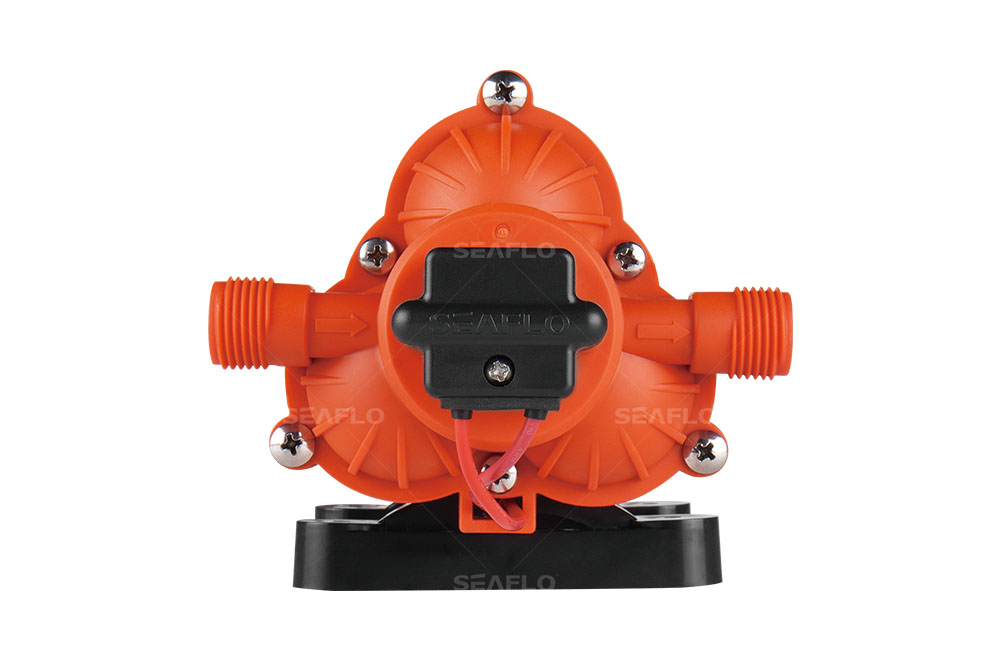

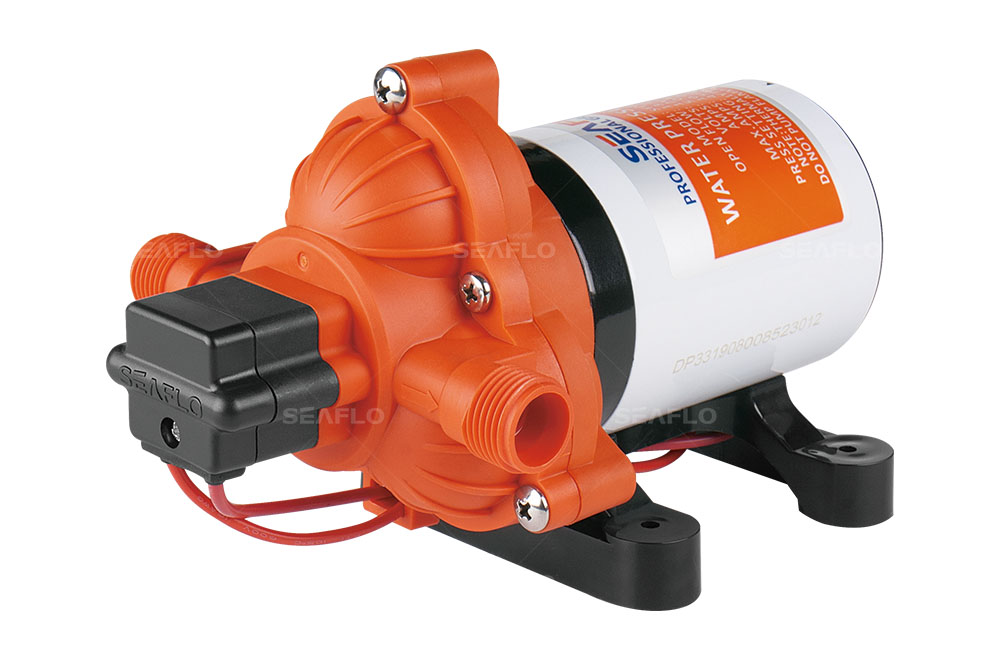

SEAFLO 3.0GPM 45PSI Water Pressure Pump
The 33-Series is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. This 3-chamber diaphragm pump provides up to 3.0 gallons per minute and is capable of self-priming up to 6vertical feet, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They’re easy to install, service and winterize.
MORE FEATURES & BENEFITS
| -On-demand use -Capable of supplying1-2 fixtures -Adjustable pressure switch -Continuous Duty&Run dry safe |
– Self priming -16AWG,4.5＂long Leads -2 Year Warranty – Meets or exceeds RoHS, SGS, and ISO standards |
.jpg)
TYPICAL APPLICATIONS
Marine,RV,Agricutural Spraying,General Industial,Filtration,Beverage Processing,Solar Water System.
| PUMP | |
| Type | 3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 45 PSI : 35 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | 1/2″-14 MNPT |
| Weight | 4.2 lbs (1.9 kg) |
| MOTOR | |
| Leads | 16 AWG, 13″ (33 cm) long with 2-Pin connector / Leads |
| Duty Cycle | Intermittent |
| Max.Amp Draw | 8.0 A |
| Fuse | 12.0 A |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow （GPM/LPM） |
Control Type | Max Draw | Shut-off Pressure （PSI/BAR) |
Valves | Diaphragm | Ports | Wire Connections |
| SFDP1-030-045-33 | 12V | 3.0 / 11.3 | Switch | 8.0A | 45 / 3.1 | EPDM | Santoprene | 1/2″-14 MNPT | 2-Pin/Leads |
PERFORMANCE
2.8 GPM
|
|||||||||||||||||||||||||||||||||||||||||
.jpg)
HEAT RISE
DIMENSIONS
.jpg)
PRODUCT DETAILS
| Key | Description | Quantity |
| A | Pump Head Assembly | 1 |
| B | Valve Assembly | 1 |
| C | Diaphragm Assembly | 1 |
| D | Motor Assembly | 1 |
| 1 | Pressure switch | 1 |
| 2 | Diaphragm of Pressure Switch | 1 |
| 3 | Pump Head | 1 |
| 4 | Diaphragm | 1 |
| 5 | Rubber Feet | 1 |
| 6 | Motor | 1 |
