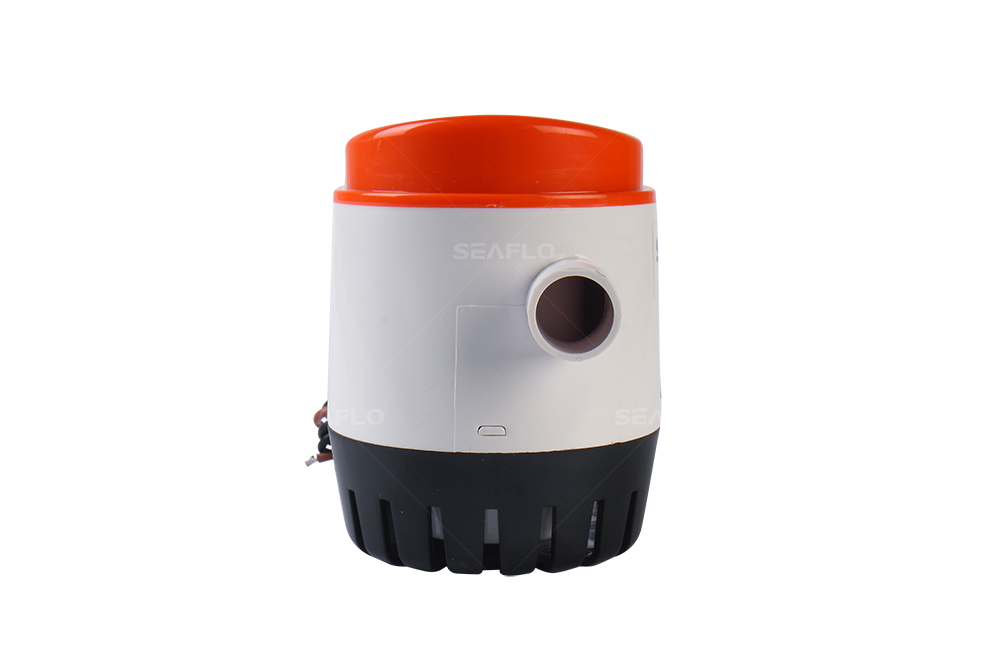

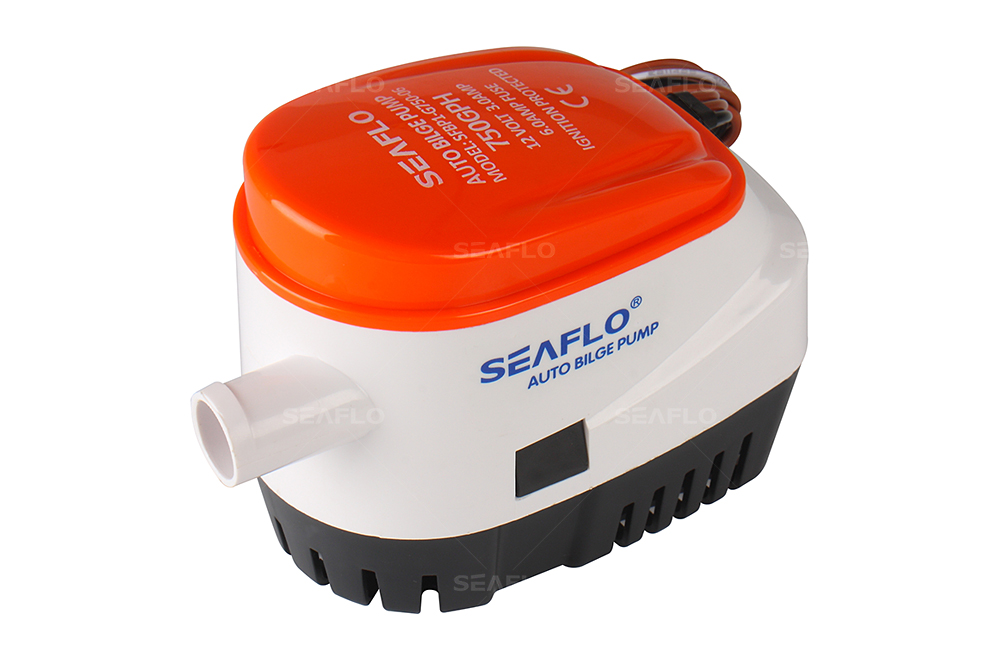

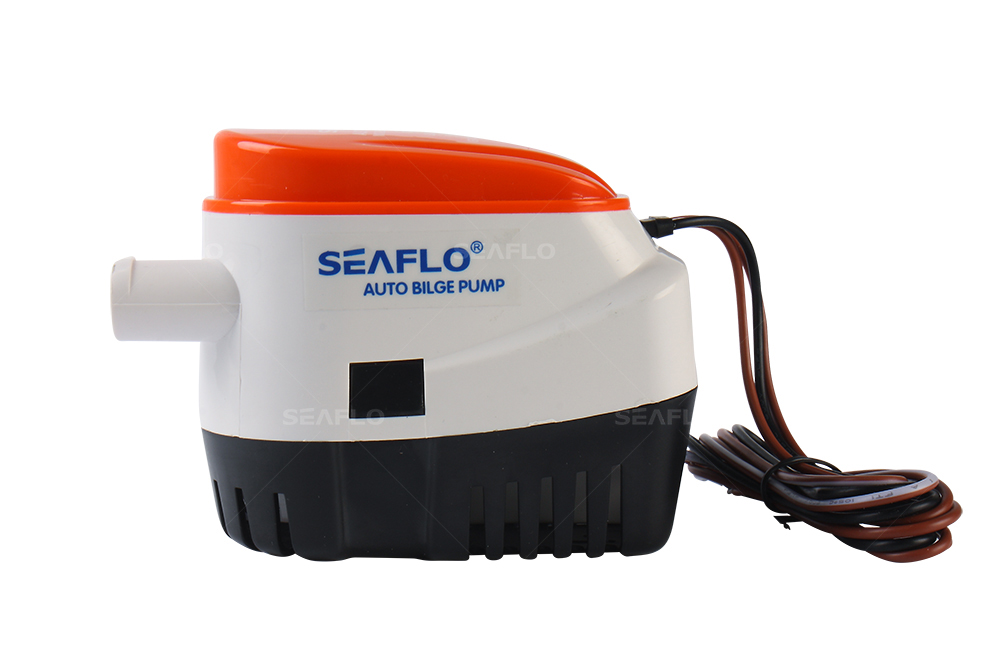

SEAFLO 12V Auto Bilge Pump – 750GPH
Seaflo 750GPH Automatic Submersible Boat Bilge Water Pump.All-in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed.
MORE FEATURES
|
- 2 Year Warranty
- Snap-off strainer base for easy cleaning
- All-in-one pump & switch-No float switch required
- Pump turns on when water level rises & shuts off when water is removed
|
- Anti-fouling impeller
- 18AWG,1 m long Leads
- 110℉ (43℃) Max
- Will not pump oil-straight motor oil that enters the bilge will not turn the pump on
|
TYPICAL APPLICATIONS
Marine, Medical, Pond, Water Research, etc.
DIMENSIONS
STANDARD PUMP CONFIGURATIONS
| Model |
Flow Rate |
Voltage |
Max Draw |
Fuse Amps |
Head |
Wire Lead |
Outlet Dia |
N.W. / G.W. |
| SFBP1-G750-06 |
676 GPH |
12 V |
5.0 A |
5.0 A |
8.2′ (2.5 m) |
3′ (1 m) |
3/4″ |
0.47/0.52 kg |
| SFBP2-G750-06 |
660 GPH |
24 V |
2.9 A |
3.0 A |
8.2′ (2.5 m) |
3′ (1 m) |
3/4″ |
0.47/0.52 kg |
PERFORMANCE
750GPH 12V
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
| GPH |
LPH |
| OPEN |
2.48 |
676 |
2558 |
0 |
| 12 |
3.11 |
545 |
2062 |
0.5 |
| 12 |
3.78 |
411 |
1555 |
1 |
| 12 |
4.26 |
284 |
1075 |
1.5 |
| 12 |
4.66 |
103 |
390 |
2 |
| 12 |
5 |
0 |
0 |
2.5 |
|
|
750GPH 24V
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
| GPH |
LPH |
| OPEN |
1.3 |
660 |
2498 |
0 |
| 24 |
1.6 |
533 |
2017 |
0.5 |
| 24 |
1.94 |
400 |
1514 |
1 |
| 24 |
2.31 |
263 |
995 |
1.5 |
| 24 |
2.54 |
86 |
325 |
2 |
| 24 |
2.9 |
0 |
0 |
2.5 |
|
| Key |
Description |
Quantity |
| 1 |
Pump Cover |
1 |
| 2 |
Motor Bracket |
1 |
| 3 |
Motor |
2 |
| 4 |
Motor Oil Seal |
1 |
| 5 |
Wearplate |
1 |
| 6 |
Switch Assembly |
1 |
| 7 |
Pump Housing |
1 |
| 8 |
Impeller |
1 |
| 9 |
Impeller Cover |
1 |
| 10 |
Strainer |
1 |
| 11 |
Rotor |
1 |
| 12 |
Round Wearplate |
1 |
| 13 |
Oil Seal |
1 |
| 14 |
Float |
1 |
| 15 |
Knob |
1 |
