• Independent source terminal.
• Nylon and nickel plated brass.
• M5 mounting screws
• M4 terminal screws.
| PART NUMBER | STUD TYPE | Max voltage | amps |

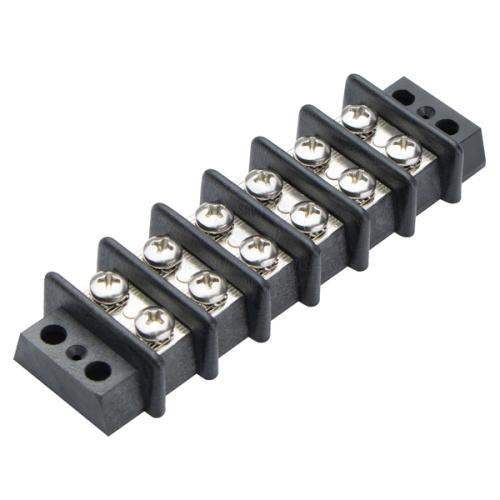

SAW-302290 |
6 gang isolated terminal block | 300 | 30 |
| SAW-302290-10 | 6 gang isolated terminal block – Pack of 10 | 300 | 30 |

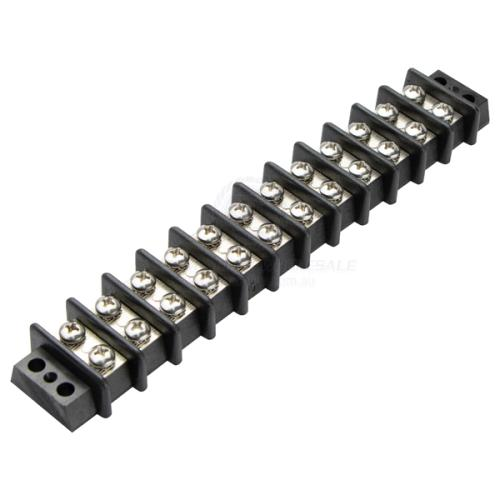

SAW-302291 |
12 gang isolated terminal block | 300 | 30 |
| SAW-302291-10 | 12 gang isolated terminal block – Pack of 10 | 300 | 30 |
| Options | 6 gang, 12 gang |
|---|---|
| Pack Size | Pack of 1, Pack of 10 |
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113142)
Features:
BLA Code: 113142
Circuits: 8
Overall Size wxh mm: 127×200
Cut Out Size wxh mm: 107×180
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 2
10 amp – 2
15 amp – 3
20 amp – 1
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113151)
Features:
BLA Code: 113151
Circuits: 12
Overall Size wxh mm: 351×115
Cut Out Size wxh mm: 331×95
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 3
10 amp – 4
15 amp – 4
25 amp – 1
Battery Boxes – Small (23661)
• Vented battery box made from hi-density reinforced polyethylene which is impervious to battery acids.
• Moulded carry handle.
• Moulded lid to provide easy cable setup.
• Includes webbing strap and stainless steel fastenings.
Features:
Part No.: 23661
Description: Standard Battery Box
Outer Diamensions (mm): 335 x 220 x 250
Inside Dimensions (WxH) mm: 290 x 195 x 195
