SAW Fuses – Terminal Mount Fuse Holder and Fuses

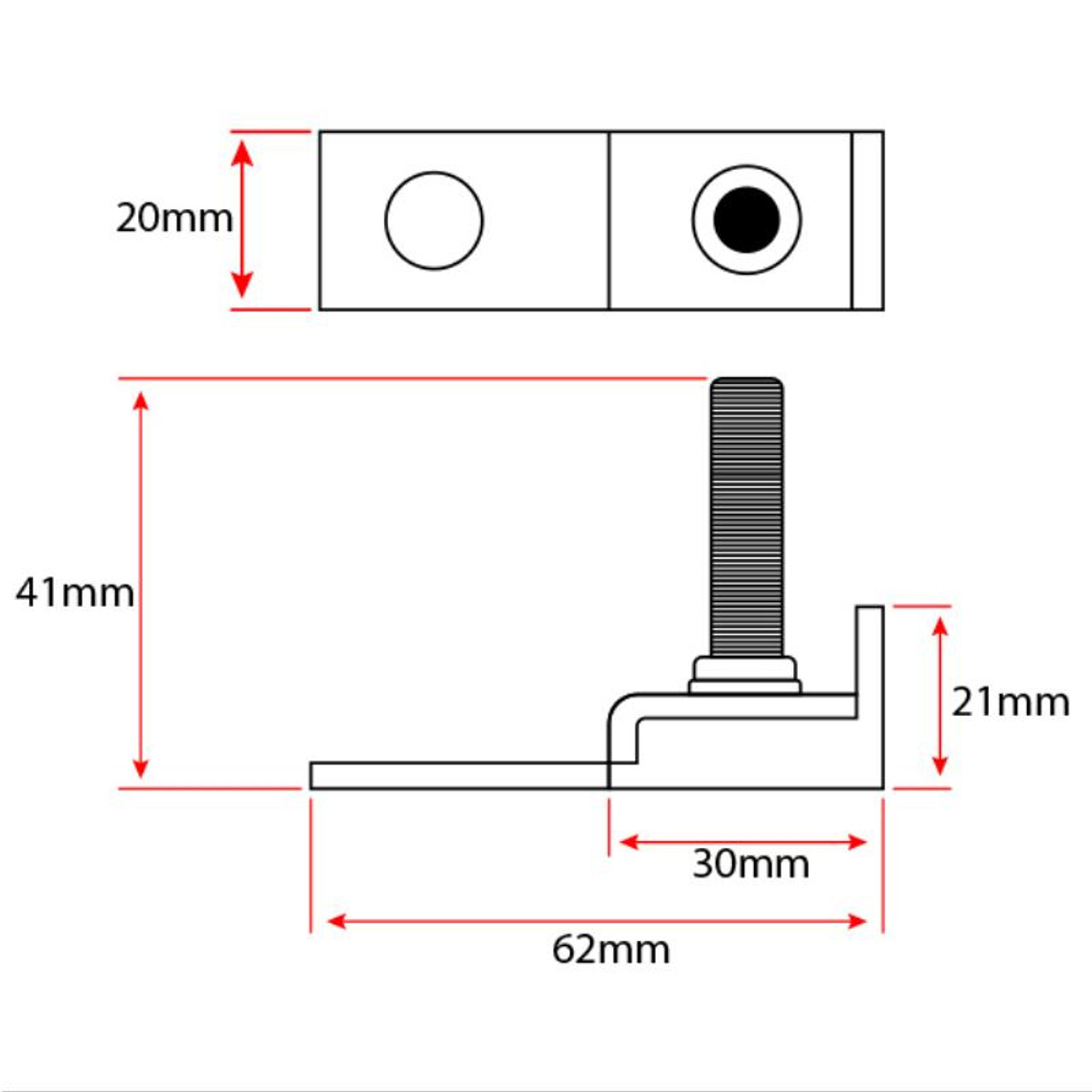

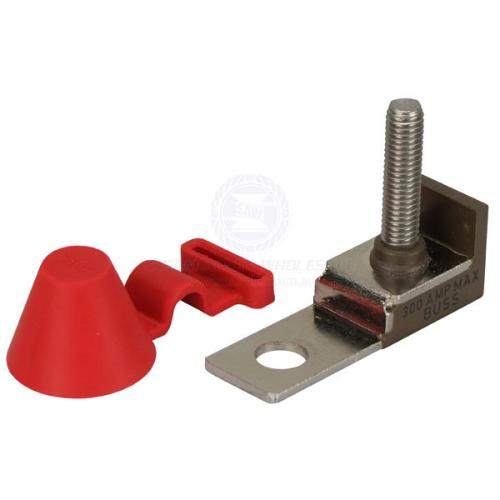

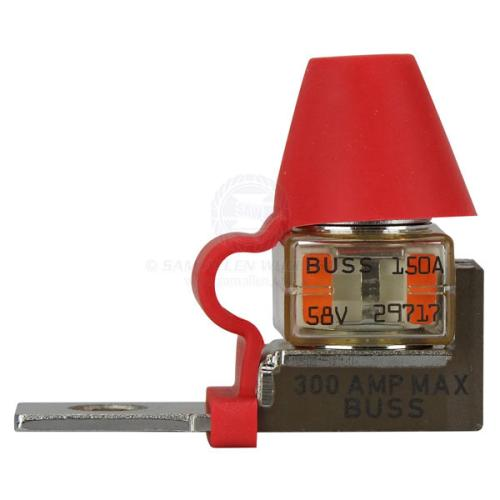

Terminal Mount Fuse Holder
• Heavy-duty protection where space is important.
• Fits any battery terminal that has a 3/8 inch post.
• SAE J1171 compliant.

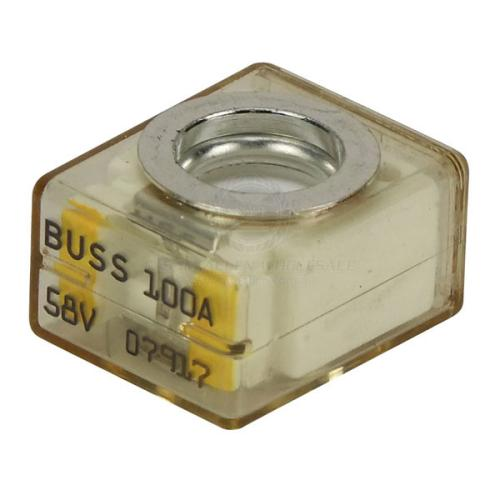

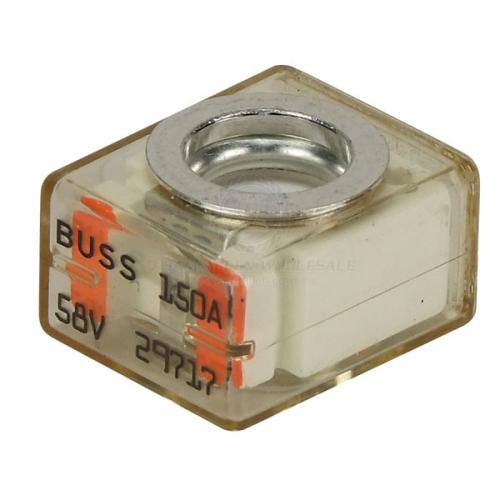

Fuses
• Designed for the most demanding environments providing high current protection in the tightest space constraints.
• Suitable for main and auxiliary circuit protection such as alternator outputs, starter motor inputs and accessory circuits.
• Breaking capacities meet the requirements of conventional batteries and 12V, 24V and 42V electrical networks.
• Full range circuit protection for automotive and marine applications.
• Ignition protected.
• Interrupt rating: 10,000A – 14V.
• Clear housing for easy inspection.
• UL-rated 94VO thermoplastic housing.
• Fuses are colour coded for easy recognition.
• IP66 rated.
• SAE J1171 compliant and ISO 8820-6
| PART NUMBER | VOLTAGE RATING | AMP RANGE RATING | TERMINAL MOUNT SIZE |
SAW-720990 |
Max 58 | 30-300 | 3/8″ |
SAW-720992 |
— | 100 | — |
SAW-720994 |
— | 150 | — |
