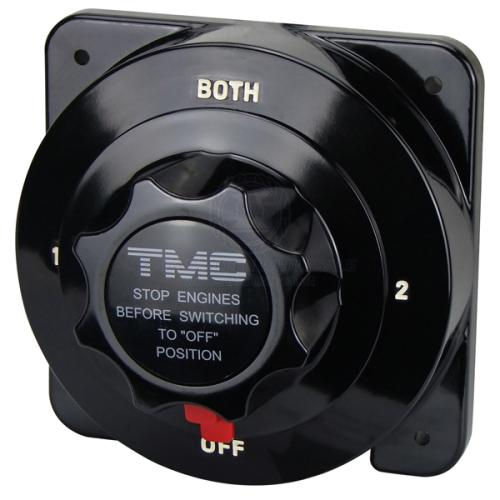

• 4 position switch battery 1/battery 2/ both/ all off.
• Click stop to all positions.
• Vapour proof housing.
• Rated 300 amps momentary and 175 amps continuous at 12V.

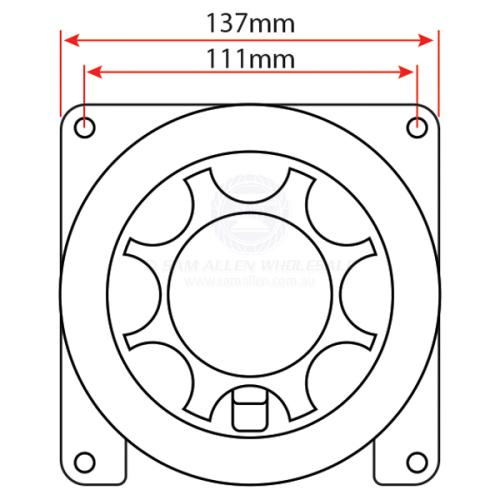

| Part No. | SAW-23122 |
| Length | 135mm |
| Width | 135mm |
| Volts | 12V/24V |
| Max. Continuous Load | 175 Amps 12V |
| Depth | 72mm |
| Pack Size | Pack of 1, Pack of 10 |
|---|
Battery Box Large Pre-Wired ‘Power Centre’ (23663)
• Vented battery box made from hi-density reinforced polyethylene which is impervious to battery acids.
• Pre wired “Power Centre” provides lit display of battery charge.
• Moulded carry handle.
• Includes webbing strap and stainless steel fastenings.
• External positive and negative connection terminals, PVC coated.
• 2 x cig socket power outlets.
Features:
Part No.: 23663
Description: Powered Battery Box
Outer Diamensions (mm): 410 x 230 x 300
Inner Diamensions (mm): 340 x 190 x 225
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113152)
Features:
BLA Code: 113152
Circuits: 12
Overall Size wxh mm: 239×200
Cut Out Size wxh mm: 219×180
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 3
10 amp – 4
15 amp – 4
25 amp – 1
