SAW Battery Switch – 2 Position Concealed
• Removable key, when in the off position.
• Ignition protected.
• M10 stud size.
• Amp range:
500A @ 12V for 10 seconds.
250A @ 24V for 10 seconds.
• 2 position features – On / Off.
| PART NUMBER | DESCRIPTION | VOLTAGE | DIMENSIONS | CUT – OUT SIZE |

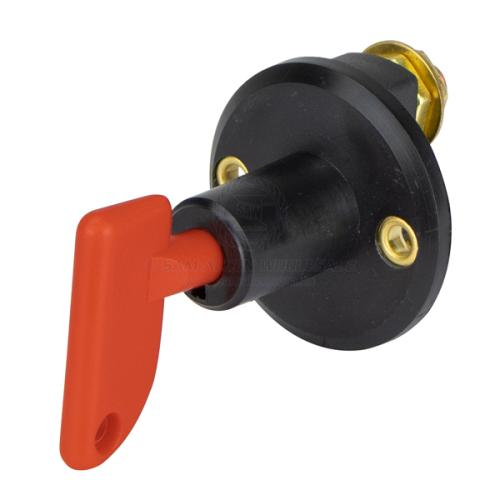

SAW-23124 |
Battery Switch 2 Pole with Key | 12V/24V | Dia. 98mm x D 70mm | W 23mm x H 53mm |
SAW-23124A |
Spare Key for SAW-23124 | — | — | — |
SAW-28526 |
Can-SB Battery switch 2 position in chrome recessed box with lid | 12V/24V | Dia. 98mm x D 110mm | Dia. 70mm x D 110mm |
SAW-28527 |
Can-SB Round Battery switch box White (suits SAW-23124) | — | Dia. 98mm x D 60mm | Dia. 70mm x D 60mm |

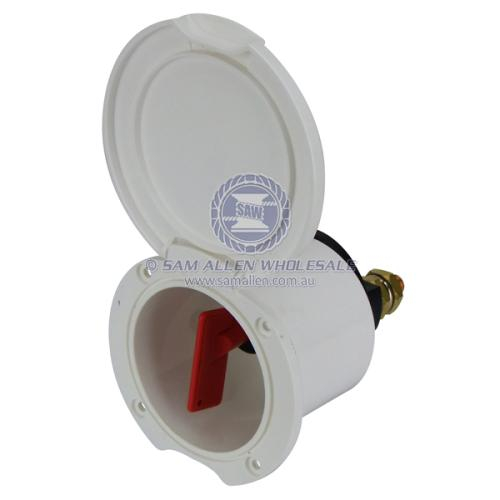

SAW-28529 |
Can-SB Battery switch 2 position in white recessed box with lid | 12V/24V | Dia. 98mm x D 110mm | Dia. 70mm x D 110mm |
SAW-28531 |
Battery switch in recessed housing | 12V/24V | Dia. 114mm x D 95mm | Dia. 81mm x D 95mm |

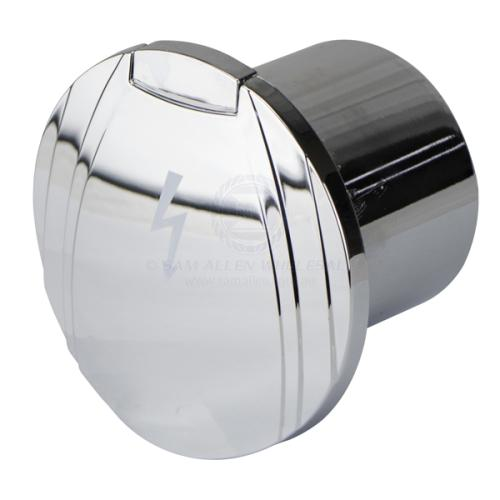

SAW-28540 |
Can-SB Battery switch box chrome | — | Dia. 98mm x D 60mm | Dia. 70mm x D 60mm |
