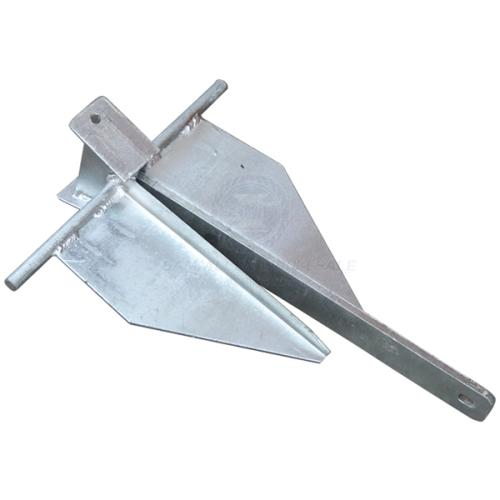

SAW Anchor – Sand Anchor
• Best suited to soft seabeds.
• Ideal in sand.
• Stores flat.
• Eye in head to connect retrieval line.
• Hot dipped galvanised.
| PART NUMBER | WEIGHT | LENGTH (A) | WIDTH (B) | FLUKE (E) | EYE (F) | DEPTH (C) | SHANK (D) | SUITS BOAT LENGTH (APPROX) |
SAW-12003 |
1.5kg (3lb) | 415mm | 300mm | 220mm | 12mm | 110mm | 390mm | 2.5m |
| SAW-12004 | 2kg (4lb) | 360mm | 350mm | 220mm | 14mm | 110mm | 410mm | 3m |
| SAW-12006 | 2.5kg (6lb) | 400mm | 285mm | 220mm | 11mm | 100mm | 410mm | 4m |
| SAW-12008 | 4kg (8lb) | 515mm | 345mm | 250mm | 14mm | 130mm | 410mm | 5m |
| SAW-12010 | 5kg (10lb) | 595mm | 450mm | 270mm | 14mm | 130mm | 450mm | 6m |
| SAW-12013 | 6kg (13lb) | 660mm | 450mm | 315mm | 18mm | 145mm | 555mm | 7m |
| SAW-12016 | 7kg (16lb) | 600mm | 410mm | 350mm | 15mm | 150mm | 500mm | 8m |
| SAW-12017 | 10kg (22lb) | 685mm | 480mm | 340mm | 17mm | 170mm | 570mm | 9m |
| SAW-12018 | 12kg (27lb) | 695mm | 485mm | 380mm | 15mm | 170mm | 610mm | 10m |
| SAW-12019 | 15.9kg (35lb) | 790mm | 510mm | 405mm | 15mm | 220mm | 670mm | 11m |
