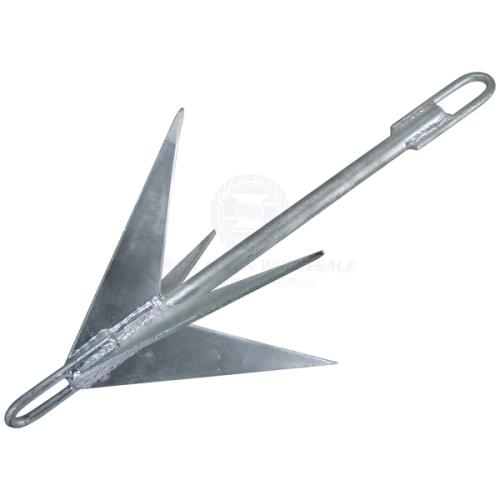

SAW Anchor – Mooloolaba Pick
• Best suited to reef and rocky seabeds.

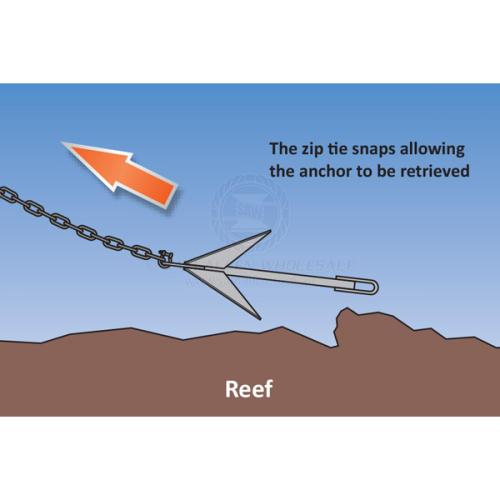

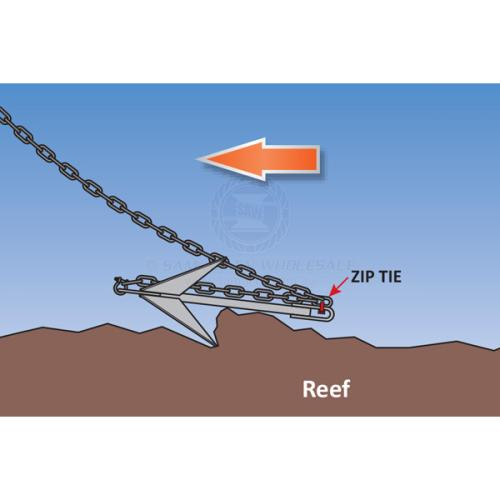

• Easy to retrieve design.
• Solid construction with heavy duty rigid prongs.
• Hot dipped galvanised.

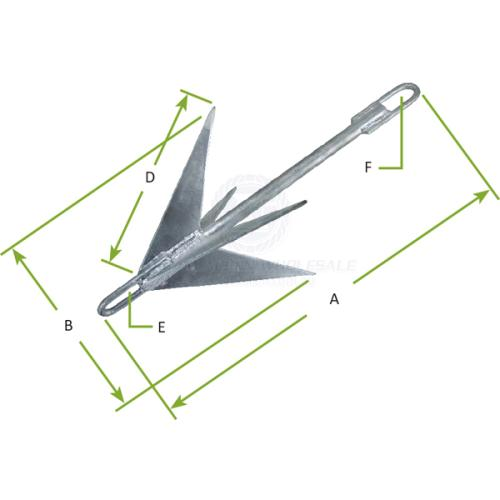

| PART NUMBER | WEIGHT | LENGTH (A) | WIDTH (B) | APPROX. BOAT LENGTH | FLUKE (D) | RETRIEVAL EYE (E) | EYE (F) | |
SAW-12300 |
1.8kg (4lb) | 495mm | 175mm | 3m – 4m | 220mm | 18mm | 18mm | |
| SAW-12302 | 4kg (9lb) | 570mm | 220mm | 4m – 5.5m | 250mm | 25mm | 25mm | |
| SAW-12304 | 7kg (16lb) | 705mm | 255mm | 5.5m – 7m | 295mm | 30mm | 30mm | |
| SAW-12306 | 9kg (20lb) | 810mm | 260mm | 7m – 9m | 300mm | 32mm | 32mm | |
| SAW-12308 | 11kg (24lb) | 875mm | 265mm | 9m – 11m | 295mm | 35mm | 35mm | |
| SAW-12310 | 13.5kg (30lb) | 960mm | 270mm | 11m – 13m | 275mm | 38mm | 38mm |
