• Modern design single gang switch panel.
• Backlight label provides easy recognition at night.
• 20A rated push reset circuit breaker.
• IP66 rated.
• CE certified.
| PART NUMBER | DESCRIPTION | WIDTH | HEIGHT | DEPTH | SWITCH | VOLTS | CUT-OUT | MAX CURRENT |
SAW-530774 |
Switch Panel Deck Wash On/Off | 54mm | 114mm | 75mm | On/Off | 12/24V | 45mm x 105mm | 20/10A |
SAW-530774L |

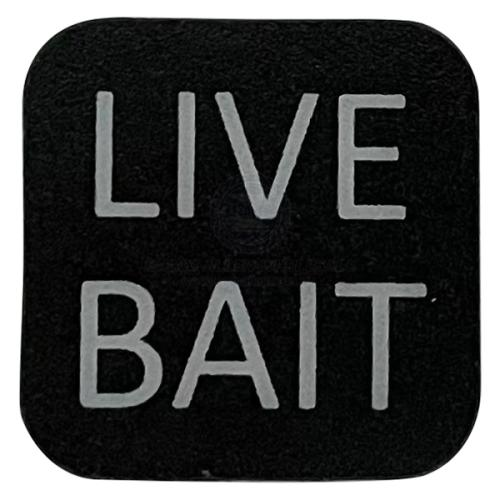

Live Bait Label to suit SAW-530774 | — | — | — | — | — | — | — |
| Options | Switch, Live Bait Label |
|---|
• Black UV stabilised PVC housing.
• Supplied with water resistant rubber cap and gasket.
• Flush mounting, can be mounted with or without rectangle housing.
• Relaxn blister packaging for maximum showroom appeal.
• Supplied with water resistant rubber cap.
• Accessory Cig power socket – 12V @ 20A, 24V @ 10A.
• USB – Fast charging at full speed (2.1A for iPad and 1A for iPhone/iPod).
• Compatible with all other smartphones.
• LED power indication.
• Short circuit / overheat protection.
• Supplied with two heat shrinkable spade connectors.
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113144)
Features:
BLA Code: 113144
Circuits: 8
Overall Size wxh mm: 239×115
Cut Out Size wxh mm: 219×95
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 2
10 amp – 2
15 amp – 3
20 amp – 1
