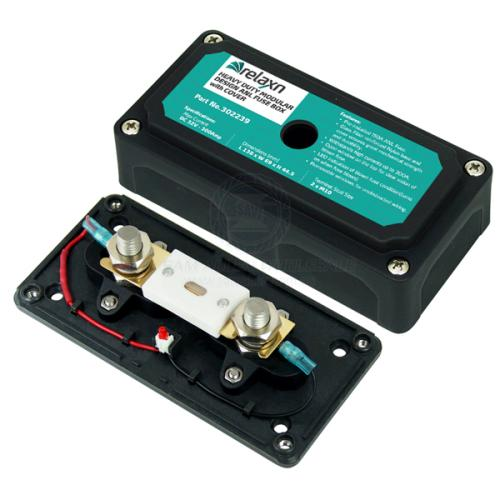

• Glass fibre reinforced nylon base and enclosure.
• Removable of windows for unobstructed wiring
• Withstands high currents between 100-300A.
• Open window for clear fuse inspection.
• LED indicator turns on when fuse is blown.
• M10 terminal stud size.
• 150A ANL fuse pre-installed.
| Part No. | SAW-302239 |
| Length | 138mm |
| Width | 69mm |
| Height | 44mm |
| Volts | 12V – 32V |
• Black UV stabilised PVC housing.
• Supplied with water resistant rubber cap and gasket.
• Flush mounting, can be mounted with or without rectangle housing.
• Relaxn blister packaging for maximum showroom appeal.
• Supplied with water resistant rubber cap.
• Accessory Cig power socket – 12V @ 20A, 24V @ 10A.
• USB – Fast charging at full speed (2.1A for iPad and 1A for iPhone/iPod).
• Compatible with all other smartphones.
• LED power indication.
• Short circuit / overheat protection.
• Supplied with two heat shrinkable spade connectors.
| PART NUMBER | DESCRIPTION | LENGTH | HEIGHT | Width |
SAW-53047 |
Flush Mount Dual Cigarette Lighter | 105mm | 43mm | 60mm |
| SAW-53047-10 | Flush Mount Dual Cigarette Lighter | 105mm | 43mm | 60mm |
SAW-53051 |
Flush Mount Cigarette Lighter + Voltmeter | 105mm | 43mm | 60mm |
| SAW-53051-10 | Flush Mount Cigarette Lighter + Voltmeter | 105mm | 43mm | 60mm |
Battery Boxes – Large (23662)
• Vented battery box made from hi-density reinforced polyethylene which is impervious to battery acids.
• Moulded carry handle.
• Moulded lid to provide easy cable setup.
• Includes webbing strap and stainless steel fastenings.
Features:
Part No.: 23662
Description: Large Battery Box
Outer Diamensions (mm): 410 x 225 x 280
Inside Dimensions (WxH) mm: 345 x 195 x 220
Surface Mount Combo Charger 12V Cig Power Outlet and USB Charger – Black (53042)
USB Charger Features:
• Optimised for iPad, iPhone and iPod – fast charging at full speed(2.1Amps for iPad, 1Amp for iPhone/iPod).
• Compatible with other smartphones.
• Input: 12V. Output: 5V-2.1Amp.
• Short circuit / overheat protection.
• 0.250″ quick connect terminals.
• LED power indication.
• Length – 110mm, Width – 80mm, Height – 50mm.
• Supplied with water resistant and dust proof rubber cap.
• Flame retardant nylon (glass fibre reinforced) enclosure.
• 1 year warranty.
Power Outlet Features:
• DC power outlet.
• Flame retardant nylon (glass fibre reinforced) enclosure.
• 0.250″ quick connect terminals.
• Rating: 12V at 20A.
Features:
Part No.53042
Description: Surface Mount Cig Power Outlet & USB Charger Combo – Black
