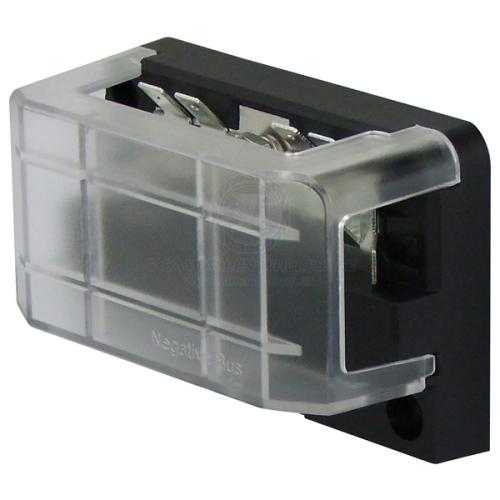

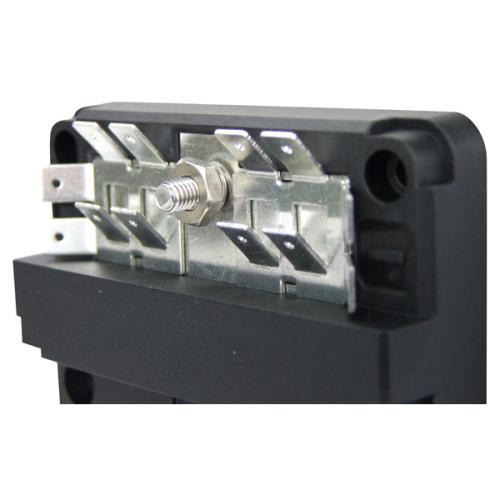

• Modular 12 way negative buss bar to suit 6 way circuit fuse block.
• 20 Amp rating per branch maximum total 100A.
| Part No. | SAW-302242 |
| Length | 57mm |
| Width | 86mm |
| Height | 41mm |
| Volts | 12V – 32V |
| Max Current | 20A per branch max total 100A |
| Eye Terminal Size | M4 |
| Terminal Stud Size | M5 |
| Unit Qty | 1 |
| Pack Size | Pack of 1, Pack of 10 |
|---|
IN STORE PICK UP ONLY
SuperCharge SeaMaster Gold – MFM50 Marine Battery 640CCA (THESE ARE A STOCKED LINE – FOR FREIGHT PLEASE CONTACT US PRIOR TO ORDERING)
• Colour coded Red+ / Black-.
• Heavey duty dual terminal studs with connecting link.
• Base made from glass fibre reinforced nylon for strength and durability.
| PART NUMBER | STUD TYPE | COLOUR | Max current | mounting screws | L X W X H |
SAW-30220 |
Dual M6 Negative with Link | Black | 12V 100Amp / 48V 25Amp | M4 x 12mm S/S Round Head | 43mm x 45mm x 32.5mm |
| SAW-30220-10 | Dual M6 Negative with Link – Pack of 10 | Black | 12V 100Amp / 48V 25Amp | M4 x 12mm S/S Round Head | 43mm x 45mm x 32.5mm |
SAW-30221  |
Dual M8 Positive with Link | Red | 12V 150Amp / 48V 35Amp | M4 x 12mm S/S Round Head | 43mm x 45mm x 32.5mm |
| SAW-30221-10 | Dual M8 Positive with Link – Pack of 10 | Red | 12V 150Amp / 48V 35Amp | M4 x 12mm S/S Round Head | 43mm x 45mm x 32.5mm |
Battery Boxes – Small (23661)
• Vented battery box made from hi-density reinforced polyethylene which is impervious to battery acids.
• Moulded carry handle.
• Moulded lid to provide easy cable setup.
• Includes webbing strap and stainless steel fastenings.
Features:
Part No.: 23661
Description: Standard Battery Box
Outer Diamensions (mm): 335 x 220 x 250
Inside Dimensions (WxH) mm: 290 x 195 x 195
