Relaxn Backlit LED Digital Dimmer
• Ideal for use in all smaller interior marine, caravan and motorhome applications.
• 10-24V DC dimmer can handle up to 100 watts.
• UL, CSA, & FCC compliant.
• LED backlit night light on power button until turned on.
• Separate power switch allows for maintaining desired dim level.
• Works with LED and halogen fixtures.
• Styling, size & depth designed for RV applications.

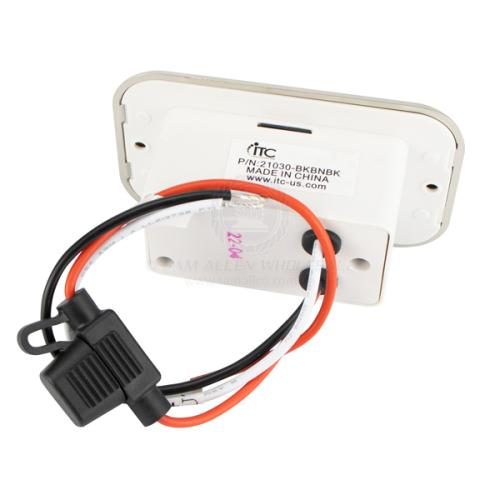

• Pre-wired with 165mm of tinned wire with a 10A fuse for easy installation.
• Dimming range 20% to 100%.
• Illuminated power button when light is turned off.
• Finish options include black and nickel bezels.
• Simple 3 wire installation.
Part No. | SAW-709858 |
Type | On / Off / Dim |
Volts | 10-24V |
Cut Out | W 37mm x H 67mm x D 31mm |
Dimensions | W 59mm x H 97mm x D 39mm |
Housing | UV Stable ABS Plastic |
Current | Min: 1.0A Max: 8.3A @ 12V DC |
Max Watt | 100W |
Thermal Protection | 105°C ° 5°C |
Frequency | 160 Hz |
