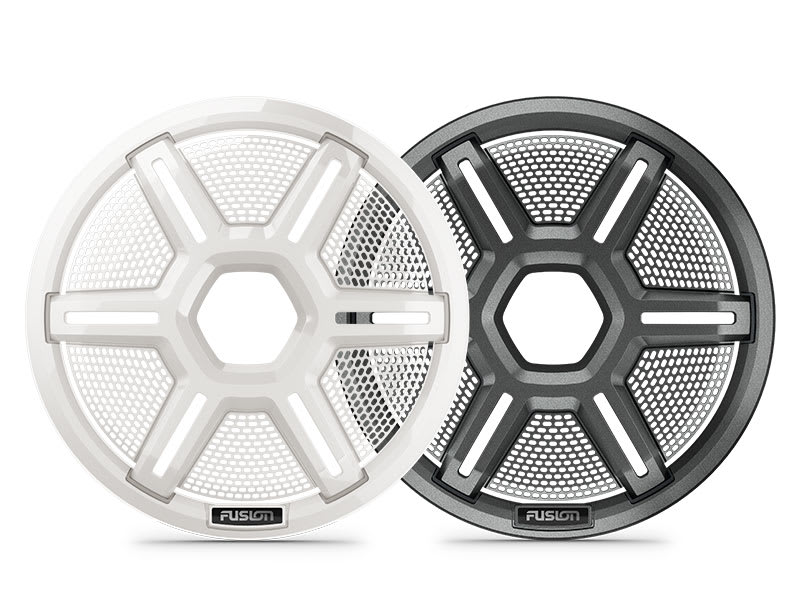

Fusion Apollo Subwoofer – 12″ LED Marine Subwoofer with Sports Grey Grille
Price Match
$1,439.00 $1,599.00
SURRENDER TO THE SOUND
Fusion Apollo subwoofers deliver immersive, high-fidelity bass on the water and are engineered to withstand harsh marine conditions.
CRYSTAL-CLEAR PREMIUM BASS
INCLUDED INTERCHANGEABLE GRILLE IN SPORTS WHITE OR SPORTS GREY STYLE
MATCH THE MOOD WITH DUAL-HUE LED LIGHTING RINGS
AVAILABLE IN 10″ AND 12″ SIZES
RIGOROUSLY TESTED MARINISED DESIGN
WHAT YOU’LL LOVE
PREMIUM BASS
Enjoy immersive bass at higher volumes, thanks to updated motor designs which reduce distortion for a premium sound experience.
LED LIGHTS
Showcase your boat with the dual-hue LED lighting rings that provide a unique look. Choose from a broad range of colors to match the mood or music.
INTERCHANGEABLE GRILLES
Complete your subwoofers with the included sports white or sports grey interchangeable grilles. Purchase the shielded grille for more protection; also available in grey or white.
Made for life on
the water
INTEGRATE
FUSION® AUDIO SYSTEM
Control your onboard entertainment system from your compatible smartwatch or with the Fusion Audio smartphone app.
SYSTEM INTEGRATION
Pair your speakers with Fusion® head units and amplifiers (sold separately) for the optimal listening experience with minimal distortion.
MARINISED CONNECTORS
Embedded water-resistant marinised connectors simplify the design and make installation easy; they also meet ABYC requirements.
FEEL THE BEAT
Pair your speakers with the Fusion® Apollo™ subwoofer so you can feel the music, too.
FUNCTIONAL
SUBWOOFER GRILLES
All types of subwoofer grilles provide a distinct look and complement the dual-hue LED lighting.
Easy install
The grilles are simple to install without tools and don’t have screws for a seamless look and finish.
DURABLE
Fusion Apollo speakers offer a superior level of durability and are built to withstand abuse in harsh marine environments (in accordance with IP66/IP67 rating and ISO 12216 standards).
| Weight | 12.7 kg |
|---|
General |
|
| Sizes | 10″/12″ |
|---|---|
| Color | Sports White or Sports Gray |
| Physical dimensions (Diameter) | 10″: 10.83″ (275 mm) 12″: 14.02″ (356 mm) |
| Physical dimensions (Depth) | 10″: 6.92″ (175.8 mm) 12″: 9.77″ (248.2 mm) |
| Weight | 10″: 13.4 lbs (6.1 kg) 12″: 27.8 lbs (12.63 kg) |
| Water and dust rating | IP66/IP67 |
| Speaker type | Subwoofer |
| Continuous power handling (RMS) | 10″: 300 W 12″: 700 W |
| Sensitivity (SPL @ 1 W/1 m) | 86 dB |
| Frequency response (+/- 3 dB) | 10″: 30 Hz-2 kHz 12″: 20 Hz-2 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 10″: 50-300 W 12″: 200-700 W |
| LED lighting | yes – CRGBW (5 colors) |
| LED supply voltage | 10.8-16 VDC |
| LED Load Current @ 14.4 VDC (max) | 10″: 190 mA per color 12″: 270 mA per color |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Cone material | Polypropylene Cone with Rubber Surround |
| Warranty | 3 years |
Electrical features |
|
| Compass safe distance | 10″: 13.45 ft (410 cm) 12″: 19.03 ft (580 cm) |
|---|---|
Connections |
|
| Speaker connections | 5.9″ (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25″ (6.3 mm) positive and 0.25″ (6.3 mm) negative) |
|---|---|
| LED connection | 5.9″ (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground) |
Mounting Dimensions |
|
| Mounting diameter clearance | 10″: 8.78″ (223 mm) 12″: 11.85″ (301 mm) |
|---|---|
| Mounting depth clearance | 10″: 5.31″ (135 mm) 12″: 7.80″ (198 mm) |
| Frontal grille protrusion | 10″: 1.77″ (45 mm) 12″: 2.17″ (55 mm) |
General
| Sizes | 10″ or 12″ |
|---|---|
| Colour | Sports white or sports grey |
| Physical dimensions (diameter x depth) | 10″ subwoofer: 10.83″ x 6.92″ (275 x 175.8 mm) 12″ subwoofer: 14.02″ x 9.77″ (356 x 248.2 mm) |
| Water and dust rating | IP66/IP67 |
| Configuration | Subwoofer |
| Peak power | 10″ subwoofer: 600 W 12″ subwoofer: 1400 W |
| RMS power | 10″ subwoofer: 300 W 12″ subwoofer: 700 W |
| Sensitivity (1 watt @ 1 metre) | 86 dB |
| Frequency response | 10″ subwoofer: 30 Hz – 2 kHz 12″ subwoofer: 20 Hz – 2 kHz |
| Nominal impedence | 4 ohms |
| Recommended amplifier power (RMS) | 10″ subwoofer: 50 – 300 W 12″ subwoofer: 200 – 700 W |
| LED lighting | Yes (CRGBW; 5 colours) |
| LED supply voltage | 10.8 – 16 VDC |
| LED load current @14.4 VDC | 10″ subwoofer: 0.19 A per colour 12″ subwoofer: 0.27 A per colour |
| LED load current @14.4 VDC when using Garmin Spectra™1 | 10″ subwoofer: 0.40 A maximum 12″ subwoofer: 0.54 A maximum |
| OPERATING TEMPERATURE RANGE | 0° to 50° C |
| Voice coil diameter | 10″ subwoofer: 2″ 12″ subwoofer: 4″ |
| Cone material | Polypropylene cone with rubber surround |
| Compass-safe distance | 10″ subwoofer: 410 cm (13.45 ft) 12″ subwoofer: 580 cm (19.03 ft) |
| Speaker connection | 150 mm (5.9″) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (6.3 mm (0.25″) positive and 6.3 mm (0.25″) negative) |
| LED connection | 150 mm (5.9″) water-resistant 6-way connector (6-pin, CRGBW and ground) |
| WARRANTY | 3 years |
Mounting Dimensions (Cutout)
| Mounting diametre clearance | 10″ subwoofer: 223 mm (8.78″) 12″ subwoofer: 301 mm (11.85″) |
|---|---|
| Mounting depth clearance | 10″ subwoofer: 135 mm (5.31″) 12″ subwoofer: 198 mm (7.80″) |
