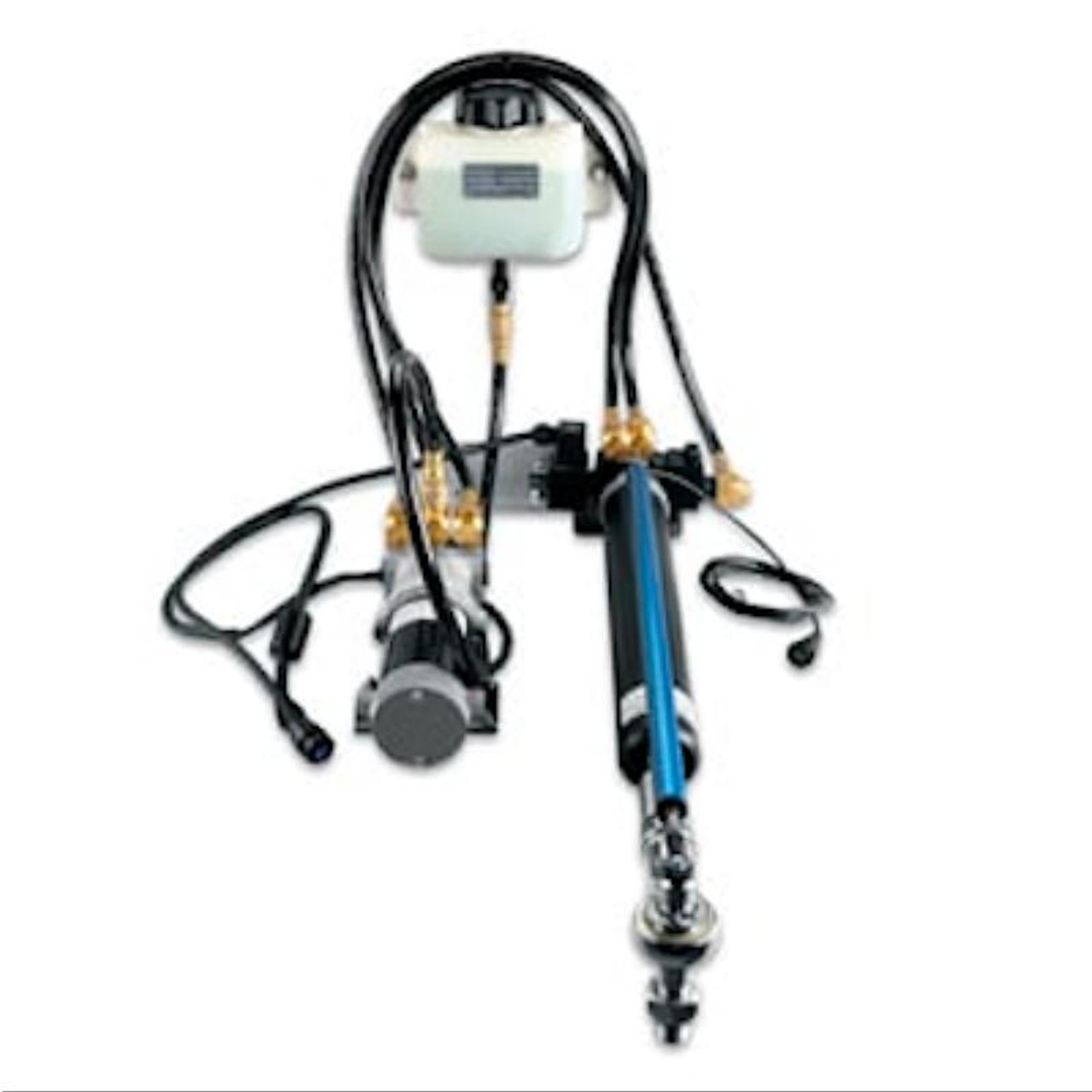

The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with larger sailboats with up to 79,000 lbs of displacement.
| Weight | 11.5 kg |
|---|
Drive Unit Type: Hydraulic linear
Stroke Length: 12″ (303 mm)
Maximum Thrust: 2380 lb (1080 kg)
Dimensions, WxHxD:
Supply Voltage: 10V to 30V
Average Clutch Current at 12V: 1 Amp
Average Motor Current at 12V: 3-4 Amps
Operating Temperature: -15° C to 60° C(5° F to 140° F)
Minn Kota 3m Wiring Loom/Harness for Electric Motor to Suit Minn Kota & Other Electric Motors
BLA Code: 602996
Wiring Harness for Electric Motor to Suit Minn Kota & Other Electric Motors
CADCO wiring looms are available in 3m (this listing) and 6m lengths and are made with 10mm quality marine grade tinned copper wire, a 50 amp circuit breaker, an Anderson plug kit and all terminals attached. The wiring is protected in a loom tube for neat installation.
Available in popular three and six metre lengths ready for installation these looms are manufactured using quality materials and fittings. Each cable features 10mm marine grade tinned copper wire, quality 50 amp BEP resettable circuit breaker, Anderson plug kit and fixed terminals.
For safety, protection, ease of installation and neatness each loom is supplied encased in black flame retardant corrugated conduit.
Note: For the installation of 24 volt motors the purchase of one 113676 300mm flexible terminal link is required (please see related products), allowing the connection from one batteries positive to the others negative. Full instructions with simple to follow pictures is included for easy installation.
Garmin BlueChart g2 Vision – Southern Australia [Garmin Part Number: 010-C0753-00] – RRP $399
Get a fresh perspective when you take to the water with BlueChart® g2 Vision®. With BlueChart g2 Vision data, you’ll get detailed marine cartography that provides convenient viewing of nautical content and other premium features. BlueChart g2 Vision allows you to see your vessel’s precise, on-chart position in relation to naviads, coastal features, anchorages, obstructions, waterways, restricted areas and more. You will also have access to detailed mapping capabilities that include Safety Shading, Fishing Charts, smooth data transition between zoom levels, harmonious transition across chart borders, and reduction of chart discontinuities. Premium features include 3-D perspective above and below the waterline, Auto Guidance, high-resolution imagery, and “real picture” aerial photos of ports, harbours, marinas, waterways, landmarks and other points of interest. It’s the most realistic mapping display Garmin has ever offered.
Detailed coverage of the Southern coast of Australia from Geraldton to Brisbane (VPC020R). Also includes detailed coverage of Perth, the Great Australian Bight, Adelaide, Melbourne, Tasmania, Sydney, and Norfolk Island. (if another region is required please contact us for availability).
THIS IS SUITABLE FOR CURRENT MODEL GARMIN GPSMAP 7407xsv, GPSMAP 7408xsv, GPSMAP 7410xsv, GPSMAP 7412xsv, echoMAP 75dv, echoMAP 75sv & echoMAP 95sv SOUNDER/GPS COMBO UNITS, PLEASE SEE RELATED PRODUCTS OR ASK FOR FURTHER INFORMATION.
WARRANTY:
We are an authorised Australian Garmin retailer, as such Full Australian Manufacturers Warranty is applicable for this item. Please note if a Garmin unit is purchased overseas or from a non-authorised Garmin retailer you may not receive warranty coverage in Australia.
*Specifications from suppliers’ information. Actual depth capabilities depend on transducer installation, bottom type & water conditions. All sonars typically read deeper in freshwater than in saltwater. Images for display purposes only.
Garmin BlueChart g2 Vision – Northern and Western Australia [Garmin Part Number: 010-C0754-00] – RRP $399
Get a fresh perspective when you take to the water with BlueChart® g2 Vision®. With BlueChart g2 Vision data, you’ll get detailed marine cartography that provides convenient viewing of nautical content and other premium features. BlueChart g2 Vision allows you to see your vessel’s precise, on-chart position in relation to naviads, coastal features, anchorages, obstructions, waterways, restricted areas and more. You will also have access to detailed mapping capabilities that include Safety Shading, Fishing Charts, smooth data transition between zoom levels, harmonious transition across chart borders, and reduction of chart discontinuities. Premium features include 3-D perspective above and below the waterline, Auto Guidance, high-resolution imagery, and “real picture” aerial photos of ports, harbours, marinas, waterways, landmarks and other points of interest. It’s the most realistic mapping display Garmin has ever offered.
Detailed coverage of the Northern and Western coasts of Australia from Mackay to Esperance (VPC021R). Also includes detailed coverage of Perth, Geraldton, Broome, Darwin, the Gulf of Carpentaria, and the northern Great Barrier Reef (if another region is required please contact us for availability).
THIS IS SUITABLE FOR CURRENT MODEL GARMIN GPSMAP 7407xsv, GPSMAP 7408xsv, GPSMAP 7410xsv, GPSMAP 7412xsv, echoMAP 75dv, echoMAP 75sv & echoMAP 95sv SOUNDER/GPS COMBO UNITS, PLEASE SEE RELATED PRODUCTS OR ASK FOR FURTHER INFORMATION.
WARRANTY:
We are an authorised Australian Garmin retailer, as such Full Australian Manufacturers Warranty is applicable for this item. Please note if a Garmin unit is purchased overseas or from a non-authorised Garmin retailer you may not receive warranty coverage in Australia.
*Specifications from suppliers’ information. Actual depth capabilities depend on transducer installation, bottom type & water conditions. All sonars typically read deeper in freshwater than in saltwater. Images for display purposes only.
Garmin Stainless Steel Transducer Spray Shield [Garmin Part Number: 010-01055-00]
The Garmin spray shield is designed to reduce excess water spray from transducers when the vessel is running at high speeds. Can be retro fitted to a wide range of common Garmin transom mounted transducers. The plate is simply fitted between the plastic transducer housing and the transom mount bracket. Supplied complete with stainless steel mount fixtures and washers.
COMPATABLE UNITS & TRANSDUCERS:
* echoMAP™ 45dv
* echoMAP™ 55dv
* echoMAP™ 75dv
* echoMAP™ 75sv
* echoMAP™ 95sv
* echoMAP™ CHIRP 45dv
* echoMAP™ CHIRP 55dv
* echoMAP™ CHIRP 75dv
* echoMAP™ CHIRP 75sv
* echoMAP™ CHIRP 95sv
* Garmin GT20-TM – Transom Mount DownVü 500 W (CHIRP 455/800 kHz) Traditional 500 W (77/200 kHz) Transducer with Temp (8-pin)
* Garmin GT21-TM – Transom Mount DownVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (50/200 kHz) Transducer with Temp (8-pin)
* Garmin GT30-TM – Transom Mount DownVü/SideVü 500 W (CHIRP 455/800 kHz) Scanning Transducer with Temp (12-pin)
* Garmin GT40-TM – Transom Mount DownVü/SideVü 500 W (CHIRP 455/800 kHz) Traditional 500 W (77/200 kHz) Transducer with Temp (12-pin)
* Garmin GT41-TM – Transom Mount DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (50/200 kHz) Transducer with Temp (12-pin)
* Garmin GT50M-TM – Transom Mount DownVü/SideVü 500 W (CHIRP 455/800 kHz) Traditional 300 W (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-pin)
* Garmin GT51M-TM – Transom Mount DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-Pin)
*Specifications from suppliers’ information.
