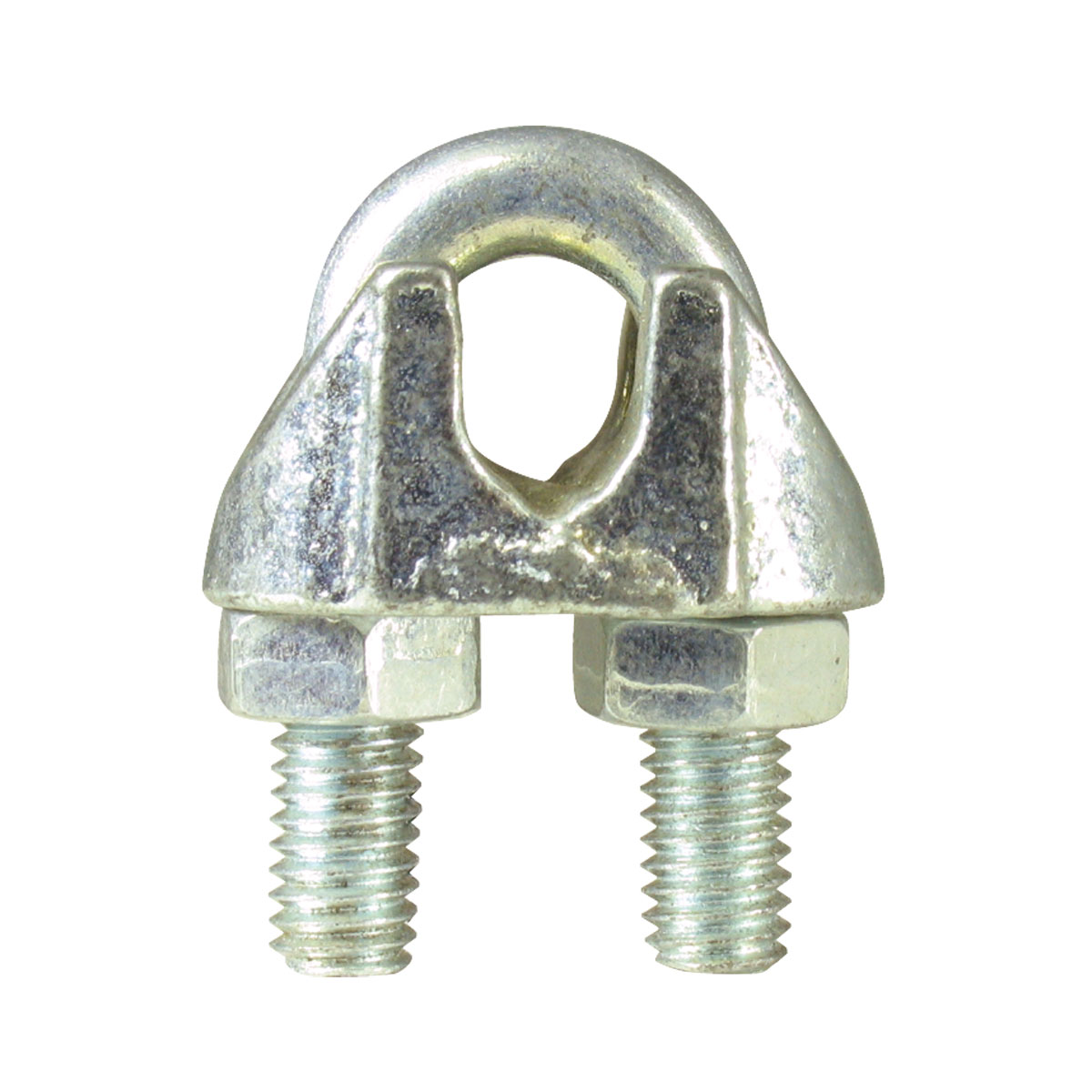

BLA Wire Rope Grips – Galvanised
Economical hot dipped galvanised, ‘U’ clamp type wire rope grips. Bases are stamped to show imperial wire size.
|
BLA CODE
|
PACK QTY
|
WIRE DIA MM
|
WIRE DIA IN
|
A MM
|
B MM
|
C MM
|
D MM
|
|---|---|---|---|---|---|---|---|
BLA-162004 |
1 | 3 | 1/8 | 3 | 23 | 19 | 12 |
| BLA-162004B10 | 10 | 3 | 1/8 | 3 | 23 | 19 | 12 |
| BLA-162006 |
1 | 5 | 3/16 | 4 | 28 | 22 | 14 |
BLA-162006P |
4 | 5 | 3/16 | 4 | 28 | 22 | 14 |
| BLA-162006B10 | 10 | 5 | 3/16 | 4 | 28 | 22 | 14 |
| BLA-162008 |
1 | 6 | 1/4 | 5 | 30 | 25 | 16 |
| BLA-162008P |
4 | 6 | 1/4 | 5 | 30 | 25 | 16 |
| BLA-162008B10 | 10 | 6 | 1/4 | 5 | 30 | 25 | 16 |
| BLA-162010 |
1 | 8 | 5/16 | 6 | 34 | 30 | 19 |
| BLA-162012 |
1 | 10 | 3/8 | 8 | 43 | 40 | 22 |
| BLA-162014 |
1 | 13 | 1/2 | 10 | 60 | 48 | 26 |
‘B’ – Denotes bulk packed item

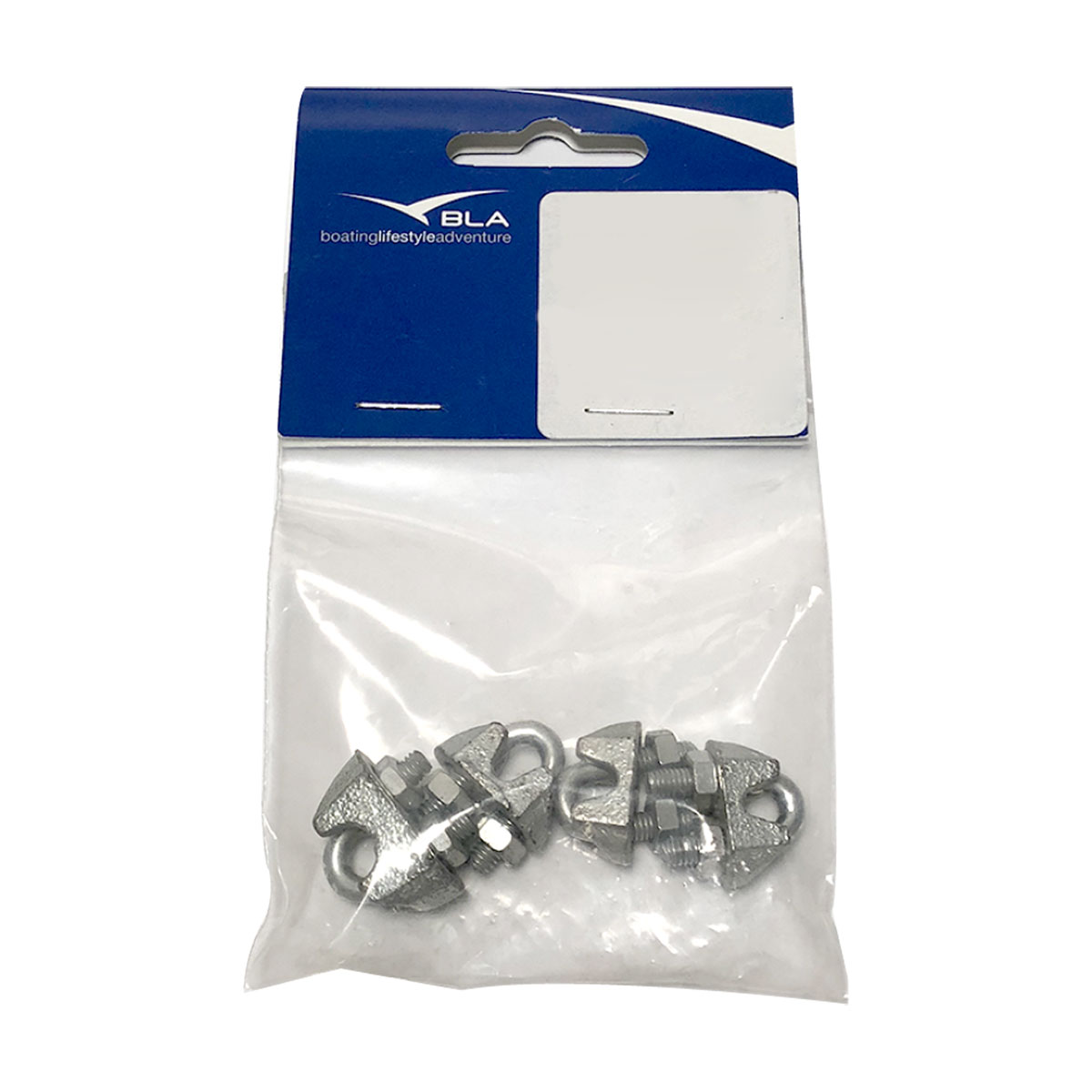

‘P’ – Denotes packaged item
