$3.90 – $42.90

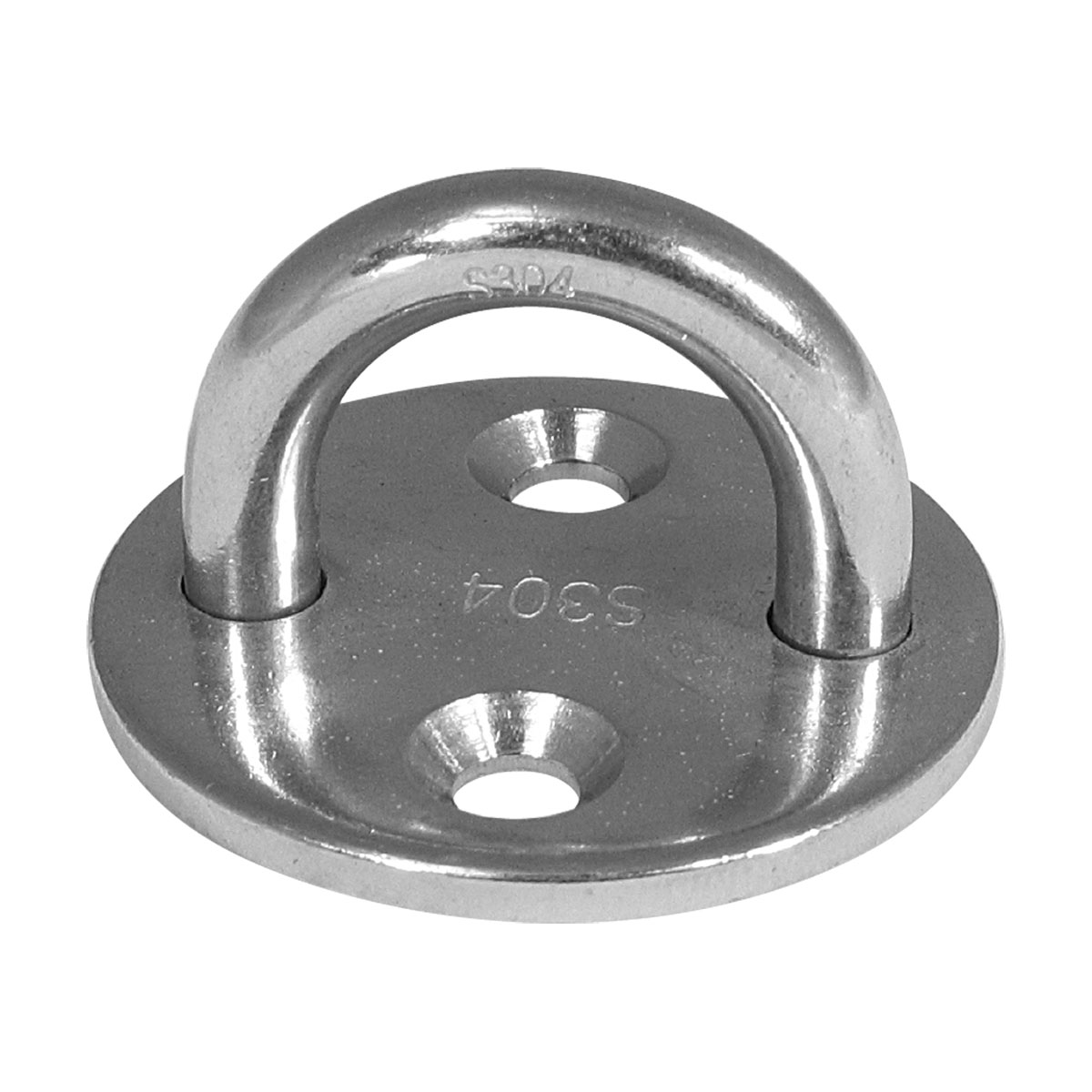

Polished 304 grade stainless steel pad eyes with round base. Pressed base plate, rolled and welded saddle.
|
BLA CODE
|
PACK QTY
|
A MM
|
B MM
|
C MM
|
MOUNT SCREWS MM
|
BREAK LOAD KG
|
|---|---|---|---|---|---|---|
BLA-165304 |
1 | 33 | 21 | 5 | 4 c/s | 700 |
| BLA-165304B10 | 10 | 33 | 21 | 5 | 4 c/s | 700 |
| BLA-165306 |
1 | 40 | 25 | 6 | 4 c/s | 1000 |
| BLA-165308 |
1 | 50 | 32 | 8 | 4 c/s | 1600 |
‘P’ – Denotes packaged item
| Thread (c) | 5mm, 6mm, 8mm |
|---|---|
| Pack | 1, 10 |
‘D’ shackles are important linking equipment for rigging, chains and anchoring.
Galvanised for durability.
| PART NUMBER | PIN DIAMETER | INTERNAL LENGTH (A) | INTERNAL WIDTH (B) |
|---|---|---|---|
| SAW-110010 | 5mm | 20.0mm | 10.1mm |
| SAW-110012 | 6mm | 22.4mm | 12.9mm |
| SAW-110014 | 8mm | 31.1mm | 16.3mm |
| SAW-110016 | 10mm | 35.4mm | 19.6mm |
| SAW-110018 | 12mm | 46.2mm | 26.6mm |
| SAW-110020 | 16mm | 58.1mm | 32.7mm |
| SAW-110022 | 19mm | 72.9mm | 38.1mm |
| SAW-110024 | 22mm | 86.0mm | 45.1mm |
| SAW-110026 | 25mm | 91.6mm | 51.0mm |
• AS2741 Standard.
• Configuration with screw pin hot dipped galvanised.
• Marked with load limit in tonnes, grade ‘S’ batch.
• Number, nominal size in millimetre and supplier identification.
• Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.
• Test certificates are available upon request.
• Suitable for lifting applications.
• GP – QLD Transport Approved.
| PART NUMBER | PIN DIAMETER | BODY DIAMETER (∅) | INTERNAL LENGTH (A) | OPENING WIDTH (B) | INTERNAL WIDTH (C) | WORKING LOAD LIMIT | |
SAW-130024 |
10mm | 8mm | 31.0mm | 13.0mm | 21.0mm | 750kg | |
| SAW-130024-10 | 10mm | 8mm | 31.0mm | 13.0mm | 21.0mm | 750kg | |
SAW-130026 |
11mm | 10mm | 35.0mm | 16.0mm | 26.0mm | 1T | |
| SAW-130026-10 | 11mm | 10mm | 35.0mm | 16.0mm | 26.0mm | 1T | |
SAW-130028 |
13mm | 11mm | 43.0mm | 18.0mm | 28.0mm | 1.5T | |
| SAW-130028-10 | 13mm | 11mm | 43.0mm | 18.0mm | 28.0mm | 1.5T | |
SAW-130030 |
16mm | 13mm | 48.0mm | 20.0mm | 29.0mm | 2T | |
| SAW-130030-10 | 16mm | 13mm | 48.0mm | 20.0mm | 29.0mm | 2T | |
SAW-130032 |
19mm | 16mm | 60.0mm | 26.0mm | 43.0mm | 3.2T | |
| SAW-130032-10 | 19mm | 16mm | 60.0mm | 26.0mm | 43.0mm | 3.2T | |
| SAW-130034 | 22mm | 19mm | 71.0mm | 32.0mm | 51.0mm | 4700kg | |
SAW-130036 |
25mm | 22mm | 84.0mm | 36.0mm | 58.0mm | 6500kg | |
SAW-130037 |
29mm | 25mm | 95.0mm | 43.0mm | 68.0mm | 8.5T | |
SAW-130038 |
32mm | 29mm | 108.0mm | 46.0mm | 74.0mm | 9.5T | |
SAW-130039 |
35mm | 32mm | 119.0mm | 52.0mm | 83.0mm | 12T | |
SAW-130042 |
51mm | 44mm | 178.0mm | 73.0mm | 127.0mm | 25T |
Note: Pin colours may vary.
Hook and eye, die cast electro galvanised open body. Commercial grade. Suitable for light weight applications in tensioning systems.
|
BLA CODE
|
THREAD
|
A MM
|
B MM
|
C MM
|
|---|---|---|---|---|
BLA-163202 |
M5 | 100-150 | 8 | 6 |
BLA-163204 |
M6 | 130-205 | 10 | 8 |
BLA-163206 |
M8 | 165-250 | 12 | 10 |
BLA-163208 |
M10 | 205-320 | 15 | 11 |
BLA-163240 |
M12 | 260-425 | 16 | 13 |
| Part No. | SAW-130082 | SAW-130083 |
| Weight | 2.78kg | 3.75kg |
| Pin Dia. | 29.0mm | 32.0mm |
| Body Dia. | 25.0mm | 29.0mm |
| A | 95.0mm | 108.0mm |
| B | 43.0mm | 46.0mm |
| C | 68.0mm | 74.0mm |
| D | 60.0mm | 67.0mm |
| WLL | 8.5T | 9.5T |
| Pin | Safety Pin | Safety Pin |
| Note | Pin colours may vary. | Pin colours may vary. |
