$4.90 – $18.90

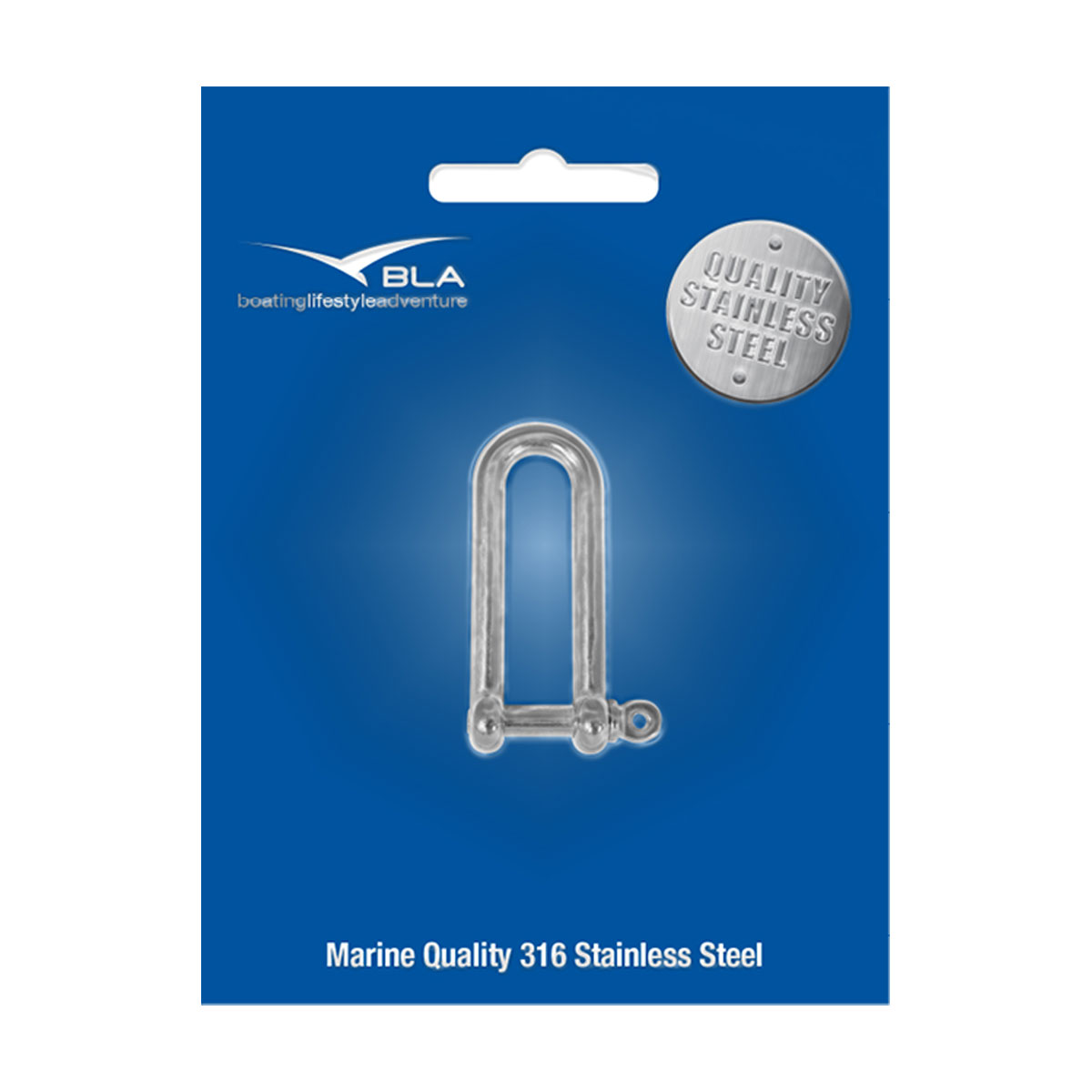

316 grade stainless steel shackle with long body. Screw in pin drilled for security tie wire.
|
BLA CODE
|
PACK QTY
|
PIN. DIA MM
|
A MM
|
B MM
|
BREAKING LOAD KG
|
|---|---|---|---|---|---|
BLA-161070 |
1 | 5 | 38 | 10 | 1250 |
BLA-161070P |
1 | 5 | 38 | 10 | 1250 |
BLA-161072 |
1 | 6 | 45 | 12 | 1800 |
BLA-161072P |
1 | 6 | 45 | 12 | 1800 |
BLA-161074 |
1 | 8 | 60 | 16 | 2750 |
BLA-161074P |
1 | 8 | 60 | 16 | 2750 |
BLA-161076 |
1 | 10 | 75 | 20 | 3250 |
BLA-161078 |
1 | 12 | 90 | 24 | 6400 |
| Pin Dia. | 5mm, 6mm, 8mm, 10mm, 12mm |
|---|---|
| Pack | 1, 1 Packed |
Galvanised bow shackles in a range of sizes. Ideal for anchoring, rigging and other applications.
| PART NUMBER | PIN DIAMETER | INTERNAL LENGTH (A) | OPENING WIDTH (B) | INTERNAL WIDTH (C) | BODY DIAMETER (∅) | |
|---|---|---|---|---|---|---|
SAW-110028 |
5mm | 24.5mm | 11.2mm | 16.9mm | 4.9mm | |
| SAW-110030 | 5.6mm | 26.6mm | 12.8mm | 18.9mm | 5.6mm | |
| SAW-110032 | 7mm | 31.8mm | 17.5mm | 23.1mm | 7.0mm | |
| SAW-110034 | 8.9mm | 36.3mm | 20.0mm | 29.2mm | 8.6mm | |
| SAW-110036 | 11.4mm | 45.0mm | 26.0mm | 34.9mm | 11.2mm | |
| SAW-110038 | 15.5mm | 63.6mm | 32.1mm | 47.7mm | 14.9mm | |
| SAW-110040 | 18.9mm | 74.8mm | 38.1mm | 59.2mm | 18.3mm | |
| SAW-110041 | 21.6mm | 86.4mm | 46.5mm | 67.2mm | 20.3mm | |
| SAW-110042 | 24.2mm | 109.6mm | 52.1mm | 82.4mm | 23.6mm |
| Part No. | SAW-130044 | SAW-130046 |
| Weight | 0.13kg | 0.18kg |
| Pin Dia. | 11.0mm | 13.0mm |
| Body Dia. | 10.0mm | 11.0mm |
| A | 32.0mm | 36.0mm |
| B | 17.0mm | 20.0mm |
| C | 24.0mm | 27.0mm |
| WLL | 1.0T | 1.5T |
| Pin | Screw Pin | Screw Pin |
| Note | Pin colours may vary. | Pin colours may vary. |
• The Ultimate alternative to conventional shackles.
• Designed to be safe, lightweight & easy to use.
• Made from UHWMPE 12 strand synthetic rope.
• Light weight.
• Maximum strength to weight ratio.
• Easy to attach and remove.
• Floats.
• Soft – No heavy metal parts, less damage.
• No removable pins to drop or lose.
• Natural articulation.
• Will not corrode or rust.
• Low maintenance.
| PART NUMBER | LENGTH | DIAMETER | LOOPED LENGTH | LOOP DIAMETER | BR/ST |
SAW-48500 |
550mm | 6mm | 285mm | 150mm | 4900kg |
SAW-48502 |
600mm | 8mm | 325mm | 150mm | 7900kg |
SAW-48504 |
630mm | 10mm | 325mm | 150mm | 9600kg |
SAW-48506 |
620mm | 12mm | 320mm | 150mm | 14000kg |
SAW-48508 |
680mm | 14mm | 370mm | 150mm | 23750kg |
316 grade stainless steel ‘D’ shackle. Screw in pin with countersunk slotted head.
|
BLA CODE
|
PACK QTY
|
PIN. DIA MM
|
A MM
|
B MM
|
BREAKING LOAD KG
|
|---|---|---|---|---|---|
BLA-161032 |
1 | 4 | 14 | 8 | 550 |
BLA-161032P |
1 | 4 | 14 | 8 | 550 |
BLA-161036 |
1 | 5 | 18 | 10 | 1000 |
BLA-161036P |
1 | 5 | 18 | 10 | 1000 |
BLA-161038 |
1 | 6 | 21 | 12 | 1700 |
BLA-161040 |
1 | 8 | 28 | 16 | 2000 |
BLA-161042 |
1 | 10 | 35 | 20 | 2500 |
