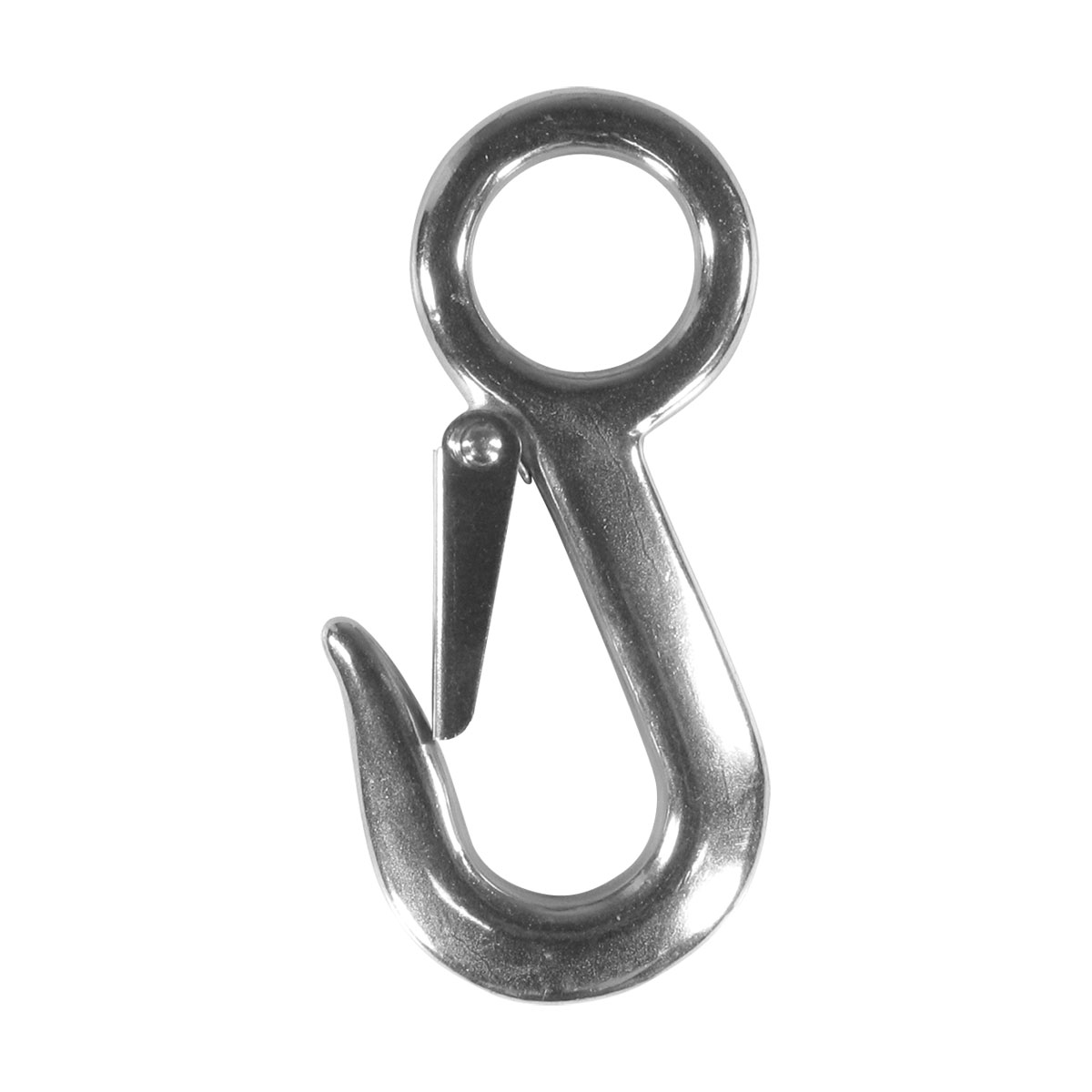

BLA Large Eye Snap Hook – 316 Grade Stainless Steel
Cast 316 grade stainless steel snap hook with large fixed eye and safety latch.
|
BLA CODE
|
A MM
|
B MM
|
MAX. OPENING MM
|
BREAK LOAD KG
|
|---|---|---|---|---|
| BLA-164098 | 115 | 28 | 23 | 1000 |
| Length (a) | 90mm, 107mm, 123mm |
|---|
