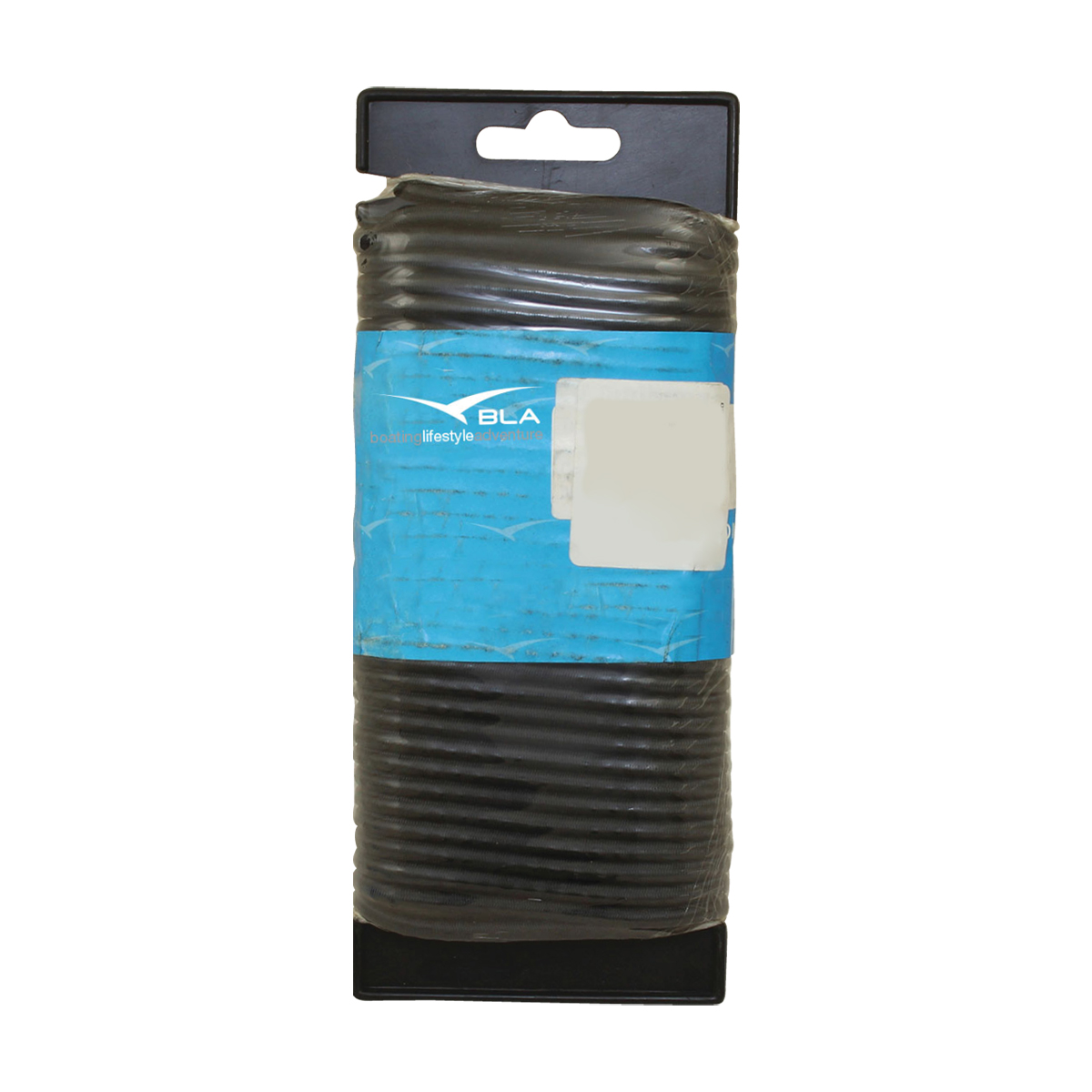

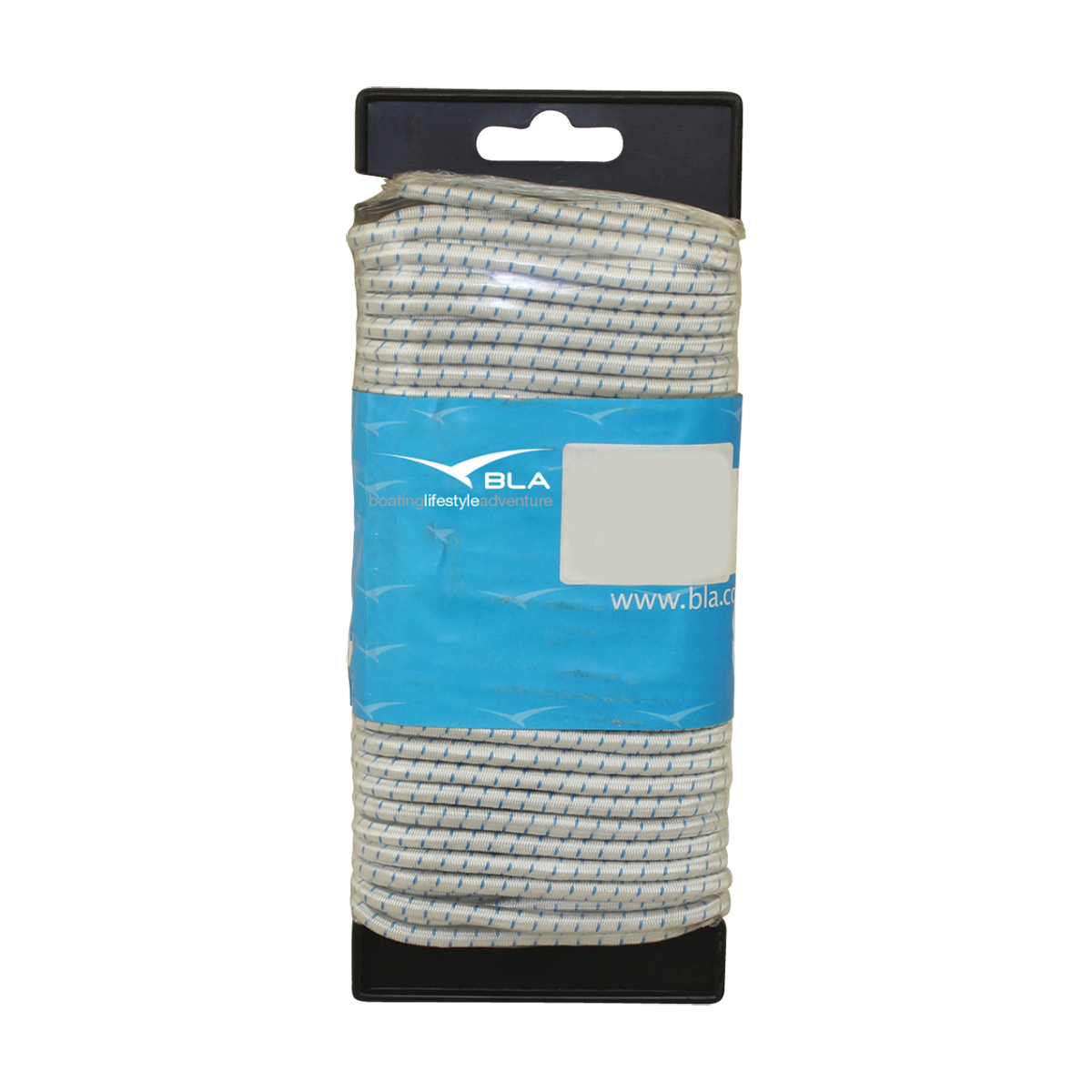

Shock Cord – A quality shock cord with 16 braided polyester outer. Ideal for a wide range of marine and general use applications. Available in white with blue fleck or solid black in 4mm x 20m or solid black in 6mm x 11m.
|
BLA CODE
|
TYPE
|
ROPE DIA. MM
|
LENGTH M
|
COLOUR
|
|---|---|---|---|---|
144400 |
Shock cord | 4 | 20 | White/Blue |
144402 |
Shock cord | 4 | 20 | Black |
144406 |
Shock cord | 6 | 11 | Black |
| Options | 4mm Diameter White/Blue, 4mm Diameter Black, 6mm Diameter Black |
|---|
Highly Polished 316G stainless steel finish.
| PART NUMBER | DESCRIPTION | LENGTH | WIDTH |
|---|---|---|---|
SAW-29175 |
6”(150mm) 316 S/S Cleat | 150mm | 45mm |
| SAW-29176 |
8”(200mm) O/Base Stainless Steel Cleat 316 | 200mm | 55mm |
| SAW-29177 |
316 25cm O/Base Stainless Steel Cleat | 250mm | 67mm |
| SAW-29179 |
300mm 316 Stainless Steel Cleat | 300mm | 87mm |
Ideal for sand and mud. Provides safe and sure anchoring for heavier craft. Fitted with retrieval eye for ease of removal if snagged. Heavy duty hot dipped galvanised finish with lead filled tip. Anchor size refers to approximate weight in pounds.
|
BLA CODE
|
SIZE
|
APPROX. BOAT LENGTH M
|
WEIGHT APPROX. KG
|
A MM
|
B MM
|
C MM
|
D MM
|
|---|---|---|---|---|---|---|---|
146152 |
10P | 5 | 4.5 | 200 | 550 | 200 | 270 |
146154 |
15P | 7 | 6.8 | 250 | 580 | 255 | 280 |
146156 |
20P | 8 | 9 | 280 | 700 | 270 | 350 |
146158 |
27P | 9 | 12.3 | 325 | 760 | 290 | 380 |
146160 |
35P | 11 | 15.9 | 375 | 790 | 330 | 400 |
146162 |
45P | 13 | 20.4 | 395 | 850 | 335 | 440 |
146164 |
60P | 15 | 27.2 | 450 | 940 | 375 | 470 |
146166 |
80P | 16 | 36.3 | 490 | 1060 | 400 | 520 |
146168 |
100P | 17 | 45.4 | 490 | 1120 | 400 | 570 |
Heavy Duty Cleats – Stainless Steel.
| PART NUMBER | DESCRIPTION | LENGTH | WIDTH |
SAW-29169 |
Cleat 316SS open base 380mm h/duty | 380mm | 116mm |
SAW-29176HD |
Cleat 316SS open base 200mm h/duty | 200mm | 65mm |
| SAW-29177HD |
Cleat 316SS open base 250mm h/duty | 255mm | 70mm |
Cast Alloy Heavy Duty Dock Cleat.
| PART NUMBER | HOLE CENTRES | MOUNT SCREWS | L X W X H |
|---|---|---|---|
SAW-293721 |
125mm | 14mm c/s | 340mm x 72mm x 80mm |
