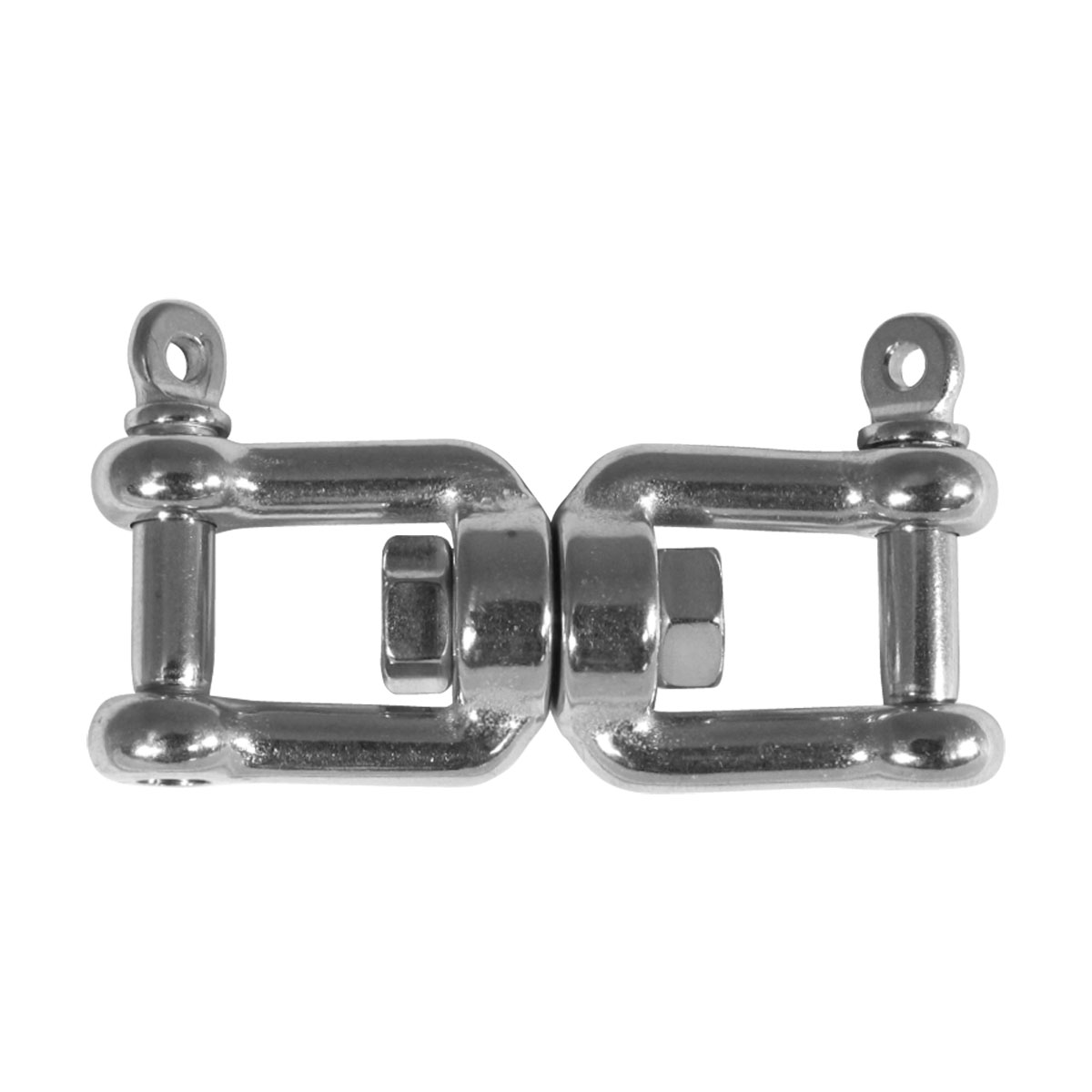

BLA Fork and Fork Swivels – 316 Grade Stainless Steel

Quality heavy duty tested bow shackle. Suitable for a wide range of applications. Features hot dipped galvanising for the body and pin, creating superior corrosion resistance and longevity, plus large tie off hole for pin security making them ideal for use in harsh marine environments. Manufactured to meet or exceed current American standard RR-C-271 Type IV Grade A. These specifications ensure that each shackle performs to the load rated and proof tested weights as stated with a safety factor of 6 to 1. Conveniently stamped with working load limit and bail size.

BLA CODE	BAIL SIZE MM	PIN DIA. MM	WORKING LOAD KG	BREAKING LOAD KG	D1 MM	E THREAD MM	W MM	B MM	L MM
143072	6	8	500	3000	4.8	5/16 – 18UNC	11.9	19.8	28.7
143074	8	10	750	4500	5.6	3/8 – 16UNC	13.5	21.3	31
143076	10	11	1000	6000	6.4	7/16 – 14UNC	16.8	26.2	36.3
143078	13	16	2000	12000	9.7	5/8 – 11UNC	20.6	33.3	47.8
143080	16	19	3250	19500	11.2	3/4 – 10UNC	26.9	42.9	60.5
143082	19	22	4750	28500	12.7	7/8 – 9UNC	31.8	50.8	71.4
143084	22	25	6500	39000	12.7	1 – 8UNC	36.6	57.9	84.1
143086	25	29	8500	51000	14.2	1 1/8 – 7UNC	42.9	68.3	95.3
